SAP ABAP Table DPR_TS_UI_TASK_DATA_T (Task Template Detail Data: External Display)

Hierarchy

☛ CPRXRPM (Software Component) SAP Portfolio and Project Management 6.0
   ⤷ PPM-PRO (Application Component) Project Management
     ⤷ DEVELOPMENT_PROJECTS_UI_LOGIC (Package) Project Management UI Data Formatting

Basic Data

Table Category	INTTAB	Structure
Structure	DPR_TS_UI_TASK_DATA_T	Table Relationship Diagram
Short Description	Task Template Detail Data: External Display

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	.INCLUDE	☐				0	0	API: Attributes of Task
2	.INCLUDE	☐				0	0	API: Key of Task in Template
3	TASK_GUID	☐	DPR_TV_OBJECT_GUID_CHAR	SYSUUID_C	CHAR	32	0	Unique Object Key
4	.INCLUDE	☐				0	0	API: Attributes of Task in Template
5	PARENT_GUID	☐	DPR_TV_OBJECT_GUID_CHAR	SYSUUID_C	CHAR	32	0	Unique Object Key
6	TASK_NUMBER	☐	DPR_TV_TASK_ID		CHAR	24	0	Task Number
7	DESCRIPTION	☐	DPR_TV_NAME	TEXT40	CHAR	40	0	Project Element Name
8	TASK_TYPE	☐	DPR_TV_TSK_TYPE	DPR_TYPE	CHAR	15	0	Task Type	DPR_TSK_TYPE
9	TASK_TYPE_TEXT	☐	DPR_TV_TSK_TYPE_TEXT	DPR_TEXT	CHAR	40	0	Text for Task Type
10	DURATION	☐	DPR_TV_DURATION		QUAN	4	0	Processing Time
11	DURATION_UNIT	☐	CGPL_DURATION_UNIT	MEINS	UNIT	3	0	Time Unit for Execution Duration	*
12	DURATION_UNIT_TEXT	☐	MSEHT	TEXT10	CHAR	10	0	Unit of Measurement Text (Maximum 10 Characters)
13	TOTAL_FLOAT	☐	DPR_TV_TOTAL_FLOAT		QUAN	8	0	Total Float
14	CALCULATED_EARLY_START_DATE	☐	DPR_TV_SCHEDULED_START_EARLY		DATS	8	0	Earliest Start Date
15	CALCULATED_EARLY_FINISH_DATE	☐	DPR_TV_SCHEDULED_FINISH_EARLY		DATS	8	0	Earliest Finish Date
16	CALCULATED_LATE_START_DATE	☐	DPR_TV_SCHEDULED_START_LATE		DATS	8	0	Latest Start Date
17	CALCULATED_LATE_FINISH_DATE	☐	DPR_TV_SCHEDULED_FINISH_LATE		DATS	8	0	Latest Finish Date
18	CALENDAR	☐	DPR_TV_CALENDAR_ID	WFCID	CHAR	2	0	Calendar	*
19	CALENDAR_TEXT	☐	SC_TXTFAC	TEXT40	CHAR	40	0	Factory calendar name
20	GROUPING	☐	DPR_TV_GROUPING		CHAR	40	0	Grouping
21	SEARCH_FIELD	☐	DPR_TV_SEARCH_FIELD		CHAR	40	0	Search Field
22	SORT_NUMBER	☐	DPR_TV_SORT_NUMBER		NUMC	5	0	Sort Number
23	PLANNED_WORK	☐	DPR_TV_WORK	DPR_WORK	QUAN	9	2	Work
24	PLANNED_WORK_UNIT	☐	DPR_TV_WORK_UNIT	MEINS	UNIT	3	0	Unit for Work	*
25	PLANNED_WORK_UNIT_TEXT	☐	MSEHT	TEXT10	CHAR	10	0	Unit of Measurement Text (Maximum 10 Characters)
26	RATE	☐	DPR_TV_RATE	DPR_RATE_TYPE	CHAR	15	0	Cost Rate/Revenue Rate for Project Costing	*
27	REVENUE_RATE	☐	DPR_TV_REVENUE_RATE_MANUAL	PREIS	CURR	11	2	Different Revenue
28	CURRENCY	☐	WAERS_CURC	WAERS	CUKY	5	0	Currency Key	*
29	COST_RATE	☐	DPR_TV_REVENUE_RATE_MANUAL	PREIS	CURR	11	2	Different Revenue
30	CURRENCY_COST	☐	WAERS_CURC	WAERS	CUKY	5	0	Currency Key	*
31	FLAG_MANDATORY	☐	DPR_TV_OBLIGATORY	DPR_BOOLEAN	CHAR	1	0	Mandatory
32	FLAG_APPROVAL_RELEVANT	☐	DPR_TV_APPROVAL_RELEVANT	DPR_BOOLEAN	CHAR	1	0	Relevant for Approval
33	FLAG_MILESTONE	☐	DPR_TV_MILESTONE	DPR_BOOLEAN	CHAR	1	0	Milestone Indicator
34	STAT_PROFILE_TSK	☐	DPR_TV_STAT_PROFILE_TSK	J_STSMA	CHAR	8	0	Status Profile Template	*
35	PROCESS	☐	DPR_TV_PROCESS	DPR_PROCESS	CHAR	15	0	Process	DPR_PROCESS
36	PROCESS_TEXT	☐	DPR_TV_PROCESS_TEXT	DPR_TEXT	CHAR	40	0	Process Description
37	MIRRORED_TASK	☐	DPR_TV_MIRRORED_TASK	DPR_BOOLEAN	CHAR	1	0	Mirrored Task
38	CREATED_BY	☐	DPR_TV_CREATED_BY	XUBNAME	CHAR	12	0	Created By	*
39	CREATED_BY_NAME	☐	DPR_TV_CREATED_BY_NAME	TEXT80	CHAR	80	0	Name of Person Who Created the Project Element
40	CREATED_ON	☐	DPR_TV_CREATED_ON_DATE		DATS	8	0	Created On
41	CHANGED_BY	☐	DPR_TV_CHANGED_BY	XUBNAME	CHAR	12	0	Last Changed By	*
42	CHANGED_BY_NAME	☐	DPR_TV_CHANGED_BY_NAME	TEXT80	CHAR	80	0	Name of Person Who Last Changed the Project Element
43	CHANGED_ON	☐	DPR_TV_CHANGED_ON_DATE		DATS	8	0	Changed On
44	STSMA	☐	J_STSMA	J_STSMA	CHAR	8	0	Status Profile	*
45	STATTXT	☐	DPR_TV_STATUS_TXT		STRG	0	0	Concatenated Status Text of an Object
46	SUMMARY_TASK	☐	DPR_TV_SUMMARY_TASK	DPR_BOOLEAN	CHAR	1	0	Summary Task
47	TASK_ID	☐	DPR_TV_TASK_ID		CHAR	24	0	Task Number
48	PRIORITY	☐	CGPL_PRIORITY	NUMC3	NUMC	3	0	Priority
49	TIME_UNIT	☐	DPR_TV_TIME_UNIT_MANUAL	MEINS	UNIT	3	0	Activity Unit for Deviating Costs and Revenues	*
50	TIME_UNIT_TEXT	☐	MSEHT	TEXT10	CHAR	10	0	Unit of Measurement Text (Maximum 10 Characters)
51	.INCLUDE	☐				0	0	Include for Extended Attributes for Task
52	EA_DUMMY	☐	DPR_TV_EA_DUMMY	CHAR1	CHAR	1	0	Dummy Data Element for Enhanced Proj. Mgmt Attributes
53	.INCLUDE	☐				0	0
54	.INCLUDE	☐				0	0
55	.INCLUDE	☐				0	0	General Fields for Detailed Data Views
56	.INCLUDE	☐				0	0	UI: Attributes of Person Responsible
57	RESP_ABSTR_ROLE	☐	DPR_TV_ABSTR_ROLE_GUID	SYSUUID_C	CHAR	32	0	Responsible Role
58	RESP_CONCR_ROLE	☐	DPR_TV_CONCR_ROLE_GUID	SYSUUID_C	CHAR	32	0	Responsible Resource
59	RESP_BUPAS	☐			STRG	0	0
60	ABSTR_ROLE	☐			STRG	0	0
61	STATUS_KEY	☐	DPR_TV_STATUS_CHANGE		CHAR	17	0	Change Status
62	LANGUAGE	☐	DPR_TV_LANGU_EXT	CHAR2	CHAR	2	0	External Language Key
63	LONGTEXT	☐	DPR_TV_LONG_TEXT		STRG	0	0	Object Description (Long Text)
64	SHORTTEXT	☐	DPR_TV_NAME	TEXT40	CHAR	40	0	Project Element Name
65	ORIG_LANGUAGE	☐	DPR_TV_LANGU_EXT	CHAR2	CHAR	2	0	External Language Key
66	ORIG_LONGTEXT	☐	DPR_TV_LONG_TEXT		STRG	0	0	Object Description (Long Text)
67	ORIG_SHORTTEXT	☐	DPR_TV_NAME	TEXT40	CHAR	40	0	Project Element Name
68	VIS_GRP_ORIG_LG	☐	WDUI_VISIBILITY	WDUI_VISIBILITY	NUMC	2	0	Web Dynpro: Visibility
69	VIS_GRP_ORIG_LG_INV	☐	WDUI_VISIBILITY	WDUI_VISIBILITY	NUMC	2	0	Web Dynpro: Visibility
70	VIS_BUT_ORIG_LG	☐	WDUI_VISIBILITY	WDUI_VISIBILITY	NUMC	2	0	Web Dynpro: Visibility
71	BUT_ORIG_LG_CHECKED	☐	BOOLE_D	BOOLE	CHAR	1	0	Data element for domain BOOLE: TRUE (='X') and FALSE (=' ')
72	HELP_LINK_BAS	☐			STRG	0	0
73	HELP_LINK_ADD	☐			STRG	0	0
74	HELP_LINK_DAW	☐			STRG	0	0
75	CURR_TIME_UNIT	☐			STRG	0	0
76	VIS_STATUS	☐	WDUI_VISIBILITY	WDUI_VISIBILITY	NUMC	2	0	Web Dynpro: Visibility
77	VIS_ADD	☐	WDUI_VISIBILITY	WDUI_VISIBILITY	NUMC	2	0	Web Dynpro: Visibility

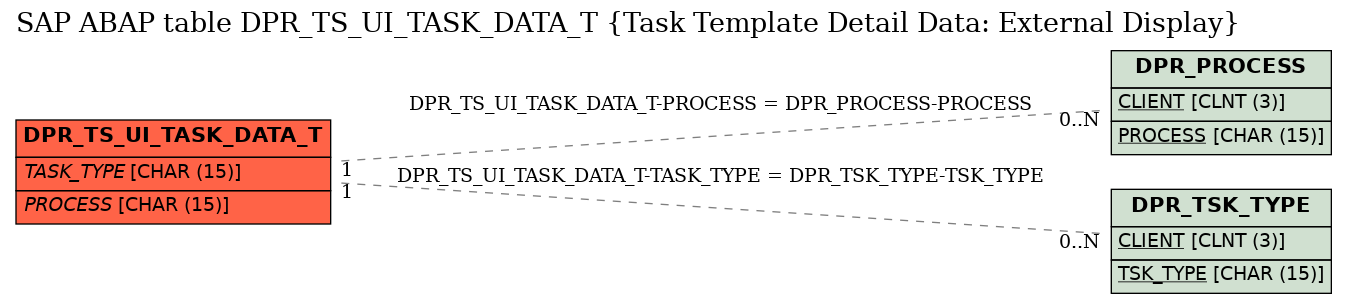

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	DPR_TS_UI_TASK_DATA_T	PROCESS	DPR_PROCESS	PROCESS	KEY	1	CN
2	DPR_TS_UI_TASK_DATA_T	TASK_TYPE	DPR_TSK_TYPE	TSK_TYPE	KEY	1	CN

History

Last changed by/on	SAP	20141109
SAP Release Created in	400
