SAP ABAP Table CRMV_SRV_INT (Generated Table for View)

Basic Data

Table Category	VIEW	General view structure

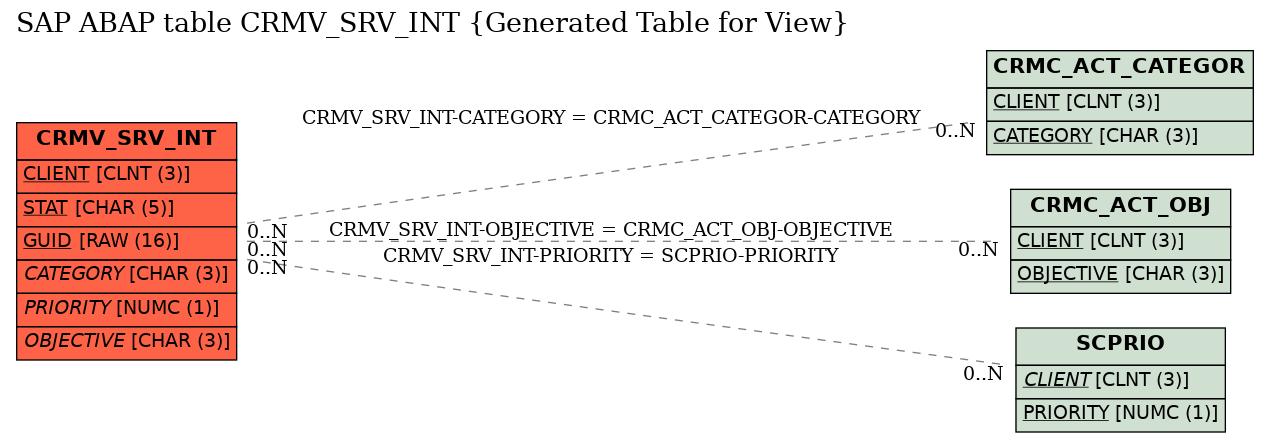

General view structure	CRMV_SRV_INT	Table Relationship Diagram
Short Description	Generated Table for View

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	CLIENT	☑	MANDT	MANDT	CLNT	3	0	Client
2	STAT	☑	CRM_J_STATUS	CRM_J_STATUS	CHAR	5	0	Object Status
3	GUID	☑	CRMT_OBJECT_GUID	SYSUUID	RAW	16	0	GUID of a CRM Order Object
4	OBJECT_ID	☐	CRMT_OBJECT_ID_DB	CRM_OBJECT_ID	CHAR	10	0	Transaction ID
5	PROCESS_TYPE	☐	CRMT_PROCESS_TYPE_DB	CRM_PROCESS_TYPE	CHAR	4	0	Business Transaction Type
6	POSTING_DATE	☐	CRMT_POSTING_DATE		DATS	8	0	Posting Date for a Business Transaction
7	DESCRIPTION	☐	CRMT_PROCESS_DESCRIPTION	CRM_PROCESS_DESCRIPTION	CHAR	40	0	Transaction Description
8	DESCR_LANGUAGE	☐	CRMT_PROCESS_DESCRIPTION_LANGU	SPRAS	LANG	1	0	Language Key of Description
9	CATEGORY	☐	CRMT_ACTIVITY_CATEGORY	CRM_ACTIVITY_CATEGORY	CHAR	3	0	Activity Category (Communication Type)	CRMC_ACT_CATEGOR
10	PRIORITY	☐	CRMT_PRIORITY	SC_PRIO	NUMC	1	0	Activity Priority	SCPRIO
11	OBJECTIVE	☐	CRMT_OBJECTIVE	CRM_OBJECTIVE	CHAR	3	0	Goal of an Activity	CRMC_ACT_OBJ
12	DIRECTION	☐	CRMT_DIRECTION	CRM_DIRECTION	CHAR	1	0	Direction of an Activity
13	OBJECT_TYPE	☐	CRMT_SUBOBJECT_CATEGORY_DB	CRM_OJ_NAME_PROCESS	CHAR	10	0	Business Trans. Cat.
14	CREATED_AT	☐	COMT_CREATED_AT_USR	COM_TSTMP	DEC	15	0	Created At (Output in User Time Zone)
15	CREATED_BY	☐	CRMT_CREATED_BY	UNAME	CHAR	12	0	User that Created the Transaction
16	CHANGED_AT	☐	COMT_CHANGED_AT_USR	COM_TSTMP	DEC	15	0	Changed At (Output in User Time Zone)
17	CHANGED_BY	☐	CRMT_CHANGED_BY	UNAME	CHAR	12	0	Transaction Last Changed By
18	DESCRIPTION_UC	☐	CRMT_PROCESS_DESCRIPTION_UC	CRM_PROCESS_DESCRIPTION_UC	CHAR	40	0	Transaction Description (Upper Case)
19	INACT	☐	CRM_J_INACT	CRM_J_INACT	CHAR	1	0	Indicator: Status Is Inactive

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	CRMV_SRV_INT	CATEGORY	CRMC_ACT_CATEGOR	CATEGORY
2	CRMV_SRV_INT	OBJECTIVE	CRMC_ACT_OBJ	OBJECTIVE
3	CRMV_SRV_INT	PRIORITY	SCPRIO	PRIORITY

History

Last changed by/on	SAP	20130604
SAP Release Created in
