SAP ABAP Table CME_ST_VALUEV (Generierte Tabelle zu einem View)

Basic Data

Table Category	VIEW	General view structure

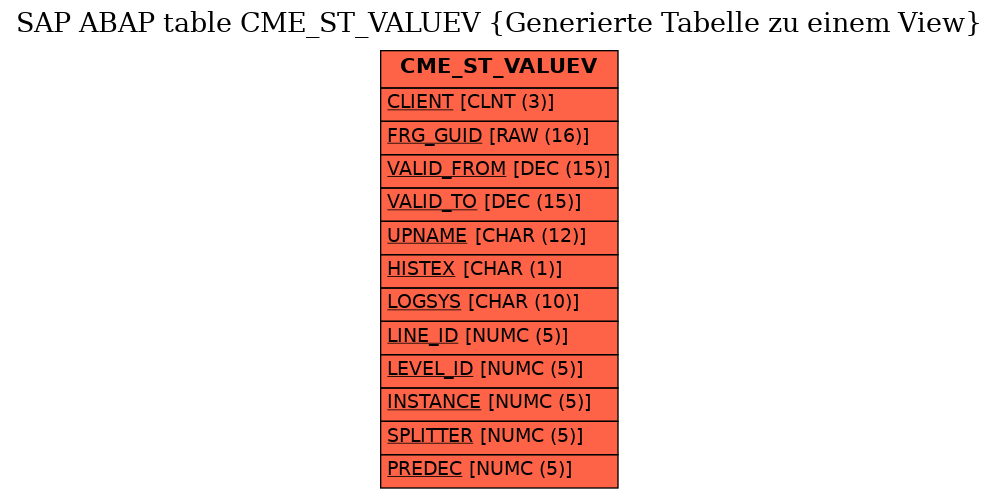

General view structure	CME_ST_VALUEV	Table Relationship Diagram
Short Description	Generierte Tabelle zu einem View

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	CLIENT	☑	MANDT	MANDT	CLNT	3	0	Client
2	FRG_GUID	☑	COMT_FRG_GUID	SYSUUID	RAW	16	0	Set GUID
3	VALID_FROM	☑	COMT_VALID_FROM	BCOS_TSTMP	DEC	15	0	Valid From (Time Stamp)
4	VALID_TO	☑	COMT_VALID_TO	BCOS_TSTMP	DEC	15	0	Valid To (Time Stamp)
5	UPNAME	☑	COMT_UPNAME	UNAME	CHAR	12	0	Name of the User Who Last Changed the Set
6	HISTEX	☑	COMT_HISTEX	COM_BOOLEAN	CHAR	1	0	History Exists
7	LOGSYS	☑	COMT_LOGSYS	LOGSYS	CHAR	10	0	Original System
8	LINE_ID	☑	DML_LINE_ID	DML_LINE_ID	NUMC	5	0	Row Key
9	LEVEL_ID	☑	CME_VAL_LEVEL	CME_VAL_LEVEL	NUMC	5	0	Level ID
10	INSTANCE	☑	CME_VAL_INSTANCE	CME_VAL_INSTANCE	NUMC	5	0	Instance for Complex Data Types
11	SPLITTER	☑	CME_VAL_SPLITTER	CME_VAL_SPLITTER	NUMC	5	0	Counter for Long Values and Value Data Set
12	PREDEC	☑	CME_VAL_PREDECESSOR	CME_VAL_PREDECESSOR	NUMC	5	0	Previous Value in Hierarchy
13	STRING	☐	CME_VAL_STRING	CME_VAL_STRING	SSTR	254	0	Character-Type Values
14	INT_FROM	☐	CME_VAL_INT_FROM	CME_VAL_INT_FROM	DEC	31	0	Integer Values, Lower Limit
15	INT_TO	☐	CME_VAL_INT_TO	CME_VAL_INT_TO	DEC	31	0	Integer Values, Upper Limit
16	FLT_FROM	☐	CME_VAL_FLOAT_FROM	CME_VAL_FLOAT_FROM	FLTP	16	16	Exponential Number, Lower Limit
17	FLT_TO	☐	CME_VAL_FLOAT_TO	CME_VAL_FLOAT_TO	FLTP	16	16	Exponential Number, Upper Limit
18	TMS_FROM	☐	CME_VAL_TIMES_FROM	CME_VAL_TIMES_FROM	DEC	15	0	Time Stamp, Lower Limit
19	TMS_TO	☐	CME_VAL_TIMES_TO	CME_VAL_TIMES_TO	DEC	15	0	Time Stamp, Upper Limit
20	PREPARED	☐	CME_VAL_PREPARED	CME_VAL_PREPARED	SSTR	254	0	Value
21	ACC_FROM	☐	CME_VAL_ACCURACY_FRO	CME_VAL_ACCURACY_FRO	NUMC	3	0	Input Accuracy of Lower Limit
22	ACC_TO	☐	CME_VAL_ACCURACY_TO	CME_VAL_ACCURACY_TO	NUMC	3	0	Input Accuracy of Upper Limit
23	UOM_FROM	☐	CME_VAL_UOM_FROM	CME_VAL_UOM_FROM	CHAR	3	0	Alternative Unit of Measure of Upper Limit
24	UOM_TO	☐	CME_VAL_UOM_TO	CME_VAL_UOM_TO	CHAR	3	0	Alternative Unit of Measure of Upper Limit
25	INTERV	☐	CME_VAL_INTERVAL	CME_VAL_INTERVAL	CHAR	1	0	Key Interval Limits
26	ORG_INPUT	☐	CME_VAL_ORG_INPUT	CME_VAL_ORG_INPUT	SSTR	254	0	Original Input
27	LANG_DATA	☐	CME_VAL_LANG_DATA	CME_VAL_LANG_DATA	RAW	16	0	Key Texts
28	ORDER_CNT	☐	CME_VAL_ORDER	CME_VAL_ORDER	NUMC	5	0	Sequence Counter
29	PREINST	☐	CME_VAL_PREINSTANCE	CME_VAL_PREINSTANCE	NUMC	5	0	Previous Instance
30	DEF_VALUE	☐	CME_VAL_DEFAULT	CME_VAL_DEFAULT	CHAR	1	0	Default Value
31	NODE	☐	CME_VAL_NODE	CME_VAL_NODE	CHAR	1	0	Nodes in Value Hierarchy
32	DOCUMENTS	☐	DML_DOCKEY	DML_DOCKEY	RAW	16	0	Document Key
33	ECM_COUNT	☐	DML_ECM_COUNT	DML_ECM_COUNT	NUMC	5	0	Change Management Counter
34	ECM_DEL	☐	DML_ECM_DEL	DML_ECM_DEL	CHAR	1	0	Deletion Indicator

History

Last changed by/on	SAP	20100421
SAP Release Created in
