SAP ABAP Table BDSCHKF15 (BDS: File Name at Last Checkout)

Hierarchy

☛ SEM-BW (Software Component) SEM-BW: Strategic Enterprise Management
   ⤷ FIN-SEM-CPM (Application Component) Corporate Performance Monitor
     ⤷ UMC (Package) CPM : Common Objects

Basic Data

Table Category	TRANSP	Transparent table

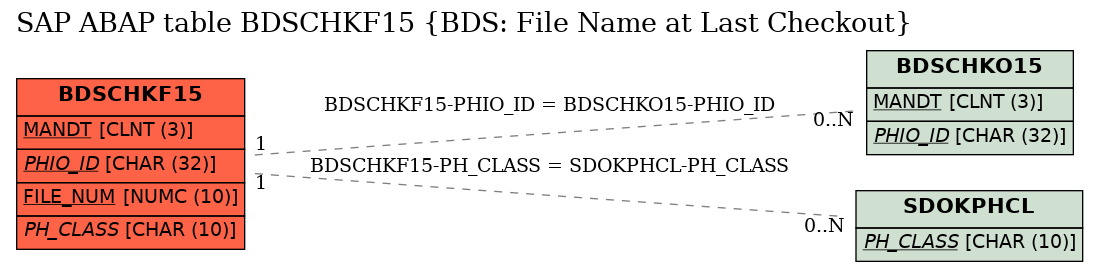

Transparent table	BDSCHKF15	Table Relationship Diagram
Short Description	BDS: File Name at Last Checkout

Delivery and Maintenance

Pool/cluster
Delivery Class	E	Control table, SAP and customer have separate key areas
Data Browser/Table View Maintenance		Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	MANDT	☑	MANDT	MANDT	CLNT	3	0	Client	*
2	PHIO_ID	☑	SDOK_PHID	SDOK_DOCID	CHAR	32	0	Physical document	BDSCHKO15
3	FILE_NUM	☑	SDOK_FNUMB	NUMC10	NUMC	10	0	Sequential number of file
4	PH_CLASS	☐	SDOK_PHCL	SDOK_CLASS	CHAR	10	0	Physical document class	SDOKPHCL
5	FILE_NAME	☐	SDOK_FILNM	SDOK_FILNM	CHAR	255	0	Relative storage location of physical document

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	BDSCHKF15	PHIO_ID	BDSCHKO15	PHIO_ID	KEY	1	CN
2	BDSCHKF15	PH_CLASS	SDOKPHCL	PH_CLASS	KEY	1	CN

History

Last changed by/on	SAP	20041006
SAP Release Created in
