SAP ABAP Table BAPICD_INSOBJ_PARTNER_LOCK_D (FS-CD: BAPI Structure IO-Partner Lock Data (Display))

Hierarchy

☛ INSURANCE (Software Component) SAP Insurance
   ⤷ FS-CD (Application Component) Collections/Disbursements
     ⤷ FSCDMAD_IO (Package) FS-CD: Insurance Object

Basic Data

Table Category	INTTAB	Structure

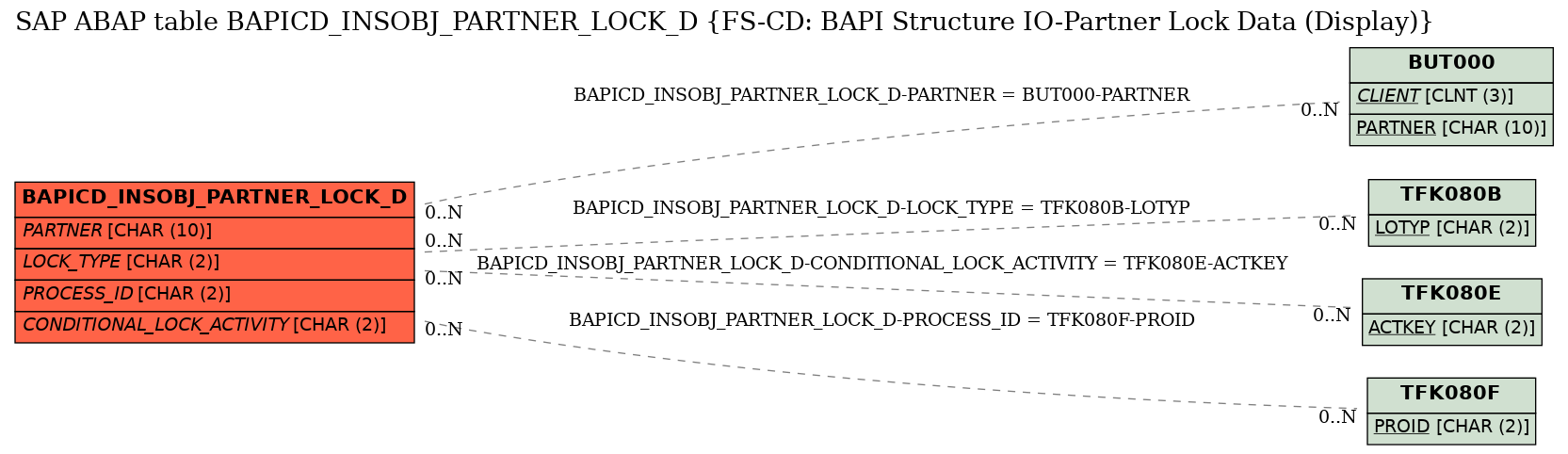

Structure	BAPICD_INSOBJ_PARTNER_LOCK_D	Table Relationship Diagram
Short Description	FS-CD: BAPI Structure IO-Partner Lock Data (Display)

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	PARTNER	☐	GPART_KK	BU_PARTNER	CHAR	10	0	Business Partner Number	BUT000
2	LOCK_TYPE	☐	LOTYP_KK	LOTYP_KK	CHAR	2	0	Lock Object Category	TFK080B
3	PROCESS_ID	☐	PROID_KK	PROID_KK	CHAR	2	0	Process Code (Example: Dunning, Payment)	TFK080F
4	LOCK_REASON	☐	LOCKR_KK	LOCKR_KK	CHAR	1	0	Lock Reason
5	FROM_DATE	☐	FDATE_C_KK	CHAR8	CHAR	8	0	Lock valid from
6	TO_DATE	☐	TDATE_C_KK	CHAR8	CHAR	8	0	Lock Valid To
7	CONDITIONAL_LOCK_OBJECT	☐	LOOBJ_KK	CHAR32	CHAR	32	0	Lock object
8	CONDITIONAL_LOCK_ACTIVITY	☐	ACTKEY_KK	ACTKEY_KK	CHAR	2	0	Activity key for conditional business locks	TFK080E
9	USERNAME_CREATE	☐	ERNAM	USNAM	CHAR	12	0	Name of Person who Created the Object
10	DATE_CREATE	☐	DATE_C_MD	CHAR8	CHAR	8	0	FS-CD: Date for Insurance Object in CHAR Format (YYYYMMDD)

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	BAPICD_INSOBJ_PARTNER_LOCK_D	CONDITIONAL_LOCK_ACTIVITY	TFK080E	ACTKEY
2	BAPICD_INSOBJ_PARTNER_LOCK_D	LOCK_TYPE	TFK080B	LOTYP
3	BAPICD_INSOBJ_PARTNER_LOCK_D	PARTNER	BUT000	PARTNER
4	BAPICD_INSOBJ_PARTNER_LOCK_D	PROCESS_ID	TFK080F	PROID

History

Last changed by/on	SAP	20110901
SAP Release Created in	464
