SAP ABAP Table BAPI_SHELF_INDEX (Material with Index and Placing Data)

Hierarchy

☛ EA-RETAIL (Software Component) SAP Enterprise Extension Retail
   ⤷ LO-MD-RA-MT (Application Component) Assortment Maintenance
     ⤷ WPLG_MAP (Package) SMP-MAP Connection

Basic Data

Table Category	INTTAB	Structure

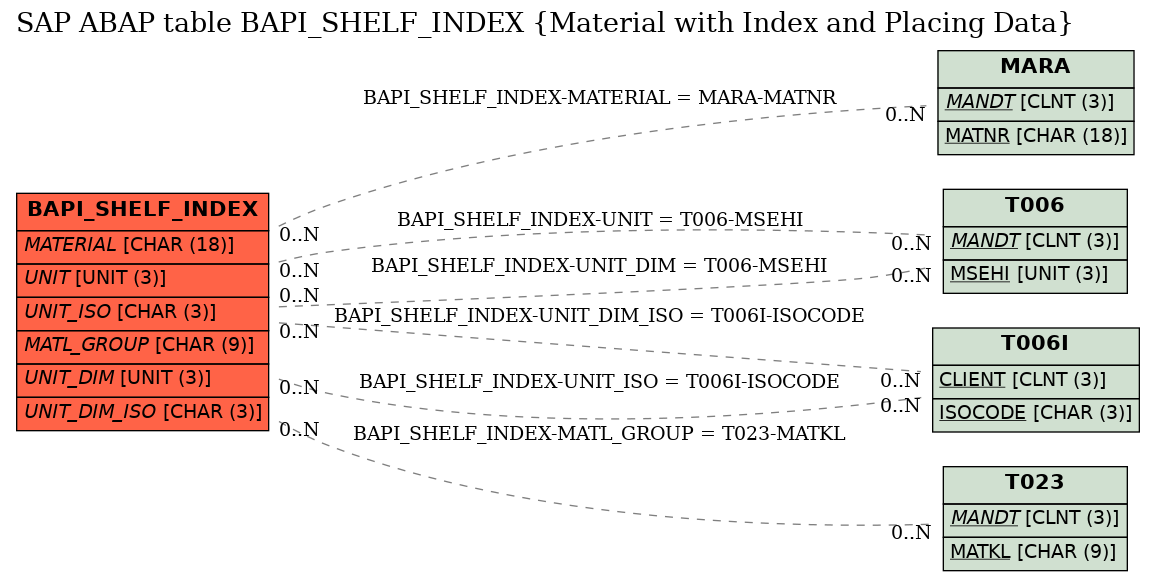

Structure	BAPI_SHELF_INDEX	Table Relationship Diagram
Short Description	Material with Index and Placing Data

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	MATERIAL	☐	MATNR	MATNR	CHAR	18	0	Material Number	MARA
2	MATL_DESC	☐	MAKTX	TEXT40	CHAR	40	0	Material description
3	UNIT	☐	MEINH	MEINS	UNIT	3	0	Unit of Measure for Display	T006
4	UNIT_ISO	☐	ISOCD_UNIT	ISOCD_UNIT	CHAR	3	0	ISO code for unit of measurement	T006I
5	EVALUATION_INDEX	☐	WPLG_INDEX		INT4	10	0	Index for the Valuation of Material Items on Shelves
6	ALIEN_CATEGORY	☐	WPLG_ALIEN_CATEGORY	XFELD	CHAR	1	0	Indicator: Material Category Different from LM Category
7	EAN_UPC	☐	EAN11	EAN11	CHAR	18	0	International Article Number (EAN/UPC)
8	MATL_CAT	☐	ATTYP	ATTYP	CHAR	2	0	Material Category
9	MATL_GROUP	☐	MATKL	MATKL	CHAR	9	0	Material Group	T023
10	HEIGHT	☐	HOEHE	MENG13	QUAN	13	3	Height
11	WIDTH	☐	BREIT	MENG13	QUAN	13	3	Width
12	LENGTH	☐	LAENG	MENG13	QUAN	13	3	Length
13	UNIT_DIM	☐	MEABM	MEINS	UNIT	3	0	Unit of Dimension for Length/Width/Height	T006
14	UNIT_DIM_ISO	☐	MEABM_ISO	ISOCD_UNIT	CHAR	3	0	Unit for length/breadth/height in ISO code	T006I
15	LAYMOD_NUM	☐	LAYMOD_NUM	NUMC6	NUMC	6	0	Sequence number in the layout module
16	LAYOUT_MOD	☐	LAYGR	LAYGR	CHAR	10	0	Layout Module	*
17	LAYMOD_VER	☐	LAYMOD_VER	LAYMOD_VER	NUMC	4	0	Layout Module Version	*
18	LAYMOD_VAR	☐	LAYMOD_VAR	LAYMOD_VAR	CHAR	4	0	Variant for Layout Module Version	*
19	EXCLUSION	☐	EX_FLAG	EX_FLAG	CHAR	1	0	Exclusion Flag
20	SORT_SEQ	☐	SORF1	NUMC10	NUMC	10	0	Sort sequence number in layout module
21	SHELF_BOARD_NUMBER	☐	SHELF_NO	NUMC10	NUMC	10	0	Shelf Section
22	FACING	☐	FACING	MENG13	QUAN	13	3	Number of materials placed next to one another
23	FRONT	☐	FACING_VERT	MENG13	QUAN	13	3	Number of materials positioned over one another
24	SHELF_QUANTITY_MAX	☐	SHF_QNT_MAX	MENG13	QUAN	13	3	Maximum shelf quantity
25	SHELF_QUANTITY_OPT	☐	SHF_QNT_OPT	MENG13	QUAN	13	3	Optimum shelf quantity
26	PRES_QNT	☐	PRES_QNT	MENG13	QUAN	13	3	Presentation quantity
27	MATERIAL_EXTERNAL	☐	MGV_MATERIAL_EXTERNAL	MATNR_EXT	CHAR	40	0	Long Material Number for MATERIAL Field
28	MATERIAL_GUID	☐	MGV_MATERIAL_GUID	MATNR_EGUID	CHAR	32	0	External GUID for MATERIAL Field
29	MATERIAL_VERSION	☐	MGV_MATERIAL_VERSION	MATNR_VERS	CHAR	10	0	Version Number for MATERIAL Field

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	BAPI_SHELF_INDEX	MATERIAL	MARA	MATNR
2	BAPI_SHELF_INDEX	MATL_GROUP	T023	MATKL
3	BAPI_SHELF_INDEX	UNIT	T006	MSEHI
4	BAPI_SHELF_INDEX	UNIT_DIM	T006	MSEHI
5	BAPI_SHELF_INDEX	UNIT_DIM_ISO	T006I	ISOCODE
6	BAPI_SHELF_INDEX	UNIT_ISO	T006I	ISOCODE

History

Last changed by/on	SAP	20040518
SAP Release Created in	110
