SAP ABAP Table BAPI_INSOBJECT_P_LOCK_D (FS-CD: BAPI Structure IO-Partner Lock Data (Display))
Hierarchy
☛ INSURANCE (Software Component) SAP Insurance
   ⤷ FS-CD (Application Component) Collections/Disbursements
     ⤷ FSCDMAD_IO (Package) FS-CD: Insurance Object
Basic Data
Table Category INTTAB    Structure

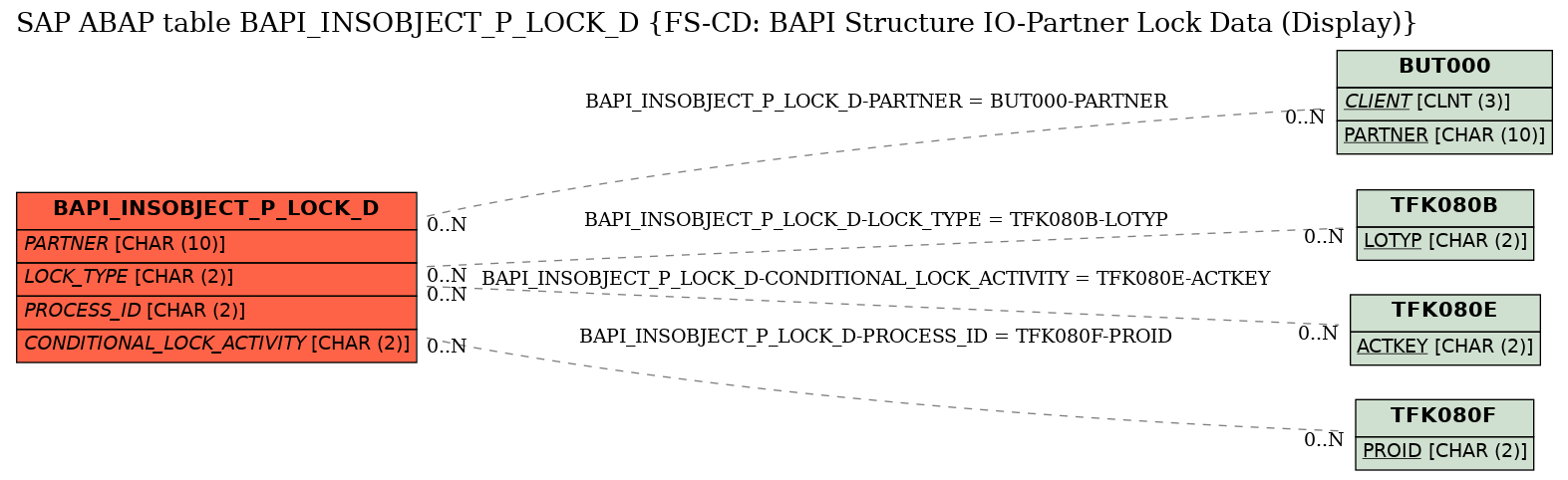

Structure BAPI_INSOBJECT_P_LOCK_D   Table Relationship Diagram
Short Description FS-CD: BAPI Structure IO-Partner Lock Data (Display)
Delivery and Maintenance
Pool/cluster
Delivery Class
Data Browser/Table View Maintenance     Display/Maintenance Allowed with Restrictions
Components

Field Key Data Element Domain Data
Type		 Length Decimal
Places		 Short Description Check
table
1 PARTNER GPART_KK BU_PARTNER CHAR 10   0   Business Partner Number BUT000
2 LOCK_TYPE LOTYP_KK LOTYP_KK CHAR 2   0   Lock Object Category TFK080B
3 PROCESS_ID PROID_KK PROID_KK CHAR 2   0   Process Code (Example: Dunning, Payment) TFK080F
4 LOCK_REASON LOCKR_KK LOCKR_KK CHAR 1   0   Lock Reason
5 FROM_DATE FDATE_C_KK CHAR8 CHAR 8   0   Lock valid from
6 TO_DATE TDATE_C_KK CHAR8 CHAR 8   0   Lock Valid To
7 CONDITIONAL_LOCK_OBJECT LOOBJ_KK CHAR32 CHAR 32   0   Lock object
8 CONDITIONAL_LOCK_ACTIVITY ACTKEY_KK ACTKEY_KK CHAR 2   0   Activity key for conditional business locks TFK080E
9 USERNAME_CREATE ERNAM USNAM CHAR 12   0   Name of Person who Created the Object
10 DATE_CREATE DATE_C_MD CHAR8 CHAR 8   0   FS-CD: Date for Insurance Object in CHAR Format (YYYYMMDD)
Foreign Keys
Source Table Source Column Foreign Table Foreign Column Dependency Factor Cardinality left Cardinality right
1 BAPI_INSOBJECT_P_LOCK_D CONDITIONAL_LOCK_ACTIVITY TFK080E ACTKEY
2 BAPI_INSOBJECT_P_LOCK_D LOCK_TYPE TFK080B LOTYP
3 BAPI_INSOBJECT_P_LOCK_D PARTNER BUT000 PARTNER
4 BAPI_INSOBJECT_P_LOCK_D PROCESS_ID TFK080F PROID
History
Last changed by/on SAP  20110901
SAP Release Created in 473
