SAP ABAP Table BAPI1171_K004 (PRICAT: Transfer structure catalog unit of meas. Pricat_K004)

Hierarchy

☛ EA-RETAIL (Software Component) SAP Enterprise Extension Retail
   ⤷ SD-EDI (Application Component) Electronic Data Interchange
     ⤷ VPRI (Package) Application Development R/3 Retail/CP EDI messages

Basic Data

Table Category	INTTAB	Structure

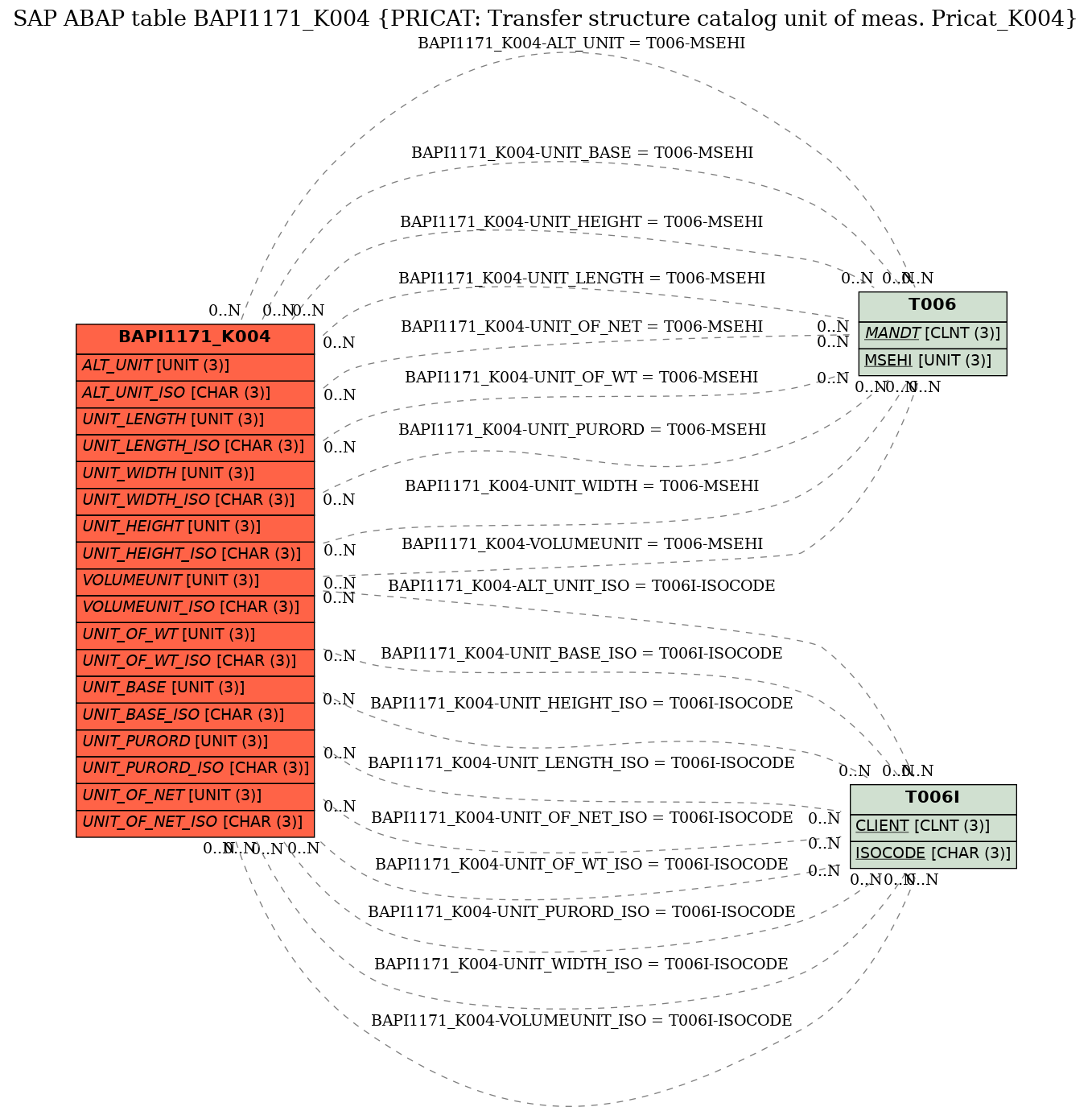

Structure	BAPI1171_K004	Table Relationship Diagram
Short Description	PRICAT: Transfer structure catalog unit of meas. Pricat_K004

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	PRODUCTGROUP	☐	PRIPRODUCTGROUP	PRIPRODUCTGROUP	CHAR	18	0	PRICAT: PGI or assortment module from Pricat IDoc	*
2	EAN_UPC_ALTUNIT	☐	PRIEANUNIT	PRIEAN	CHAR	35	0	PRICAT: EAN/UPC code of the unit of measure
3	VALIDITY_UNIT	☐	PRIVALIDITYU	DATUM	DATS	8	0	PRICAT: Date From Which the Unit Change is Valid
4	VALIDITY_BASE	☐	PRIVALIDITY	DATUM	DATS	8	0	Price Catalog Inbound Start of Validity Period
5	EAN_UPC_TYPE	☐	PRIEANTYP	PRIEANTYP	CHAR	2	0	Type of material identification
6	EAN_UPC_BASE	☐	PRIEANBASIS	PRIEAN	CHAR	35	0	PRICAT: EAN/UPC Code of the Base Unit of Measure
7	EAN_UPC_SUBLINE	☐	PRISUBLINE	PRIEAN	CHAR	35	0	PRICAT: Higher-level unit of measure of base unit of measure
8	QUANTITY_SUBLINE	☐	PRIQTYSUBL	PRINUMC15	NUMC	15	0	PRICAT: Quantity of lower-level material unit
9	QUANTITY_UNIT	☐	PRIQTYUNIT	PRINUMC15	NUMC	15	0	PRICAT: No. of base units contained
10	DELIVERY_UNIT_ID	☐	PRIDELUNIT	PRINUMC17	NUMC	17	0	PRICAT: Unit is delivery unit of the sender
11	INVOICE_UNIT_ID	☐	PRIINVUNIT	PRINUMC17	NUMC	17	0	PRICAT: Unit is billing unit of the sender
12	ORDER_UNIT_ID	☐	PRIORDUNIT	PRINUMC17	NUMC	17	0	PRICAT: Unit is the order unit of the sender
13	PACKAGE_TYPE	☐	PRIPACKTYP	PRICHAR17	CHAR	17	0	PRICAT: Packing type of the unit
14	PROD_ID_SENDER	☐	PRIPRODID	PRICHAR35	CHAR	35	0	PRICAT: Internal Naterial no. of Sender for Unit of Measure
15	STATE_OF_PROCES	☐	PRIBEARBSTAT	PRIBEARBSTAT	CHAR	2	0	PRICAT: Status of material/unit of measure processing
16	ITEM_NUMBER	☐	PRIPRODGRP	PRIPRODGRP	NUMC	6	0	PRICAT: Print sequence of the vendor
17	NON_PUBLIC	☐	PRINONPUBL	XFELD	CHAR	1	0	PRICAT: Customer-specific material or unit of measure (y/n)
18	ALT_UNIT	☐	LRMEI	MEINS	UNIT	3	0	Alternative Unit of Measure for Stockkeeping Unit	T006
19	ALT_UNIT_ISO	☐	LRMEI_ISO	ISOCD_UNIT	CHAR	3	0	Alternative unit of measure to stockkeeping unit in ISO code	T006I
20	NUMERATOR	☐	UMREZ	UMBSZ	DEC	5	0	Numerator for Conversion to Base Units of Measure
21	DENOMINATR	☐	UMREN	UMBSN	DEC	5	0	Denominator for conversion to base units of measure
22	LENGTH	☐	LAENG	MENG13	QUAN	13	3	Length
23	WIDTH	☐	BREIT	MENG13	QUAN	13	3	Width
24	HEIGHT	☐	HOEHE	MENG13	QUAN	13	3	Height
25	UNIT_LENGTH	☐	PRIUNITLN	MEINS	UNIT	3	0	PRICAT: Unit for length	T006
26	UNIT_LENGTH_ISO	☐	PRIUNITLNISO	ISOCD_UNIT	CHAR	3	0	PRICAT: Unit for length	T006I
27	UNIT_WIDTH	☐	PRIUNITWD	MEINS	UNIT	3	0	PRICAT: Unit for width	T006
28	UNIT_WIDTH_ISO	☐	PRIUNITWDISO	ISOCD_UNIT	CHAR	3	0	PRICAT: Unit for width in ISO	T006I
29	UNIT_HEIGHT	☐	PRIUNITHT	MEINS	UNIT	3	0	PRICAT: Unit for height	T006
30	UNIT_HEIGHT_ISO	☐	PRIUNITHTISO	ISOCD_UNIT	CHAR	3	0	PRICAT: Unit for height in ISO code	T006I
31	VOLUME	☐	VOLUM	MENG13	QUAN	13	3	Volume
32	VOLUMEUNIT	☐	VOLEH	MEINS	UNIT	3	0	Volume unit	T006
33	VOLUMEUNIT_ISO	☐	VOLEH_ISO	ISOCD_UNIT	CHAR	3	0	Volume unit in ISO code	T006I
34	GROSS_WT	☐	BRGEW	MENG13	QUAN	13	3	Gross weight
35	UNIT_OF_WT	☐	GEWEI	MEINS	UNIT	3	0	Weight Unit	T006
36	UNIT_OF_WT_ISO	☐	GEWEI_ISO	ISOCD_UNIT	CHAR	3	0	Unit of weight in ISO code	T006I
37	UNIT_BASE	☐	PRIUNITBASE	MEINS	UNIT	3	0	PRICAT: Lower-level unit of measure in a packing hierarchy	T006
38	UNIT_BASE_ISO	☐	PRIUNITBASE_ISO	ISOCD_UNIT	CHAR	3	0	PRICAT: Lower-lvl unit of measure in packing hierarchy (ISO)	T006I
39	UNIT_PURORD	☐	PRIUNITPURORD	MEINS	UNIT	3	0	PRICAT: Display unit for the order unit	T006
40	UNIT_PURORD_ISO	☐	PRIUNITPURORD_ISO	ISOCD_UNIT	CHAR	3	0	PRICAT: Display unit of the order unit in ISO code	T006I
41	NET_WEIGHT	☐	NTGEW	MENG13	QUAN	13	3	Net weight
42	UNIT_OF_NET	☐	PRINTGEWEI	MEINS	UNIT	3	0	Weight unit for net weight	T006
43	UNIT_OF_NET_ISO	☐	PRINTGEWEI_ISO	ISOCD_UNIT	CHAR	3	0	Weight unit for net weight in ISO code	T006I
44	HAZARD_LIMIT	☐	PRIHAZLIM	PRICHAR17	CHAR	17	0	PRICAT: Dangerous goods indicator limited quantity
45	BARCODE_ID	☐	PRIBARCODE	PRICHAR3	CHAR	3	0	PRICAT: Bar code indicator on package
46	PALLET_HANDL	☐	PRIPALHAND	PRICHAR17	CHAR	17	0	PRICAT: Pallet handling (disposable, reusable etc.)
47	PALLET_TYPE	☐	PRIPALTYPE	PRICHAR17	CHAR	17	0	PRICAT: Pallet type (ISO, Europallet etc.)
48	PALLET_LAYER	☐	PRIPALLAYR	PRINUMC18	NUMC	18	0	PRICAT: Number of layers per load container
49	PALLET_UNITS	☐	PRIPALUNIT	PRINUMC18	NUMC	18	0	PRICAT: Number of units per load carrier
50	PALLET_HIGHT	☐	PRIPALHIGH	PRINUMC18	NUMC	18	0	PRICAT: Pallet load height
51	UNIT_PALHT_ISO	☐	PRIPALHT_ISO	ISOCD_UNIT	CHAR	3	0	PRICAT: Unit for pallet height in ISO code	*
52	PALLET_STACK	☐	PRIPALSTAK	PRINUMC18	NUMC	18	0	PRICAT: Pallet stacking factor
53	NON_PUBLIC_ILN	☐	PRINONPUBLILN	PRICHAR35	CHAR	35	0	PRICAT: Cust.-spec. Material or Unit of Measure for this ILN
54	NON_PUBLIC_ILN2	☐	PRINONPUBLILN2	PRICHAR35	CHAR	35	0	PRICAT: Cust.-spec. Material or Unit of Measure for this ILN
55	NON_PUBLIC_ILN3	☐	PRINONPUBLILN3	PRICHAR35	CHAR	35	0	PRICAT: Cust.-spec. Material or Unit of Measure for this ILN
56	NON_PUBLIC_ILN4	☐	PRINONPUBLILN4	PRICHAR35	CHAR	35	0	PRICAT: Cust.-spec. Material or Unit of Measure for this ILN
57	NON_PUBLIC_ILN5	☐	PRINONPUBLILN5	PRICHAR35	CHAR	35	0	PRICAT: Cust.-spec. Material or Unit of Measure for this ILN

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	BAPI1171_K004	ALT_UNIT	T006	MSEHI
2	BAPI1171_K004	ALT_UNIT_ISO	T006I	ISOCODE
3	BAPI1171_K004	UNIT_BASE	T006	MSEHI
4	BAPI1171_K004	UNIT_BASE_ISO	T006I	ISOCODE
5	BAPI1171_K004	UNIT_HEIGHT	T006	MSEHI
6	BAPI1171_K004	UNIT_HEIGHT_ISO	T006I	ISOCODE
7	BAPI1171_K004	UNIT_LENGTH	T006	MSEHI
8	BAPI1171_K004	UNIT_LENGTH_ISO	T006I	ISOCODE
9	BAPI1171_K004	UNIT_OF_NET	T006	MSEHI
10	BAPI1171_K004	UNIT_OF_NET_ISO	T006I	ISOCODE
11	BAPI1171_K004	UNIT_OF_WT	T006	MSEHI
12	BAPI1171_K004	UNIT_OF_WT_ISO	T006I	ISOCODE
13	BAPI1171_K004	UNIT_PURORD	T006	MSEHI
14	BAPI1171_K004	UNIT_PURORD_ISO	T006I	ISOCODE
15	BAPI1171_K004	UNIT_WIDTH	T006	MSEHI
16	BAPI1171_K004	UNIT_WIDTH_ISO	T006I	ISOCODE
17	BAPI1171_K004	VOLUMEUNIT	T006	MSEHI
18	BAPI1171_K004	VOLUMEUNIT_ISO	T006I	ISOCODE

History

Last changed by/on	SAP	20020417
SAP Release Created in
