SAP ABAP Table AXT_MODEL_IL (Extensibilty GenIl Model)

Hierarchy

☛ WEBCUIF (Software Component) SAP Web UI Framework
   ⤷ CA-GTF-EEW (Application Component) Easy Enhancement Workbench
     ⤷ AXT_RUNTIME (Package) Extensibility Runtime components

Basic Data

Table Category	TRANSP	Transparent table

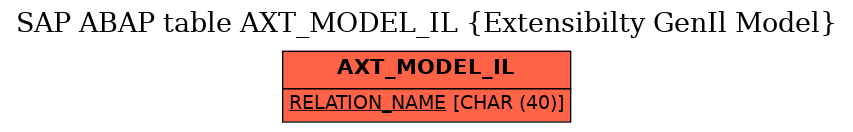

Transparent table	AXT_MODEL_IL	Table Relationship Diagram
Short Description	Extensibilty GenIl Model

Delivery and Maintenance

Pool/cluster
Delivery Class	E	Control table, SAP and customer have separate key areas
Data Browser/Table View Maintenance	X	Display/Maintenance Allowed

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	RELATION_NAME	☑	CRMT_RELATION_NAME	CRM_RELATION_NAME	CHAR	40	0	Relation Name
2	OBJECT_A	☐	CRMT_EXT_OBJ_A_NAME	CRM_OBJEXT_NAME	CHAR	30	0	External Name of Source Object
3	OBJECT_B	☐	CRMT_EXT_OBJ_B_NAME	CRM_OBJEXT_NAME	CHAR	30	0	External Name of Assigned Object
4	CARD_A	☐	CRMT_CARD_A	CRM_CARD	CHAR	1	0	Cardinality of Source Object
5	CARD_B	☐	CRMT_CARD_B	CRM_CARD	CHAR	1	0	Cardinality of the Assigned Object
6	RELATION_KIND	☐	CRMT_RELATION_KIND	CRM_RELATION_KIND	CHAR	1	0	Type of Object Relation
7	DO_NOT_BUFFER	☐	CRMT_GENIL_BOOLEAN	CRM_GENIL_BOOLEAN	CHAR	1	0	Logical Variable, Similar To ABAP_BOOL from Type Pool ABAP
8	APPL_GROUP	☐	AXT_APPLICATION_GROUP		CHAR	30	0	Application Group for Enhancement
9	COMPONENT	☐	CRMT_COMPONENT_NAME	CRM_COMPONENT_NAME	CHAR	6	0	Component Name	*

History

Last changed by/on	SAP	20110908
SAP Release Created in	701
