SAP ABAP Table /UI2/CHIP_CHDR (CHIP Cache: Header Information)
Hierarchy
☛
SAP_UI (Software Component) User Interface Technology
⤷
CA-UI2-INT-BE (Application Component) Backend Enablement
⤷
/UI2/ABAP_PAGE_BUILDER (Package) UI2: ABAP Pagebuilder
SAP_UI (Software Component) User Interface Technology⤷
CA-UI2-INT-BE (Application Component) Backend Enablement⤷
/UI2/ABAP_PAGE_BUILDER (Package) UI2: ABAP Pagebuilder
Basic Data
| Table Category | TRANSP | Transparent table |
| Transparent table | /UI2/CHIP_CHDR |

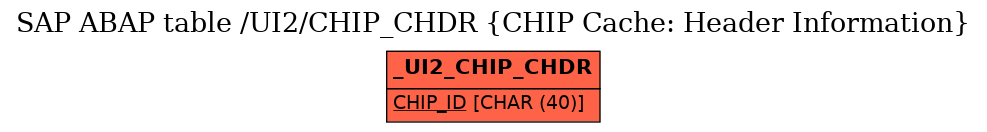

Table Relationship Diagram
|
| Short Description | CHIP Cache: Header Information |
Delivery and Maintenance
| Pool/cluster | ||
| Delivery Class | L | Table for storing temporary data, delivered empty |
| Data Browser/Table View Maintenance | X | Display/Maintenance Allowed |
Components
 |
Field | Key | Data Element | Domain | Data Type |
Length | Decimal Places |
Short Description | Check table |
|---|---|---|---|---|---|---|---|---|---|
| 1 |  CHIP_ID |
/UI2/CHIP_ID | CHAR | 40 | 0 | CHIP: Hashed key | |||
| 2 | .INCLUDE |
0 | 0 | CHIP Cache: Header Information | |||||
| 3 | CHIP_NAME |
/UI2/CHIP_NAME | /UI2/CHIP_NAME | SSTR | 255 | 0 | Web Dynpro ABAP: CHIP ID | ||
| 4 | ICON |
/UI2/CHIP_ICON | /UI2/CHIP_ICON | STRG | 0 | 0 | CHIP: Icon | ||
| 5 | HAS_INPORTS |
WDY_BOOLEAN | WDY_BOOLEAN | CHAR | 1 | 0 | Replacement for Real Boolean Type: 'X' == True '' == False | ||
| 6 | HAS_OUTPORTS |
WDY_BOOLEAN | WDY_BOOLEAN | CHAR | 1 | 0 | Replacement for Real Boolean Type: 'X' == True '' == False | ||
| 7 | PROVIDER |
/UI2/CHIP_PROVIDER_NAME | /UI2/CHIP_PROVIDER_NAME | CHAR | 30 | 0 | Name of CHIP Provider | ||
| 8 | CHIP_ORIGINAL |
/UI2/CHIP_NAME | /UI2/CHIP_NAME | SSTR | 255 | 0 | Web Dynpro ABAP: CHIP ID |
History
| Last changed by/on | SAP | 20131122 |
| SAP Release Created in | 100 |
