SAP ABAP Table /SDF/ZQLMD (SQL Monitor: Data)
Hierarchy
☛
ST-PI (Software Component) SAP Solution Tools Plug-In
⤷
SV-SMG-DIA (Application Component) Solution Manager Diagnostics
⤷
/SDF/ZQLM (Package) Package for SQL Monitor
ST-PI (Software Component) SAP Solution Tools Plug-In⤷
SV-SMG-DIA (Application Component) Solution Manager Diagnostics⤷
/SDF/ZQLM (Package) Package for SQL Monitor
Basic Data
| Table Category | TRANSP | Transparent table |
| Transparent table | /SDF/ZQLMD |

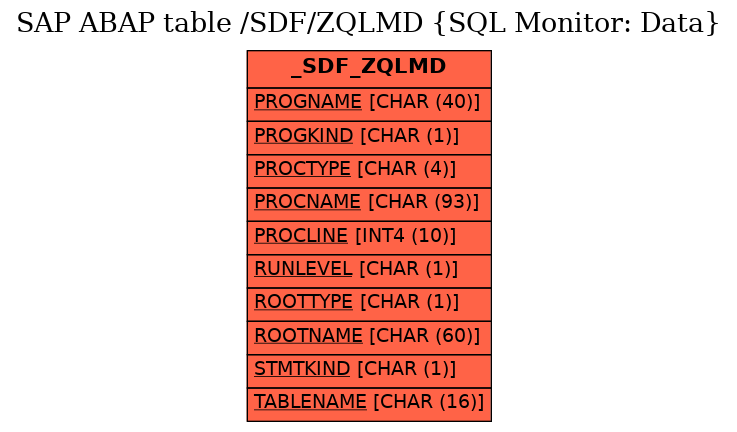

Table Relationship Diagram
|
| Short Description | SQL Monitor: Data |
Delivery and Maintenance
| Pool/cluster | ||
| Delivery Class | L | Table for storing temporary data, delivered empty |
| Data Browser/Table View Maintenance | Display/Maintenance Allowed with Restrictions |
Components
 |
Field | Key | Data Element | Domain | Data Type |
Length | Decimal Places |
Short Description | Check table |
|---|---|---|---|---|---|---|---|---|---|
| 1 |  .INCLUDE |
0 | 0 | SQL Monitor: Key (Source) | |||||
| 2 | PROGNAME |
PROGNAME | PROGNAME | CHAR | 40 | 0 | ABAP Program Name | ||
| 3 | PROGKIND |
/SDF/ZQLMPROGKIND | /SDF/ZQLMPROGKIND | CHAR | 1 | 0 | SQL Monitor: Program Kind | ||
| 4 | PROCTYPE |
/SDF/ZQLMPROCTYPE | CHAR | 4 | 0 | SQL Monitor: Processing Block Type | |||
| 5 | PROCNAME |
/SDF/ZQLMPROCNAME | CHAR | 93 | 0 | SQL Monitor: Processing Block Name | |||
| 6 | PROCLINE |
/SDF/ZQLMPROCLINE | INT4 | 10 | 0 | SQL Monitor: Line Number in Processing Block | |||
| 7 | .INCLUDE |
0 | 0 | SQL Monitor: Subkey (Internal) | |||||
| 8 | RUNLEVEL |
/SDF/ZQLMRUNLEVEL | /SDF/ZQLMRUNLEVEL | CHAR | 1 | 0 | SQL Monitor: Run Mode | ||
| 9 | ROOTTYPE |
/SDF/ZQLMROOTTYPE | /SDF/ZQLMROOTTYPE | CHAR | 1 | 0 | SQL Monitor: Request Type | ||
| 10 | ROOTNAME |
/SDF/ZQLMROOTNAME | CHAR | 60 | 0 | SQL Monitor: Request Entry Point (Transaction, etc.) | |||
| 11 | STMTKIND |
/SDF/ZQLMSTMTKIND | /SDF/ZQLMSTMTKIND | CHAR | 1 | 0 | SQL Monitor: SQL Operation | ||
| 12 | TABLENAME |
/SDF/ZQLMTABLENAME | DBOBJ_NAME | CHAR | 16 | 0 | SQL Monitor: Table Name | ||
| 13 | .INCLUDE |
0 | 0 | SQL Monitor: Payload | |||||
| 14 | XCNT |
/SDF/ZQLMEXECNT | INT4 | 10 | 0 | SQL Monitor: Total Number of Executions | |||
| 15 | .INCLUDE |
0 | 0 | SQL Monitor: Rollarea | |||||
| 16 | RCNT |
/SDF/ZQLMROLLAREACNT | INT4 | 10 | 0 | SQL Monitor: Internal Sessions Affected | |||
| 17 | XCNTRCNT |
/SDF/ZQLMEXECNTROLLAREACNT | /SDF/ZQLMDECIMAL3 | DEC | 31 | 3 | SQL Monitor: Executions per Internal Sessions | ||
| 18 | .INCLUDE |
0 | 0 | SQL Monitor: Runtime | |||||
| 19 | RTMIN |
/SDF/ZQLMRUNTIMEMIN | /SDF/ZQLMRUNTIME | DEC | 31 | 3 | SQL Monitor: Minimum Value of Execution Time | ||
| 20 | RTMAX |
/SDF/ZQLMRUNTIMEMAX | /SDF/ZQLMRUNTIME | DEC | 31 | 3 | SQL Monitor: Maximum Value of Execution Time | ||
| 21 | RTCNT |
/SDF/ZQLMRUNTIMECNT | INT4 | 10 | 0 | SQL Monitor: Count | |||
| 22 | RTSUM |
/SDF/ZQLMRUNTIMESUM | /SDF/ZQLMRUNTIME | DEC | 31 | 3 | SQL Monitor: Total Execution Time | ||
| 23 | RTSQS |
/SDF/ZQLMRUNTIMESQS | /SDF/ZQLMDECIMAL6 | DEC | 31 | 6 | SQL Monitor: Runtime Sum of Squares | ||
| 24 | RTAVG |
/SDF/ZQLMRUNTIMEAVG | /SDF/ZQLMRUNTIME | DEC | 31 | 3 | SQL Monitor: Mean Value of Execution Time | ||
| 25 | RTDEV |
/SDF/ZQLMRUNTIMEDEV | /SDF/ZQLMRUNTIME | DEC | 31 | 3 | SQL Monitor: Standard Deviation of Execution Time | ||
| 26 | .INCLUDE |
0 | 0 | SQL Monitor: DB Count | |||||
| 27 | DBMIN |
/SDF/ZQLMDBCOUNTMIN | INT4 | 10 | 0 | SQL Monitor: Minimum Value of Fetched / Modified Records | |||
| 28 | DBMAX |
/SDF/ZQLMDBCOUNTMAX | INT4 | 10 | 0 | SQL Monitor: Maximum Value of Fetched / Modified Records | |||
| 29 | DBCNT |
/SDF/ZQLMDBCOUNTCNT | INT4 | 10 | 0 | SQL Monitor: DB Count Count | |||
| 30 | DBSUM |
/SDF/ZQLMDBCOUNTSUM | /SDF/ZQLMINTEGER | DEC | 31 | 0 | SQL Monitor: Total Fetched or Modified Records | ||
| 31 | DBSQS |
/SDF/ZQLMDBCOUNTSQS | /SDF/ZQLMINTEGER | DEC | 31 | 0 | SQL Monitor: DB Count Sum of Squares | ||
| 32 | DBAVG |
/SDF/ZQLMDBCOUNTAVG | /SDF/ZQLMDECIMAL3 | DEC | 31 | 3 | SQL Monitor: Mean Value of Fetched / Modified Records | ||
| 33 | DBDEV |
/SDF/ZQLMDBCOUNTDEV | /SDF/ZQLMDECIMAL3 | DEC | 31 | 3 | SQL Monitor: Standard Deviation of Fetched / Modif. Records | ||
| 34 | DDATE |
RTMDDATE | SYDATS | DATS | 8 | 0 | Date for Runtime Monitor DATA entry | ||
| 35 | DTIME |
D_TIME | SYTIME | TIMS | 6 | 0 | Time for Runtime Monitor data entry | ||
| 36 | RTMCNT |
/SDF/ZQLMRTMCNT | INT4 | 10 | 0 | SQL Monitor: RTM Count |
History
| Last changed by/on | SAP | 20140922 |
| SAP Release Created in | 702 |
