SAP ABAP Table /SAPSRM/V_WD_TE (Generated Table for View)

Basic Data

Table Category	VIEW	General view structure

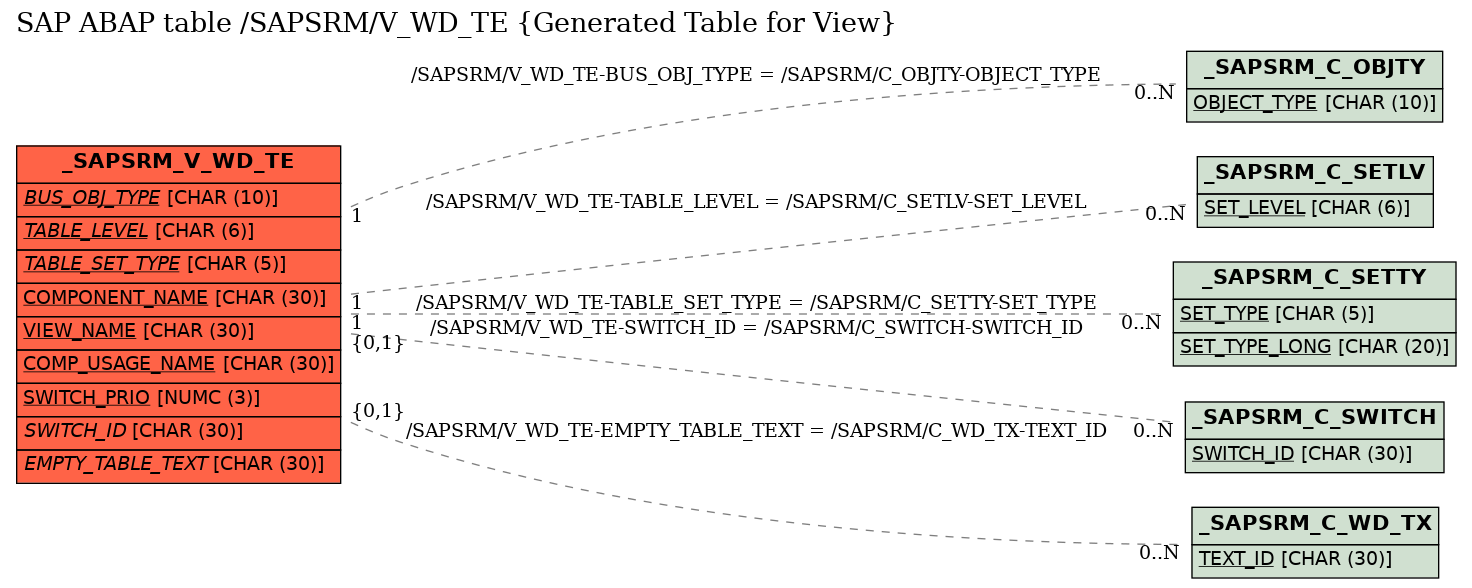

General view structure	/SAPSRM/V_WD_TE	Table Relationship Diagram
Short Description	Generated Table for View

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	X	Display/Maintenance Allowed

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	BUS_OBJ_TYPE	☑	/SAPSRM/OBJECT_TYPE_MD	/SAPSRM/OBJECT_TYPE_MD	CHAR	10	0	Type of an object used for metadata	/SAPSRM/C_OBJTY
2	TABLE_LEVEL	☑	/SAPSRM/PDO_META_SET_LEVEL	/SAPSRM/PDO_META_SET_LEVEL	CHAR	6	0	Set Level	/SAPSRM/C_SETLV
3	TABLE_SET_TYPE	☑	/SAPSRM/PDO_TABLE_SET_TYPE	/SAPSRM/PDO_SET_TYPE	CHAR	5	0	Business Object Set Type for Table Extensions	/SAPSRM/C_SETTY
4	COMPONENT_NAME	☑	WDY_COMPONENT_NAME		CHAR	30	0	Web Dynpro: Component Name
5	VIEW_NAME	☑	WDY_VIEW_NAME		CHAR	30	0	Web Dynpro: Name of a Web Dynpro View
6	COMP_USAGE_NAME	☑	WDY_COMPONENT_NAME		CHAR	30	0	Web Dynpro: Component Name
7	SWITCH_PRIO	☑	/SAPSRM/CUSTMZ_SWITCH_PRIO	NUM3	NUMC	3	0	Priority of Switched Table Entry
8	SWITCH_ID	☐	/SAPSRM/CUSTMZ_SWITCH_ID	/SAPSRM/CUSTMZ_SWITCH_ID	CHAR	30	0	Customizing Switch ID	/SAPSRM/C_SWITCH
9	INCL_EXCL_FLAG	☐	INCL_EXCL	INCL_EXCL	CHAR	1	0	Inclusive (=I) / Exclusive (=E)
10	DISPLAY_SEQUENCE	☐	/SAPSRM/CLL_DISPLAY_SEQUENCE	BBP_EXIT_BADI_CALL_SEQUENCE	CHAR	7	0	Display Sequence (Lowest Number First)
11	HIDE_ADD	☐	/SAPSRM/CLL_HIDE_ADD_FLAG	BOOLE	CHAR	1	0	Hide "Add" Button
12	HIDE_DELETE	☐	/SAPSRM/CLL_HIDE_DELETE_FLAG	BOOLE	CHAR	1	0	Hide "Delete" Button
13	DISP_EMPTY_ROWS	☐	/SAPSRM/CLL_DISP_EMPTY_ROWS_FL	BOOLE	CHAR	1	0	Display Empty Rows
14	EMPTY_TABLE_TEXT	☐	/SAPSRM/CLL_EMPT_TABLE_TEXT_ID	CHAR30	CHAR	30	0	ID of Text Displayed When Table is Empty	/SAPSRM/C_WD_TX
15	FOOTER_VISIBLE	☐	/SAPSRM/CLL_FOOTER_VISIBLE_FLA	BOOLE	CHAR	1	0	Table Footer is Visible
16	GRID_MODE	☐	/SAPSRM/WDUI_TABLE_GRID_MODE	/SAPSRM/WDUI_TABLE_GRID_MODE	NUMC	2	0	Web Dynpro: Table Grid Mode
17	ROW_COUNT	☐	/SAPSRM/CLL_TABLE_ROW_COUNT	CHAR4	CHAR	4	0	Table Row Count
18	SCROLL_COL_COUNT	☐	/SAPSRM/CLL_SCROLL_COL_COUNT	CHAR4	CHAR	4	0	Scroll Column Count
19	SELECTION_MODE	☐	/SAPSRM/WDUI_TSMODE	/SAPSRM/WDUI_TSMODE	NUMC	2	0	Web Dynpro:Table Selection Mode
20	VIS_ROW_COUNT	☐	/SAPSRM/CLL_VISIBLE_ROW_COUNT	CHAR4	CHAR	4	0	Visible Table Row Count
21	WIDTH	☐	/SAPSRM/CLL_TABLE_WIDTH	CHAR4	CHAR	4	0	Table Width
22	S_DESCRIPTION_20	☐	/SAPSRM/OBJECT_TYPE_MD_DESCR20	TEXT20	CHAR	20	0	Language-Dependent Key of Object Type
23	S_DESCRIPTION	☐	/SAPSRM/OBJECT_TYPE_MD_DESCR	TEXT40	CHAR	40	0	Description of Object Type
24	SET_LEVEL_LANG_K	☐	/SAPSRM/PDO_META_SET_LEVEL_LKY	TEXT10	CHAR	10	0	Language-Dep. Key of Metadata Set Level (Header or Item)
25	SET_LEVEL_DESCR	☐	/SAPSRM/PDO_META_SET_LEVEL_DES	TEXT20	CHAR	20	0	Description of Metadata Set Level (Header or Item)
26	SET_TYPE_DESCR	☐	/SAPSRM/PDO_SET_TYPE_DESCR	/SAPSRM/PDO_SET_TYPE_DESCR	CHAR	30	0	Description of Business Object Set Type
27	TEXT100	☐	TEXT100	TEXT100	CHAR	100	0	Text (100 characters)
28	ALIGNMENT	☐	WDUI_INPUT_FIELD_ALIGNMENT	WDUI_INPUT_FIELD_ALIGNMENT	NUMC	2	0	Web Dynpro: InputFieldAlignment
29	STATUS_DESCRPT	☐	/SAPSRM/CUSTMZ_SW_ST_DET_DESCR	TEXT65	CHAR	65	0	Current Status of Customizing Switch with Icon

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	/SAPSRM/V_WD_TE	BUS_OBJ_TYPE	/SAPSRM/C_OBJTY	OBJECT_TYPE	KEY	1	CN
2	/SAPSRM/V_WD_TE	EMPTY_TABLE_TEXT	/SAPSRM/C_WD_TX	TEXT_ID	REF	C	CN
3	/SAPSRM/V_WD_TE	SWITCH_ID	/SAPSRM/C_SWITCH	SWITCH_ID	KEY	C	CN
4	/SAPSRM/V_WD_TE	TABLE_LEVEL	/SAPSRM/C_SETLV	SET_LEVEL	KEY	1	CN
5	/SAPSRM/V_WD_TE	TABLE_SET_TYPE	/SAPSRM/C_SETTY	SET_TYPE	KEY	1	CN

History

Last changed by/on	SAP	20141013
SAP Release Created in
