SAP ABAP Table /SAPSRM/V_SW_WD (Generated Table for View)

Basic Data

Table Category	VIEW	General view structure

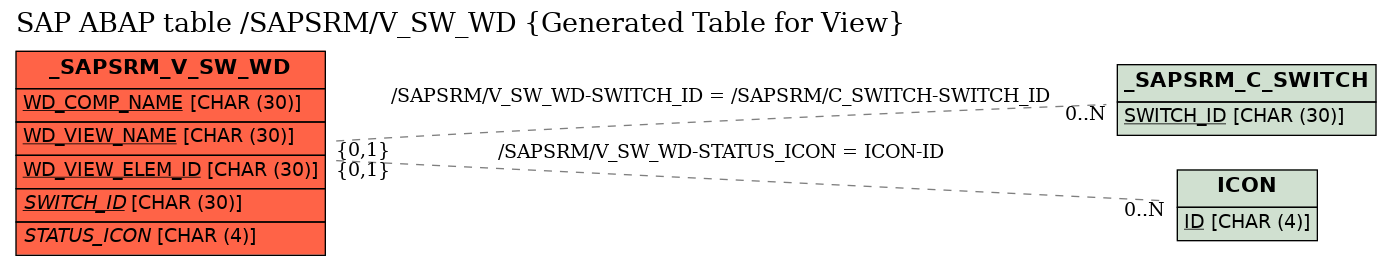

General view structure	/SAPSRM/V_SW_WD	Table Relationship Diagram
Short Description	Generated Table for View

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	X	Display/Maintenance Allowed

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	WD_COMP_NAME	☑	/SAPSRM/WD_COMP_NAME	CHAR30	CHAR	30	0	Web Dynpro Component Name
2	WD_VIEW_NAME	☑	/SAPSRM/WDVIEW_NAME	CHAR30	CHAR	30	0	Web Dynpro View Name
3	WD_VIEW_ELEM_ID	☑	/SAPSRM/WD_VIEW_ELEMENT_ID		CHAR	30	0	Web Dynpro View Element ID
4	SWITCH_ID	☑	/SAPSRM/CUSTMZ_SWITCH_ID	/SAPSRM/CUSTMZ_SWITCH_ID	CHAR	30	0	Customizing Switch ID	/SAPSRM/C_SWITCH
5	SWITCH_PRIO	☐	/SAPSRM/CUSTMZ_SWITCH_PRIO	NUM3	NUMC	3	0	Priority of Switched Table Entry
6	ACTION_TYPE	☐	/SAPSRM/CUSTMZ_SW_ACTION	/SAPSRM/CUSTMZ_SW_ACTION	CHAR	1	0	Possible Switch Actions for Web Dynpro View UI Elements
7	STATUS_DESCRPT	☐	/SAPSRM/CUSTMZ_SW_ST_DET_DESCR	TEXT65	CHAR	65	0	Current Status of Customizing Switch with Icon
8	STATUS_ICON	☐	/SAPSRM/CUSTMZ_SW_STATUS_ICON	ICON	CHAR	4	0	Icon Showing Activation Status of Customizing Switches	ICON
9	STATUS_W_O_ICON	☐	/SAPSRM/CUSTMZ_SW_ST_D_WO_ICON	TEXT60	CHAR	60	0	Text of Activation Status of Customizing Switch w/o Icon
10	ACT_INACT_ONLY	☐	BOOLE_D	BOOLE	CHAR	1	0	Data element for domain BOOLE: TRUE (='X') and FALSE (=' ')
11	NO_COMBINED_STAT	☐	BOOLE_D	BOOLE	CHAR	1	0	Data element for domain BOOLE: TRUE (='X') and FALSE (=' ')

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	/SAPSRM/V_SW_WD	STATUS_ICON	ICON	ID	REF	C	CN
2	/SAPSRM/V_SW_WD	SWITCH_ID	/SAPSRM/C_SWITCH	SWITCH_ID	KEY	C	CN

History

Last changed by/on	SAP	20141013
SAP Release Created in
