SAP ABAP Table /SAPSRM/V_MDFSDX (Generated Table for View)

Basic Data

Table Category	VIEW	General view structure

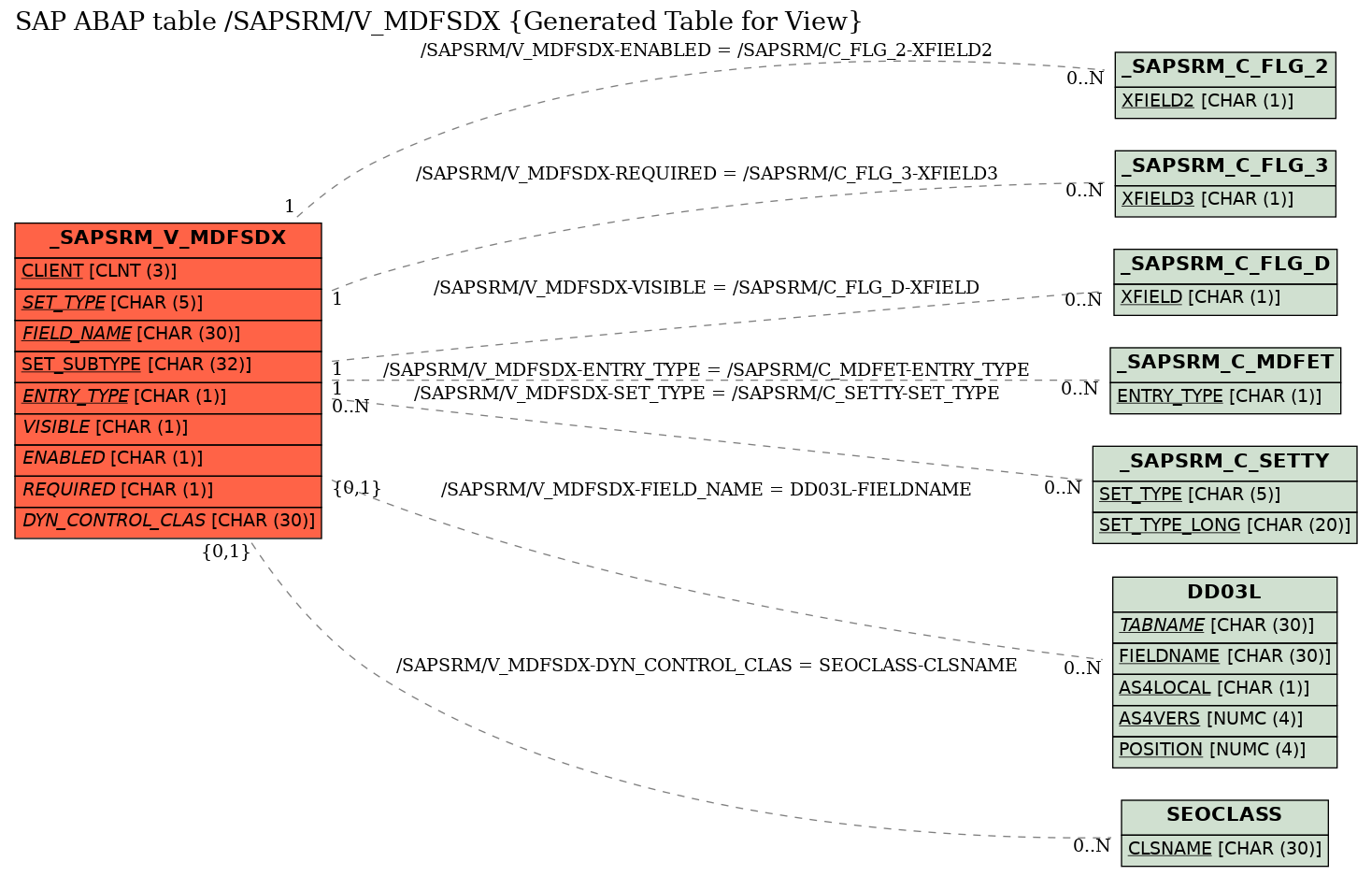

General view structure	/SAPSRM/V_MDFSDX	Table Relationship Diagram
Short Description	Generated Table for View

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	CLIENT	☑	EC_CLIENT	MANDT	CLNT	3	0	Client
2	SET_TYPE	☑	/SAPSRM/PDO_SET_TYPE	/SAPSRM/PDO_SET_TYPE	CHAR	5	0	Business Object Set Type	/SAPSRM/C_SETTY
3	FIELD_NAME	☑	/SAPSRM/PDO_META_FIELD_NAME	FDNAME	CHAR	30	0	Structure Field Name for Metadata Handling in PDO layer	DD03L
4	SET_SUBTYPE	☑	/SAPSRM/PDO_SET_SUBTYPE	CHAR32	CHAR	32	0	Universal Field to Set Subtypes in PDO Layer
5	ENTRY_TYPE	☑	/SAPSRM/PDO_META_ENTRY_TYPE	/SAPSRM/PDO_META_ENTRY_TYPE	CHAR	1	0	Entry Type	/SAPSRM/C_MDFET
6	VISIBLE	☐	/SAPSRM/PDO_META_VISIBLE	/SAPSRM/PDO_XFIELD_W_DEFAULTS	CHAR	1	0	PDO Field Property "Visible"	/SAPSRM/C_FLG_D
7	ENABLED	☐	/SAPSRM/PDO_META_EDITABLE	/SAPSRM/PDO_XFIELD_W_DEFAULTS	CHAR	1	0	PDO Field Property "Editable" (Enabled)	/SAPSRM/C_FLG_2
8	REQUIRED	☐	/SAPSRM/PDO_META_REQUIRED	/SAPSRM/PDO_XFIELD_W_DEFAULTS	CHAR	1	0	PDO Field Property "Required"	/SAPSRM/C_FLG_3
9	DYN_CONTROL_CLAS	☐	/SAPSRM/PDO_META_DYN_CLASS_NAM	SEOCLSNAME	CHAR	30	0	Name of Dynamic Control Class for Metadata Configuration	SEOCLASS
10	DYN_CONTROL_METH	☐	/SAPSRM/PDO_META_DYN_METH_NAME	CHAR61	CHAR	61	0	Full Name of Dynamic Control Method for Metadata Config.
11	SET_TYPE_DESCR	☐	/SAPSRM/PDO_SET_TYPE_DESCR	/SAPSRM/PDO_SET_TYPE_DESCR	CHAR	30	0	Description of Business Object Set Type
12	FIELD_DESCR	☐	/SAPSRM/PDO_MD_FIELD_DESCR	AS4TEXT	CHAR	60	0	Description of Structure Field
13	SET_SUBTYPE_DESC	☐	/SAPSRM/PDO_SET_SUBTYPE_DESCR	TEXT60	CHAR	60	0	Set Subtype Description
14	ENTRY_T_LANG_KEY	☐	/SAPSRM/PDO_META_ENTRY_T_L_KEY	TEXT10	CHAR	10	0	Language Key of Entry Type
15	ENTRY_T_DESCR	☐	/SAPSRM/PDO_META_ENTRY_T_DESCR	TEXT40	CHAR	40	0	Long Description of Entry Type
16	XFIELD_LANG_KEY	☐	/SAPSRM/PDO_META_VISIBLE_L_KEY	/SAPSRM/PDO_XFIELD_W_DEF_L_KEY	CHAR	10	0	Language-Dependent Key of Visible Checkbox for Fields
17	XFIELD_DESCR	☐	/SAPSRM/PDO_XFIELD_W_DEF_DESCR	TEXT30	CHAR	30	0	Desc. of Yes/No Checkbox with Modifiable Default Values
18	XFIELD2_LANG_KEY	☐	/SAPSRM/PDO_META_ENABLED_L_KEY	/SAPSRM/PDO_XFIELD_W_DEF_L_KEY	CHAR	10	0	Language-Dependent Key of Enabled Checkbox for Fields
19	XFIELD2_DESCR	☐	/SAPSRM/PDO_XFIELD_W_DEF_DESCR	TEXT30	CHAR	30	0	Desc. of Yes/No Checkbox with Modifiable Default Values
20	XFIELD3_LANG_KEY	☐	/SAPSRM/PDO_META_REQUIRD_L_KEY	/SAPSRM/PDO_XFIELD_W_DEF_L_KEY	CHAR	10	0	Language-Dependent Key of Required Checkbox for Fields
21	XFIELD3_DESCR	☐	/SAPSRM/PDO_XFIELD_W_DEF_DESCR	TEXT30	CHAR	30	0	Desc. of Yes/No Checkbox with Modifiable Default Values
22	DESCRIPT	☐	/SAPSRM/PDO_MD_DYN_SEODESCR	AS4TEXT	CHAR	60	0	Description of Dynamic Metadata Control Class
23	METHOD_DESCR	☐	/SAPSRM/PDO_MD_DYN_SEOMTDDESCR	AS4TEXT	CHAR	60	0	Description of Dynamic Metadata Control Method

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	/SAPSRM/V_MDFSDX	DYN_CONTROL_CLAS	SEOCLASS	CLSNAME	KEY	C	CN
2	/SAPSRM/V_MDFSDX	ENABLED	/SAPSRM/C_FLG_2	XFIELD2	REF	1	CN
3	/SAPSRM/V_MDFSDX	ENTRY_TYPE	/SAPSRM/C_MDFET	ENTRY_TYPE	KEY	1	CN
4	/SAPSRM/V_MDFSDX	FIELD_NAME	DD03L	FIELDNAME	KEY	C	CN
5	/SAPSRM/V_MDFSDX	REQUIRED	/SAPSRM/C_FLG_3	XFIELD3	REF	1	CN
6	/SAPSRM/V_MDFSDX	SET_TYPE	/SAPSRM/C_SETTY	SET_TYPE
7	/SAPSRM/V_MDFSDX	VISIBLE	/SAPSRM/C_FLG_D	XFIELD	REF	1	CN

History

Last changed by/on	SAP	20130528
SAP Release Created in
