SAP ABAP Table /SAPSRM/V_MDF_H1 (Generated Table for View)

Basic Data

Table Category	VIEW	General view structure

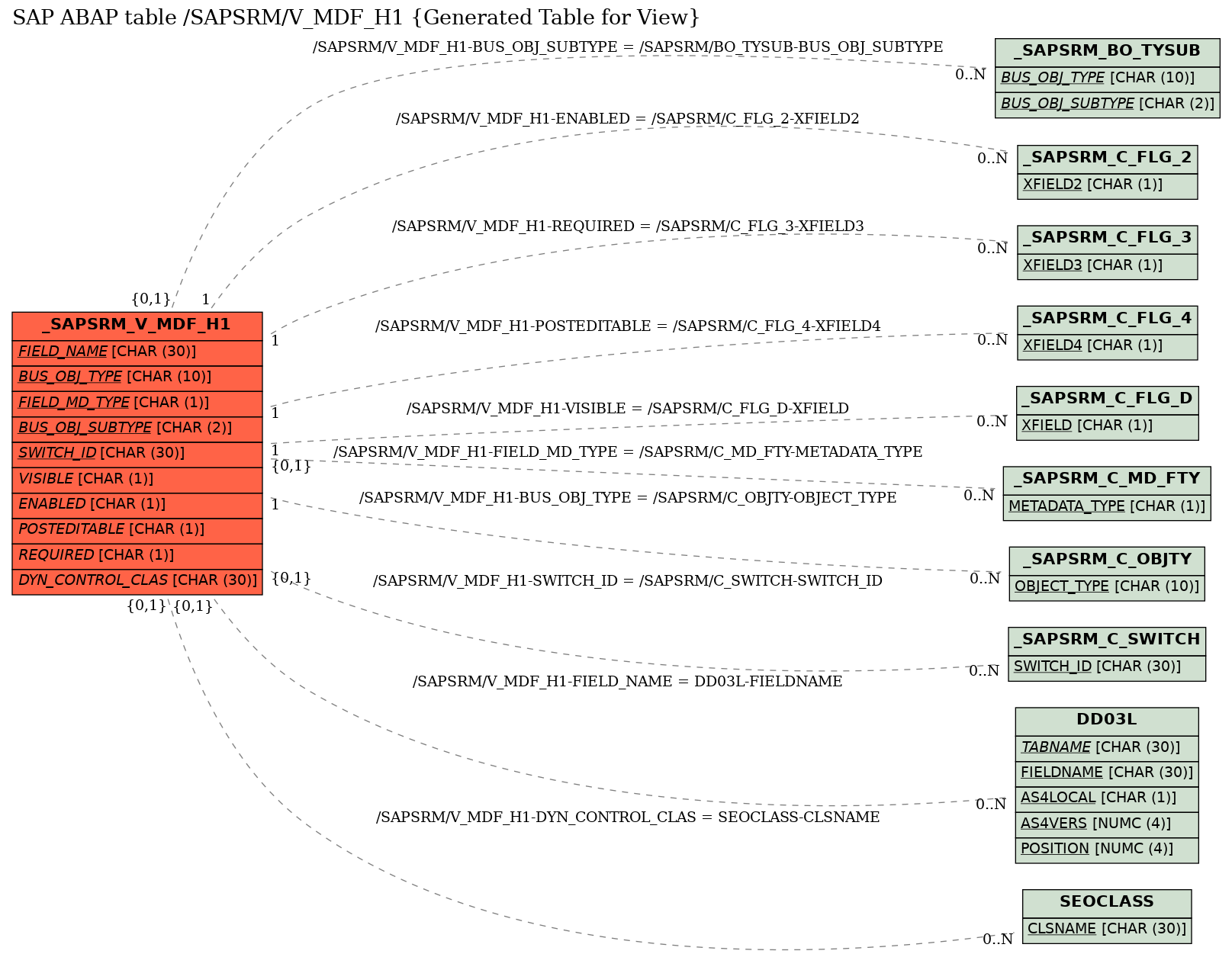

General view structure	/SAPSRM/V_MDF_H1	Table Relationship Diagram
Short Description	Generated Table for View

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	X	Display/Maintenance Allowed

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	FIELD_NAME	☑	/SAPSRM/PDO_META_FIELD_NAME	FDNAME	CHAR	30	0	Structure Field Name for Metadata Handling in PDO layer	DD03L
2	BUS_OBJ_TYPE	☑	/SAPSRM/OBJECT_TYPE_MD	/SAPSRM/OBJECT_TYPE_MD	CHAR	10	0	Type of an object used for metadata	/SAPSRM/C_OBJTY
3	FIELD_MD_TYPE	☑	/SAPSRM/PDO_META_FIELD_MD_TYPE	/SAPSRM/PDO_META_FIELD_MD_TYPE	CHAR	1	0	Metadata Field Type	/SAPSRM/C_MD_FTY
4	BUS_OBJ_SUBTYPE	☑	/SAPSRM/PDO_BO_SUBTYPE_0	/SAPSRM/PDO_BO_SUBTYPE_0	CHAR	2	0	Specification of a Purchasing Doc.(' ' replaced by '0')	/SAPSRM/BO_TYSUB
5	SWITCH_ID	☑	/SAPSRM/CUSTMZ_SWITCH_ID	/SAPSRM/CUSTMZ_SWITCH_ID	CHAR	30	0	Customizing Switch ID	/SAPSRM/C_SWITCH
6	SWITCH_PRIO	☐	/SAPSRM/CUSTMZ_SWITCH_PRIO	NUM3	NUMC	3	0	Priority of Switched Table Entry
7	VISIBLE	☐	/SAPSRM/PDO_META_VISIBLE	/SAPSRM/PDO_XFIELD_W_DEFAULTS	CHAR	1	0	PDO Field Property "Visible"	/SAPSRM/C_FLG_D
8	ENABLED	☐	/SAPSRM/PDO_META_EDITABLE	/SAPSRM/PDO_XFIELD_W_DEFAULTS	CHAR	1	0	PDO Field Property "Editable" (Enabled)	/SAPSRM/C_FLG_2
9	POSTEDITABLE	☐	/SAPSRM/PDO_META_POSTEDITABLE	/SAPSRM/PDO_XFIELD_W_DEFAULTS	CHAR	1	0	PDO Field Property "Posteditable" when Ordered/Released	/SAPSRM/C_FLG_4
10	REQUIRED	☐	/SAPSRM/PDO_META_REQUIRED	/SAPSRM/PDO_XFIELD_W_DEFAULTS	CHAR	1	0	PDO Field Property "Required"	/SAPSRM/C_FLG_3
11	DYN_CONTROL_CLAS	☐	/SAPSRM/PDO_META_DYN_CLASS_NAM	SEOCLSNAME	CHAR	30	0	Name of Dynamic Control Class for Metadata Configuration	SEOCLASS
12	DYN_CONTROL_METH	☐	/SAPSRM/PDO_META_DYN_METH_NAME	CHAR61	CHAR	61	0	Full Name of Dynamic Control Method for Metadata Config.
13	FIELD_DESCR	☐	/SAPSRM/PDO_MD_FIELD_DESCR	AS4TEXT	CHAR	60	0	Description of Structure Field
14	S_DESCRIPTION_20	☐	/SAPSRM/OBJECT_TYPE_MD_DESCR20	TEXT20	CHAR	20	0	Language-Dependent Key of Object Type
15	S_DESCRIPTION	☐	/SAPSRM/OBJECT_TYPE_MD_DESCR	TEXT40	CHAR	40	0	Description of Object Type
16	BO_SUBTYPE_DES_S	☐	/SAPSRM/PDO_BO_SUBTYPE_DESCR	TEXT20	CHAR	20	0	Short Description of a Business Object Subtype
17	BO_SUBTYPE_DES_L	☐	/SAPSRM/PDO_BO_SUBTYPE_DESCR_L	TEXT40	CHAR	40	0	Long Description of a Business Object Subtype
18	METADATA_TY_DES	☐	/SAPSRM/PDO_META_FLD_MD_TY_DES	TEXT20	CHAR	20	0	Short Description of Type of Field Metadata
19	METADATA_TY_DESL	☐	/SAPSRM/PDO_META_FLD_MD_TY_DEL	TEXT40	CHAR	40	0	Long Description of GType of Field Metadata
20	XFIELD_LANG_KEY	☐	/SAPSRM/PDO_META_VISIBLE_L_KEY	/SAPSRM/PDO_XFIELD_W_DEF_L_KEY	CHAR	10	0	Language-Dependent Key of Visible Checkbox for Fields
21	XFIELD_DESCR	☐	/SAPSRM/PDO_XFIELD_W_DEF_DESCR	TEXT30	CHAR	30	0	Desc. of Yes/No Checkbox with Modifiable Default Values
22	XFIELD2_LANG_KEY	☐	/SAPSRM/PDO_META_EDITABL_L_KEY	/SAPSRM/PDO_XFIELD_W_DEF_L_KEY	CHAR	10	0	Language-Dependent Key of Editable Checkbox for Fields
23	XFIELD2_DESCR	☐	/SAPSRM/PDO_XFIELD_W_DEF_DESCR	TEXT30	CHAR	30	0	Desc. of Yes/No Checkbox with Modifiable Default Values
24	XFIELD3_LANG_KEY	☐	/SAPSRM/PDO_META_REQUIRD_L_KEY	/SAPSRM/PDO_XFIELD_W_DEF_L_KEY	CHAR	10	0	Language-Dependent Key of Required Checkbox for Fields
25	XFIELD3_DESCR	☐	/SAPSRM/PDO_XFIELD_W_DEF_DESCR	TEXT30	CHAR	30	0	Desc. of Yes/No Checkbox with Modifiable Default Values
26	XFIELD4_LANG_KEY	☐	/SAPSRM/PDO_META_POSTEDI_L_KEY	/SAPSRM/PDO_XFIELD_W_DEF_L_KEY	CHAR	10	0	Language-Dependent Key of Posteditable Checkbox for Fields
27	XFIELD4_DESCR	☐	/SAPSRM/PDO_XFIELD_W_DEF_DESCR	TEXT30	CHAR	30	0	Desc. of Yes/No Checkbox with Modifiable Default Values
28	DESCRIPT	☐	SEODESCR	AS4TEXT	CHAR	60	0	Short Description
29	METHOD_DESCR	☐	/SAPSRM/PDO_MD_DYN_SEOMTDDESCR	AS4TEXT	CHAR	60	0	Description of Dynamic Metadata Control Method
30	STATUS_DESCRPT	☐	/SAPSRM/CUSTMZ_SW_ST_DET_DESCR	TEXT65	CHAR	65	0	Current Status of Customizing Switch with Icon

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	/SAPSRM/V_MDF_H1	BUS_OBJ_SUBTYPE	/SAPSRM/BO_TYSUB	BUS_OBJ_SUBTYPE	KEY	C	CN
2	/SAPSRM/V_MDF_H1	BUS_OBJ_TYPE	/SAPSRM/C_OBJTY	OBJECT_TYPE	KEY	1	CN
3	/SAPSRM/V_MDF_H1	DYN_CONTROL_CLAS	SEOCLASS	CLSNAME	REF	C	CN
4	/SAPSRM/V_MDF_H1	ENABLED	/SAPSRM/C_FLG_2	XFIELD2	REF	1	CN
5	/SAPSRM/V_MDF_H1	FIELD_MD_TYPE	/SAPSRM/C_MD_FTY	METADATA_TYPE	KEY	C	CN
6	/SAPSRM/V_MDF_H1	FIELD_NAME	DD03L	FIELDNAME	KEY	C	CN
7	/SAPSRM/V_MDF_H1	POSTEDITABLE	/SAPSRM/C_FLG_4	XFIELD4	REF	1	CN
8	/SAPSRM/V_MDF_H1	REQUIRED	/SAPSRM/C_FLG_3	XFIELD3	REF	1	CN
9	/SAPSRM/V_MDF_H1	SWITCH_ID	/SAPSRM/C_SWITCH	SWITCH_ID	KEY	C	CN
10	/SAPSRM/V_MDF_H1	VISIBLE	/SAPSRM/C_FLG_D	XFIELD	REF	1	CN

History

Last changed by/on	SAP	20141013
SAP Release Created in
