SAP ABAP Table /SAPSRM/V_MDASD (Generated Table for View)

Basic Data

Table Category	VIEW	General view structure

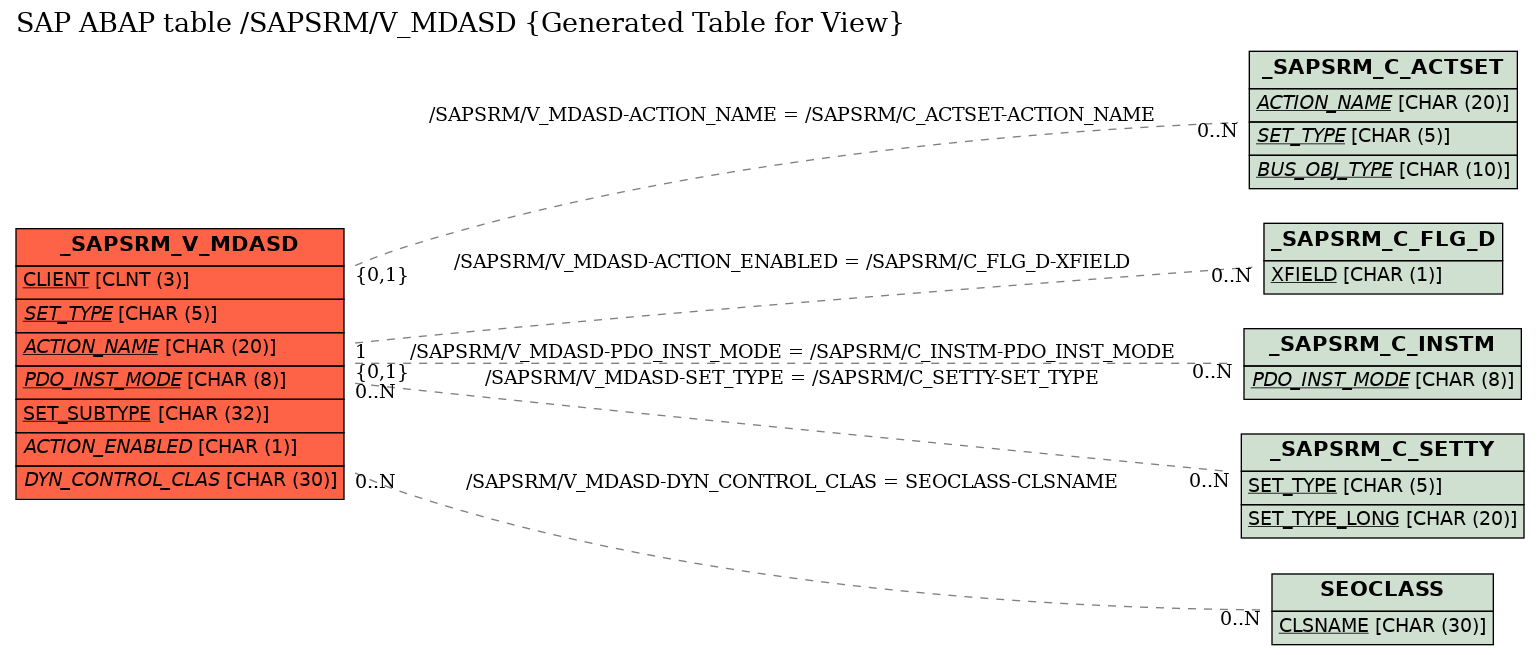

General view structure	/SAPSRM/V_MDASD	Table Relationship Diagram
Short Description	Generated Table for View

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	X	Display/Maintenance Allowed

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	CLIENT	☑	EC_CLIENT	MANDT	CLNT	3	0	Client
2	SET_TYPE	☑	/SAPSRM/PDO_SET_TYPE	/SAPSRM/PDO_SET_TYPE	CHAR	5	0	Business Object Set Type	/SAPSRM/C_SETTY
3	ACTION_NAME	☑	/SAPSRM/PDO_ACTION_TYPE	/SAPSRM/PDO_ACTION_TYPE	CHAR	20	0	PDO Action Type	/SAPSRM/C_ACTSET
4	PDO_INST_MODE	☑	/SAPSRM/PDO_INST_MODE_RESTRICT	/SAPSRM/PDO_INST_MODE	CHAR	8	0	Process Mode of PDO Object (Edit/Display/Postedit Only)	/SAPSRM/C_INSTM
5	SET_SUBTYPE	☑	/SAPSRM/PDO_SET_SUBTYPE	CHAR32	CHAR	32	0	Universal Field to Set Subtypes in PDO Layer
6	ACTION_ENABLED	☐	/SAPSRM/PDO_META_ACTION_ENABLD	/SAPSRM/PDO_XFIELD_W_DEFAULTS	CHAR	1	0	PDO Action Enabled	/SAPSRM/C_FLG_D
7	DYN_CONTROL_CLAS	☐	/SAPSRM/PDO_META_DYN_CLASS_NAM	SEOCLSNAME	CHAR	30	0	Name of Dynamic Control Class for Metadata Configuration	SEOCLASS
8	DYN_CONTROL_METH	☐	/SAPSRM/PDO_META_DYN_METH_NAME	CHAR61	CHAR	61	0	Full Name of Dynamic Control Method for Metadata Config.
9	SET_TYPE_DESCR	☐	/SAPSRM/PDO_SET_TYPE_DESCR	/SAPSRM/PDO_SET_TYPE_DESCR	CHAR	30	0	Description of Business Object Set Type
10	ACTION_DESCR	☐	/SAPSRM/PDO_ACTION_DESCR	/SAPSRM/PDO_ACTION_DESCR	CHAR	60	0	Description of a PDO Action
11	XFIELD_LANG_KEY	☐	/SAPSRM/PDO_META_ACT_ACT_L_KEY	/SAPSRM/PDO_XFIELD_W_DEF_L_KEY	CHAR	10	0	Language-Dependent Key of Active Checkbox for Actions
12	XFIELD_DESCR	☐	/SAPSRM/PDO_XFIELD_W_DEF_DESCR	TEXT30	CHAR	30	0	Desc. of Yes/No Checkbox with Modifiable Default Values
13	INST_MODE_LANG_K	☐	/SAPSRM/PDO_INST_MODE_LANG_KEY	TEXT10	CHAR	10	0	Language-Dependent Key of the Instance Processing Mode
14	INST_MODE_DESCR	☐	/SAPSRM/PDO_INST_MODE_DESCR	TEXT20	CHAR	20	0	Description of the Instance Processing Mode
15	SET_SUBTYPE_DESC	☐	/SAPSRM/PDO_SET_SUBTYPE_DESCR	TEXT60	CHAR	60	0	Set Subtype Description
16	DESCRIPT	☐	/SAPSRM/PDO_MD_DYN_SEODESCR	AS4TEXT	CHAR	60	0	Description of Dynamic Metadata Control Class
17	METHOD_DESCR	☐	/SAPSRM/PDO_MD_DYN_SEOMTDDESCR	AS4TEXT	CHAR	60	0	Description of Dynamic Metadata Control Method

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	/SAPSRM/V_MDASD	ACTION_ENABLED	/SAPSRM/C_FLG_D	XFIELD		1	CN
2	/SAPSRM/V_MDASD	ACTION_NAME	/SAPSRM/C_ACTSET	ACTION_NAME	KEY	C	CN
3	/SAPSRM/V_MDASD	DYN_CONTROL_CLAS	SEOCLASS	CLSNAME
4	/SAPSRM/V_MDASD	PDO_INST_MODE	/SAPSRM/C_INSTM	PDO_INST_MODE	KEY	C	CN
5	/SAPSRM/V_MDASD	SET_TYPE	/SAPSRM/C_SETTY	SET_TYPE

History

Last changed by/on	SAP	20130528
SAP Release Created in
