SAP ABAP Table /SAPSRM/C_SW_WD (Table to switch Web-Dynpro UI Elements)

Hierarchy

☛ SRM_SERVER (Software Component) SRM_SERVER
   ⤷ SRM-EBP-FW (Application Component) SRM Framework
     ⤷ /SAPSRM/SWITCH_UTILITIES (Package) Utilities and Framework for SFW and Customizing Switches

Basic Data

Table Category	TRANSP	Transparent table

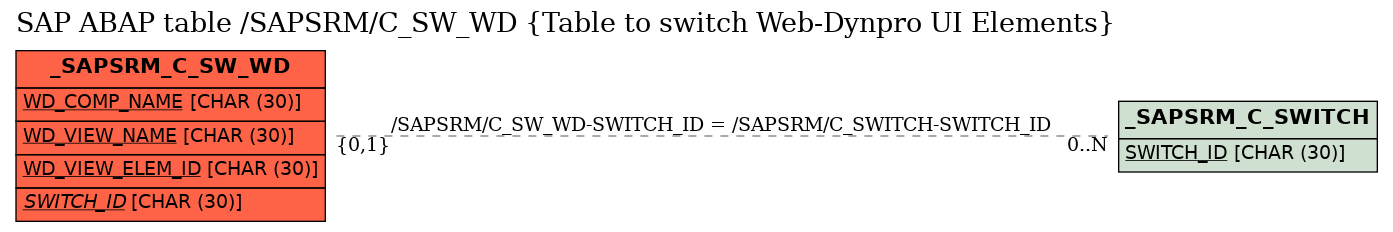

Transparent table	/SAPSRM/C_SW_WD	Table Relationship Diagram
Short Description	Table to switch Web-Dynpro UI Elements

Delivery and Maintenance

Pool/cluster
Delivery Class	S	System table, maint. only by SAP, change = modification
Data Browser/Table View Maintenance		Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	WD_COMP_NAME	☑	/SAPSRM/WD_COMP_NAME	CHAR30	CHAR	30	0	Web Dynpro Component Name
2	WD_VIEW_NAME	☑	/SAPSRM/WDVIEW_NAME	CHAR30	CHAR	30	0	Web Dynpro View Name
3	WD_VIEW_ELEM_ID	☑	/SAPSRM/WD_VIEW_ELEMENT_ID		CHAR	30	0	Web Dynpro View Element ID
4	SWITCH_ID	☑	/SAPSRM/CUSTMZ_SWITCH_ID	/SAPSRM/CUSTMZ_SWITCH_ID	CHAR	30	0	Customizing Switch ID	/SAPSRM/C_SWITCH
5	SWITCH_PRIO	☐	/SAPSRM/CUSTMZ_SWITCH_PRIO	NUM3	NUMC	3	0	Priority of Switched Table Entry
6	ACTION_TYPE	☐	/SAPSRM/CUSTMZ_SW_ACTION	/SAPSRM/CUSTMZ_SW_ACTION	CHAR	1	0	Possible Switch Actions for Web Dynpro View UI Elements

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	/SAPSRM/C_SW_WD	SWITCH_ID	/SAPSRM/C_SWITCH	SWITCH_ID	KEY	C	CN

History

Last changed by/on	SAP	20110913
SAP Release Created in	701
