SAP ABAP Table /SAPSRM/C_MDFSDL (Look-Up Table for Dependant Object/Set Field Metadata)

Hierarchy

☛ SRM_SERVER (Software Component) SRM_SERVER
   ⤷ SRM-EBP-FW (Application Component) SRM Framework
     ⤷ /SAPSRM/PDO_SHARED_META (Package) Sub-Package: Utils for actions and fields meta data handling

Basic Data

Table Category	TRANSP	Transparent table

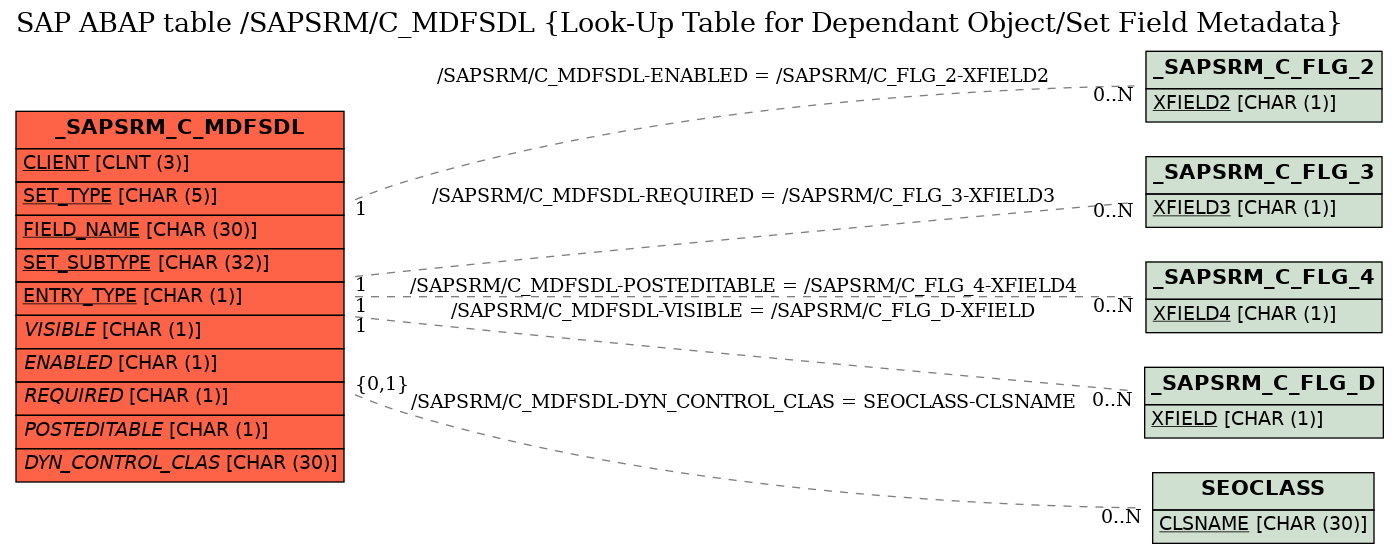

Transparent table	/SAPSRM/C_MDFSDL	Table Relationship Diagram
Short Description	Look-Up Table for Dependant Object/Set Field Metadata

Delivery and Maintenance

Pool/cluster
Delivery Class	S	System table, maint. only by SAP, change = modification
Data Browser/Table View Maintenance	X	Display/Maintenance Allowed

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	CLIENT	☑	EC_CLIENT	MANDT	CLNT	3	0	Client	*
2	SET_TYPE	☑	/SAPSRM/PDO_SET_TYPE	/SAPSRM/PDO_SET_TYPE	CHAR	5	0	Business Object Set Type	*
3	FIELD_NAME	☑	/SAPSRM/PDO_META_FIELD_NAME	FDNAME	CHAR	30	0	Structure Field Name for Metadata Handling in PDO layer	*
4	SET_SUBTYPE	☑	CHAR32	CHAR32	CHAR	32	0	Character field, length 32
5	ENTRY_TYPE	☑	/SAPSRM/PDO_META_ENTRY_TYPE	/SAPSRM/PDO_META_ENTRY_TYPE	CHAR	1	0	Entry Type	*
6	.INCLUDE	☐				0	0	Meta Data for Fields including Dynamic Controller
7	.INCLUDE	☐				0	0	PDO internal Field Metadata including extended Attributes
8	.INCLUDE	☐				0	0	Field Properties for PDO external metadata interfaces
9	VISIBLE	☐	/SAPSRM/PDO_META_VISIBLE	/SAPSRM/PDO_XFIELD_W_DEFAULTS	CHAR	1	0	PDO Field Property "Visible"	/SAPSRM/C_FLG_D
10	ENABLED	☐	/SAPSRM/PDO_META_EDITABLE	/SAPSRM/PDO_XFIELD_W_DEFAULTS	CHAR	1	0	PDO Field Property "Editable" (Enabled)	/SAPSRM/C_FLG_2
11	REQUIRED	☐	/SAPSRM/PDO_META_REQUIRED	/SAPSRM/PDO_XFIELD_W_DEFAULTS	CHAR	1	0	PDO Field Property "Required"	/SAPSRM/C_FLG_3
12	POSTEDITABLE	☐	/SAPSRM/PDO_META_POSTEDITABLE	/SAPSRM/PDO_XFIELD_W_DEFAULTS	CHAR	1	0	PDO Field Property "Posteditable" when Ordered/Released	/SAPSRM/C_FLG_4
13	.INCLUDE	☐				0	0	Dynamic Control Method for Metadata
14	DYN_CONTROL_CLAS	☐	/SAPSRM/PDO_META_DYN_CLASS_NAM	SEOCLSNAME	CHAR	30	0	Name of Dynamic Control Class for Metadata Configuration	SEOCLASS
15	DYN_CONTROL_METH	☐	/SAPSRM/PDO_META_DYN_METH_NAME	CHAR61	CHAR	61	0	Full Name of Dynamic Control Method for Metadata Config.
16	SWITCH_DEPENDANT	☐	/SAPSRM/PDO_META_SWITCH_DEP	XFELD	CHAR	1	0	Switch-Dependent Object
17	.INCLUDE	☐				0	0	Generic dynamic metadata methods for look-up tables
18	DYN_CTRL_GEN_CLS	☐	/SAPSRM/PDO_META_DYN_CLASS_NAM	SEOCLSNAME	CHAR	30	0	Name of Dynamic Control Class for Metadata Configuration
19	DYN_CTRL_GEN_MTD	☐	/SAPSRM/PDO_META_DYN_METH_NAME	CHAR61	CHAR	61	0	Full Name of Dynamic Control Method for Metadata Config.
20	DYN_CTRL_G_CU_CL	☐	/SAPSRM/PDO_META_DYN_CLASS_CUS	SEOCLSNAME	CHAR	30	0	Name of Dynamic Customer Control Class for Metadata
21	DYN_CTRL_G_CU_MD	☐	/SAPSRM/PDO_META_DYN_METH_CUST	CHAR61	CHAR	61	0	Full Name of Dynamic Customer Control Method for Metadata

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	/SAPSRM/C_MDFSDL	DYN_CONTROL_CLAS	SEOCLASS	CLSNAME		C	CN
2	/SAPSRM/C_MDFSDL	ENABLED	/SAPSRM/C_FLG_2	XFIELD2	REF	1	CN
3	/SAPSRM/C_MDFSDL	POSTEDITABLE	/SAPSRM/C_FLG_4	XFIELD4	REF	1	CN
4	/SAPSRM/C_MDFSDL	REQUIRED	/SAPSRM/C_FLG_3	XFIELD3	REF	1	CN
5	/SAPSRM/C_MDFSDL	VISIBLE	/SAPSRM/C_FLG_D	XFIELD	REF	1	CN

History

Last changed by/on	SAP	20110913
SAP Release Created in	600
