SAP ABAP Table /SAPSRM/C_MDFSBL (Look-Up Table BO specific Restriction of Set Field Metadata)
Hierarchy
☛
SRM_SERVER (Software Component) SRM_SERVER
⤷
SRM-EBP-FW (Application Component) SRM Framework
⤷
/SAPSRM/PDO_SHARED_META (Package) Sub-Package: Utils for actions and fields meta data handling
SRM_SERVER (Software Component) SRM_SERVER⤷
SRM-EBP-FW (Application Component) SRM Framework⤷
/SAPSRM/PDO_SHARED_META (Package) Sub-Package: Utils for actions and fields meta data handling
Basic Data
| Table Category | TRANSP | Transparent table |
| Transparent table | /SAPSRM/C_MDFSBL |

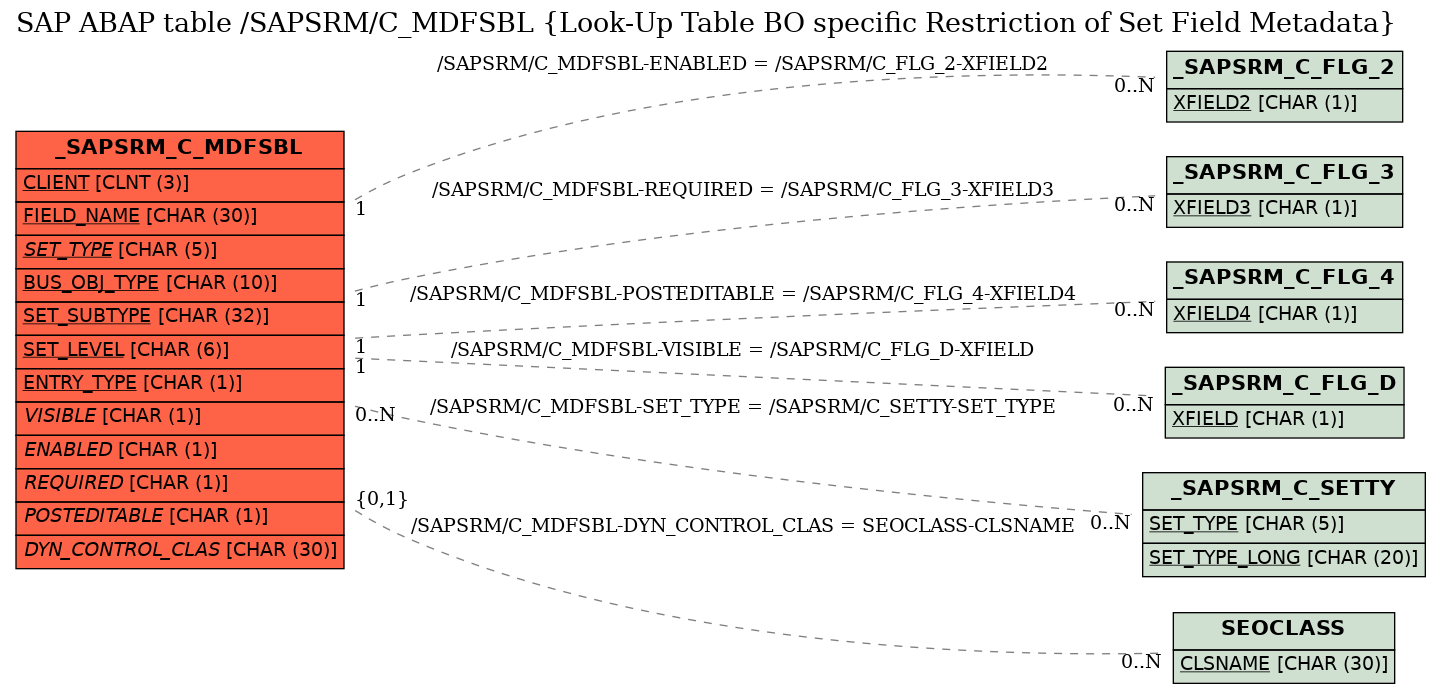

Table Relationship Diagram
|
| Short Description | Look-Up Table BO specific Restriction of Set Field Metadata |
Delivery and Maintenance
| Pool/cluster | ||
| Delivery Class | S | System table, maint. only by SAP, change = modification |
| Data Browser/Table View Maintenance | X | Display/Maintenance Allowed |
Components
 |
Field | Key | Data Element | Domain | Data Type |
Length | Decimal Places |
Short Description | Check table |
|---|---|---|---|---|---|---|---|---|---|
| 1 |  CLIENT |
EC_CLIENT | MANDT | CLNT | 3 | 0 | Client | * | |
| 2 | FIELD_NAME |
/SAPSRM/PDO_META_FIELD_NAME | FDNAME | CHAR | 30 | 0 | Structure Field Name for Metadata Handling in PDO layer | * | |
| 3 | SET_TYPE |
/SAPSRM/PDO_SET_TYPE | /SAPSRM/PDO_SET_TYPE | CHAR | 5 | 0 | Business Object Set Type | /SAPSRM/C_SETTY | |
| 4 | BUS_OBJ_TYPE |
/SAPSRM/PDO_BO_TYPE | CRM_OJ_NAME_PROCESS | CHAR | 10 | 0 | Business Object Type | * | |
| 5 | SET_SUBTYPE |
CHAR32 | CHAR32 | CHAR | 32 | 0 | Character field, length 32 | ||
| 6 | SET_LEVEL |
/SAPSRM/PDO_META_SET_LEVEL | /SAPSRM/PDO_META_SET_LEVEL | CHAR | 6 | 0 | Set Level | * | |
| 7 | ENTRY_TYPE |
/SAPSRM/PDO_META_ENTRY_TYPE | /SAPSRM/PDO_META_ENTRY_TYPE | CHAR | 1 | 0 | Entry Type | * | |
| 8 | .INCLUDE |
0 | 0 | Meta Data for Fields including Dynamic Controller | |||||
| 9 | .INCLUDE |
0 | 0 | PDO internal Field Metadata including extended Attributes | |||||
| 10 | .INCLUDE |
0 | 0 | Field Properties for PDO external metadata interfaces | |||||
| 11 | VISIBLE |
/SAPSRM/PDO_META_VISIBLE | /SAPSRM/PDO_XFIELD_W_DEFAULTS | CHAR | 1 | 0 | PDO Field Property "Visible" | /SAPSRM/C_FLG_D | |
| 12 | ENABLED |
/SAPSRM/PDO_META_EDITABLE | /SAPSRM/PDO_XFIELD_W_DEFAULTS | CHAR | 1 | 0 | PDO Field Property "Editable" (Enabled) | /SAPSRM/C_FLG_2 | |
| 13 | REQUIRED |
/SAPSRM/PDO_META_REQUIRED | /SAPSRM/PDO_XFIELD_W_DEFAULTS | CHAR | 1 | 0 | PDO Field Property "Required" | /SAPSRM/C_FLG_3 | |
| 14 | POSTEDITABLE |
/SAPSRM/PDO_META_POSTEDITABLE | /SAPSRM/PDO_XFIELD_W_DEFAULTS | CHAR | 1 | 0 | PDO Field Property "Posteditable" when Ordered/Released | /SAPSRM/C_FLG_4 | |
| 15 | .INCLUDE |
0 | 0 | Dynamic Control Method for Metadata | |||||
| 16 | DYN_CONTROL_CLAS |
/SAPSRM/PDO_META_DYN_CLASS_NAM | SEOCLSNAME | CHAR | 30 | 0 | Name of Dynamic Control Class for Metadata Configuration | SEOCLASS | |
| 17 | DYN_CONTROL_METH |
/SAPSRM/PDO_META_DYN_METH_NAME | CHAR61 | CHAR | 61 | 0 | Full Name of Dynamic Control Method for Metadata Config. | ||
| 18 | VISIBLE_CU |
/SAPSRM/PDO_META_VISIBLE | /SAPSRM/PDO_XFIELD_W_DEFAULTS | CHAR | 1 | 0 | PDO Field Property "Visible" | * | |
| 19 | ENABLED_CU |
/SAPSRM/PDO_META_ENABLED | /SAPSRM/PDO_XFIELD_W_DEFAULTS | CHAR | 1 | 0 | PDO Field Property "Enabled" | * | |
| 20 | REQUIRED_CU |
/SAPSRM/PDO_META_REQUIRED | /SAPSRM/PDO_XFIELD_W_DEFAULTS | CHAR | 1 | 0 | PDO Field Property "Required" | * | |
| 21 | DYN_CTRL_CU_CLAS |
/SAPSRM/PDO_META_DYN_CLASS_CUS | SEOCLSNAME | CHAR | 30 | 0 | Name of Dynamic Customer Control Class for Metadata | ||
| 22 | DYN_CTRL_CU_METH |
/SAPSRM/PDO_META_DYN_METH_CUST | CHAR61 | CHAR | 61 | 0 | Full Name of Dynamic Customer Control Method for Metadata | ||
| 23 | SWITCH_DEPENDANT |
/SAPSRM/PDO_META_SWITCH_DEP | XFELD | CHAR | 1 | 0 | Switch-Dependent Object | ||
| 24 | .INCLUDE |
0 | 0 | Generic dynamic metadata methods for look-up tables | |||||
| 25 | DYN_CTRL_GEN_CLS |
/SAPSRM/PDO_META_DYN_CLASS_NAM | SEOCLSNAME | CHAR | 30 | 0 | Name of Dynamic Control Class for Metadata Configuration | ||
| 26 | DYN_CTRL_GEN_MTD |
/SAPSRM/PDO_META_DYN_METH_NAME | CHAR61 | CHAR | 61 | 0 | Full Name of Dynamic Control Method for Metadata Config. | ||
| 27 | DYN_CTRL_G_CU_CL |
/SAPSRM/PDO_META_DYN_CLASS_CUS | SEOCLSNAME | CHAR | 30 | 0 | Name of Dynamic Customer Control Class for Metadata | ||
| 28 | DYN_CTRL_G_CU_MD |
/SAPSRM/PDO_META_DYN_METH_CUST | CHAR61 | CHAR | 61 | 0 | Full Name of Dynamic Customer Control Method for Metadata |
Foreign Keys
| |
Source Table | Source Column | Foreign Table | Foreign Column | Dependency Factor | Cardinality left | Cardinality right |
|---|---|---|---|---|---|---|---|
 |
|
|
|
|
|
|
|
| 1 | /SAPSRM/C_MDFSBL | DYN_CONTROL_CLAS |  SEOCLASS |
CLSNAME |
C | CN | |
| 2 | /SAPSRM/C_MDFSBL | ENABLED | /SAPSRM/C_FLG_2 |
XFIELD2 |
REF | 1 | CN |
| 3 | /SAPSRM/C_MDFSBL | POSTEDITABLE | /SAPSRM/C_FLG_4 |
XFIELD4 |
REF | 1 | CN |
| 4 | /SAPSRM/C_MDFSBL | REQUIRED | /SAPSRM/C_FLG_3 |
XFIELD3 |
REF | 1 | CN |
| 5 | /SAPSRM/C_MDFSBL | SET_TYPE | /SAPSRM/C_SETTY |
SET_TYPE |
|||
| 6 | /SAPSRM/C_MDFSBL | VISIBLE | /SAPSRM/C_FLG_D |
XFIELD |
REF | 1 | CN |
History
| Last changed by/on | SAP | 20110913 |
| SAP Release Created in | 600 |
