SAP ABAP Table /SAPSRM/C_MDF_IT (Meta Data Configuration for Business Object Item Fields)

Hierarchy

☛ SRM_SERVER (Software Component) SRM_SERVER
   ⤷ SRM-EBP-FW (Application Component) SRM Framework
     ⤷ /SAPSRM/PDO_SHARED_META (Package) Sub-Package: Utils for actions and fields meta data handling

Basic Data

Table Category	TRANSP	Transparent table

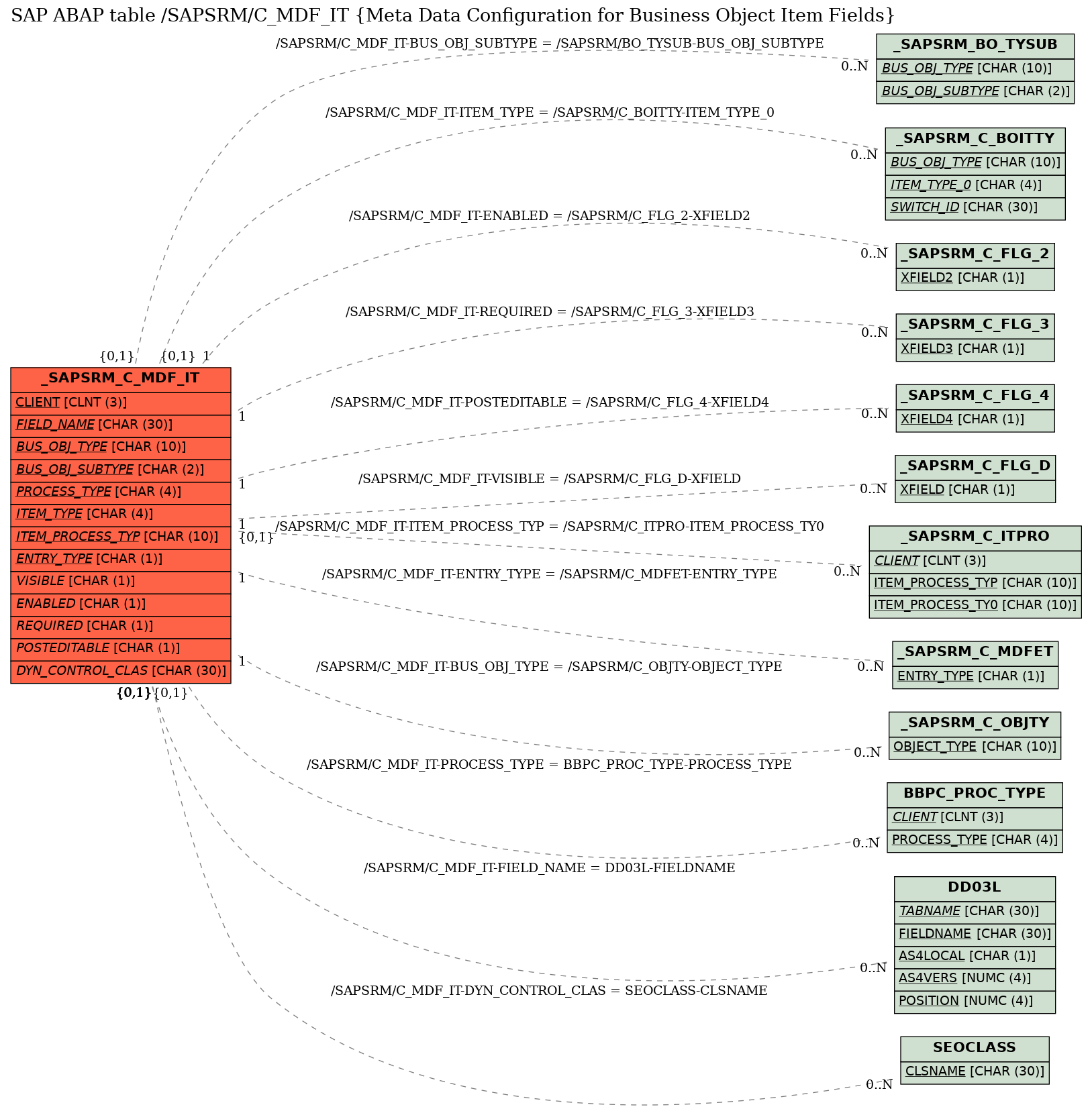

Transparent table	/SAPSRM/C_MDF_IT	Table Relationship Diagram
Short Description	Meta Data Configuration for Business Object Item Fields

Delivery and Maintenance

Pool/cluster
Delivery Class	S	System table, maint. only by SAP, change = modification
Data Browser/Table View Maintenance		Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	CLIENT	☑	EC_CLIENT	MANDT	CLNT	3	0	Client	*
2	FIELD_NAME	☑	/SAPSRM/PDO_META_FIELD_NAME	FDNAME	CHAR	30	0	Structure Field Name for Metadata Handling in PDO layer	DD03L
3	BUS_OBJ_TYPE	☑	/SAPSRM/OBJECT_TYPE_MD	/SAPSRM/OBJECT_TYPE_MD	CHAR	10	0	Type of an object used for metadata	/SAPSRM/C_OBJTY
4	BUS_OBJ_SUBTYPE	☑	/SAPSRM/PDO_BO_SUBTYPE_0	/SAPSRM/PDO_BO_SUBTYPE_0	CHAR	2	0	Specification of a Purchasing Doc.(' ' replaced by '0')	/SAPSRM/BO_TYSUB
5	PROCESS_TYPE	☑	BBP_PROC_TYPE	BBP_PROC_TYPE	CHAR	4	0	Business Transaction Type	BBPC_PROC_TYPE
6	ITEM_TYPE	☑	/SAPSRM/PDO_ITEM_TYPE_0	/SAPSRM/PDO_ITEM_TYPE_0	CHAR	4	0	Item Type of Purchasing Document with ' ' Replaced by '0'	/SAPSRM/C_BOITTY
7	ITEM_PROCESS_TYP	☑	/SAPSRM/PDO_ITEM_PROCESS_TYPE0	/SAPSRM/PDO_ITEM_PROCESS_TYPE0	CHAR	10	0	Item Process Type with Initial Value ' ' Replaced by '0'	/SAPSRM/C_ITPRO
8	ENTRY_TYPE	☑	/SAPSRM/PDO_META_ENTRY_TYPE	/SAPSRM/PDO_META_ENTRY_TYPE	CHAR	1	0	Entry Type	/SAPSRM/C_MDFET
9	.INCLUDE	☐				0	0	PDO internal Field Metadata including extended Attributes
10	.INCLUDE	☐				0	0	Field Properties for PDO external metadata interfaces
11	VISIBLE	☐	/SAPSRM/PDO_META_VISIBLE	/SAPSRM/PDO_XFIELD_W_DEFAULTS	CHAR	1	0	PDO Field Property "Visible"	/SAPSRM/C_FLG_D
12	ENABLED	☐	/SAPSRM/PDO_META_EDITABLE	/SAPSRM/PDO_XFIELD_W_DEFAULTS	CHAR	1	0	PDO Field Property "Editable" (Enabled)	/SAPSRM/C_FLG_2
13	REQUIRED	☐	/SAPSRM/PDO_META_REQUIRED	/SAPSRM/PDO_XFIELD_W_DEFAULTS	CHAR	1	0	PDO Field Property "Required"	/SAPSRM/C_FLG_3
14	POSTEDITABLE	☐	/SAPSRM/PDO_META_POSTEDITABLE	/SAPSRM/PDO_XFIELD_W_DEFAULTS	CHAR	1	0	PDO Field Property "Posteditable" when Ordered/Released	/SAPSRM/C_FLG_4
15	.INCLUDE	☐				0	0	Dynamic Control Method for Metadata
16	DYN_CONTROL_CLAS	☐	/SAPSRM/PDO_META_DYN_CLASS_NAM	SEOCLSNAME	CHAR	30	0	Name of Dynamic Control Class for Metadata Configuration	SEOCLASS
17	DYN_CONTROL_METH	☐	/SAPSRM/PDO_META_DYN_METH_NAME	CHAR61	CHAR	61	0	Full Name of Dynamic Control Method for Metadata Config.

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	/SAPSRM/C_MDF_IT	BUS_OBJ_SUBTYPE	/SAPSRM/BO_TYSUB	BUS_OBJ_SUBTYPE	KEY	C	CN
2	/SAPSRM/C_MDF_IT	BUS_OBJ_TYPE	/SAPSRM/C_OBJTY	OBJECT_TYPE	KEY	1	CN
3	/SAPSRM/C_MDF_IT	DYN_CONTROL_CLAS	SEOCLASS	CLSNAME	REF	C	CN
4	/SAPSRM/C_MDF_IT	ENABLED	/SAPSRM/C_FLG_2	XFIELD2	REF	1	CN
5	/SAPSRM/C_MDF_IT	ENTRY_TYPE	/SAPSRM/C_MDFET	ENTRY_TYPE	KEY	1	CN
6	/SAPSRM/C_MDF_IT	FIELD_NAME	DD03L	FIELDNAME	KEY	C	CN
7	/SAPSRM/C_MDF_IT	ITEM_PROCESS_TYP	/SAPSRM/C_ITPRO	ITEM_PROCESS_TY0	KEY	C	CN
8	/SAPSRM/C_MDF_IT	ITEM_TYPE	/SAPSRM/C_BOITTY	ITEM_TYPE_0	KEY	C	CN
9	/SAPSRM/C_MDF_IT	POSTEDITABLE	/SAPSRM/C_FLG_4	XFIELD4	REF	1	CN
10	/SAPSRM/C_MDF_IT	PROCESS_TYPE	BBPC_PROC_TYPE	PROCESS_TYPE	KEY	C	CN
11	/SAPSRM/C_MDF_IT	REQUIRED	/SAPSRM/C_FLG_3	XFIELD3	REF	1	CN
12	/SAPSRM/C_MDF_IT	VISIBLE	/SAPSRM/C_FLG_D	XFIELD	REF	1	CN

History

Last changed by/on	SAP	20130528
SAP Release Created in	600
