SAP ABAP Table /SAPSRM/C_MDF_IB (Background Table for Meta Data Configuration for Item Fields)
Hierarchy
☛
SRM_SERVER (Software Component) SRM_SERVER
⤷
SRM-EBP-FW (Application Component) SRM Framework
⤷
/SAPSRM/OBSOLETE (Package) OBSOLETE !!!!! Objects from SRM_SERVER w namespace /SAPSRM/
SRM_SERVER (Software Component) SRM_SERVER⤷
SRM-EBP-FW (Application Component) SRM Framework⤷
/SAPSRM/OBSOLETE (Package) OBSOLETE !!!!! Objects from SRM_SERVER w namespace /SAPSRM/
Basic Data
| Table Category | TRANSP | Transparent table |
| Transparent table | /SAPSRM/C_MDF_IB |

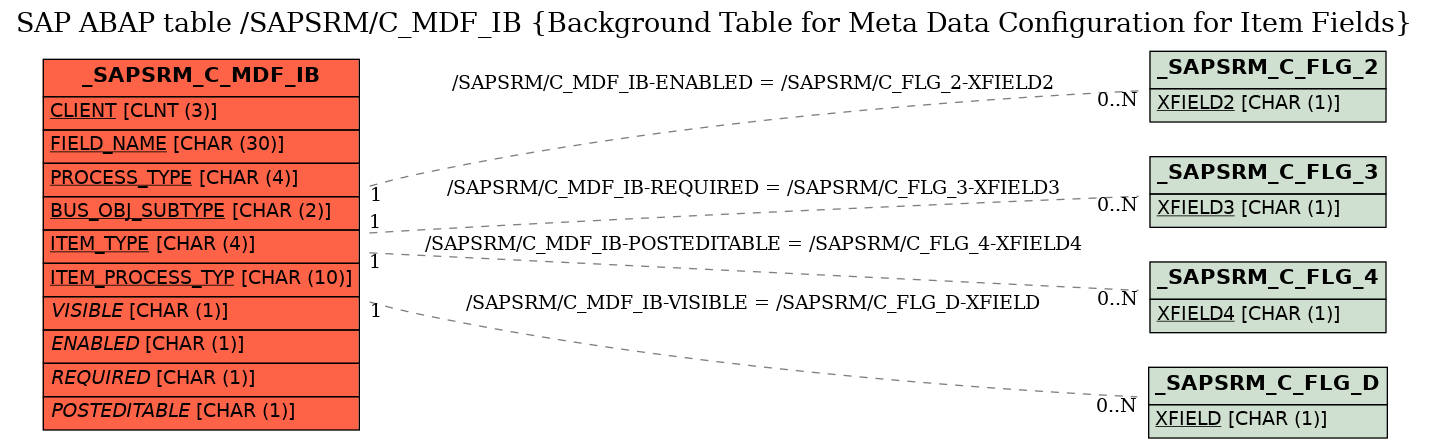

Table Relationship Diagram
|
| Short Description | Background Table for Meta Data Configuration for Item Fields |
Delivery and Maintenance
| Pool/cluster | ||
| Delivery Class | S | System table, maint. only by SAP, change = modification |
| Data Browser/Table View Maintenance | X | Display/Maintenance Allowed |
Components
 |
Field | Key | Data Element | Domain | Data Type |
Length | Decimal Places |
Short Description | Check table |
|---|---|---|---|---|---|---|---|---|---|
| 1 |  CLIENT |
EC_CLIENT | MANDT | CLNT | 3 | 0 | Client | * | |
| 2 | FIELD_NAME |
/SAPSRM/PDO_META_FIELD_NAME | FDNAME | CHAR | 30 | 0 | Structure Field Name for Metadata Handling in PDO layer | * | |
| 3 | PROCESS_TYPE |
BBP_PROC_TYPE | BBP_PROC_TYPE | CHAR | 4 | 0 | Business Transaction Type | * | |
| 4 | BUS_OBJ_SUBTYPE |
/SAPSRM/PDO_BO_SUBTYPE_0 | /SAPSRM/PDO_BO_SUBTYPE_0 | CHAR | 2 | 0 | Specification of a Purchasing Doc.(' ' replaced by '0') | * | |
| 5 | ITEM_TYPE |
/SAPSRM/PDO_ITEM_TYPE_0 | /SAPSRM/PDO_ITEM_TYPE_0 | CHAR | 4 | 0 | Item Type of Purchasing Document with ' ' Replaced by '0' | * | |
| 6 | ITEM_PROCESS_TYP |
/SAPSRM/PDO_ITEM_PROCESS_TYPE | /SAPSRM/PDO_ITEM_PROCESS_TYPE | CHAR | 10 | 0 | Item Process Type | * | |
| 7 | .INCLUDE |
0 | 0 | PDO internal Field Metadata including extended Attributes | |||||
| 8 | .INCLUDE |
0 | 0 | Field Properties for PDO external metadata interfaces | |||||
| 9 | VISIBLE |
/SAPSRM/PDO_META_VISIBLE | /SAPSRM/PDO_XFIELD_W_DEFAULTS | CHAR | 1 | 0 | PDO Field Property "Visible" | /SAPSRM/C_FLG_D | |
| 10 | ENABLED |
/SAPSRM/PDO_META_EDITABLE | /SAPSRM/PDO_XFIELD_W_DEFAULTS | CHAR | 1 | 0 | PDO Field Property "Editable" (Enabled) | /SAPSRM/C_FLG_2 | |
| 11 | REQUIRED |
/SAPSRM/PDO_META_REQUIRED | /SAPSRM/PDO_XFIELD_W_DEFAULTS | CHAR | 1 | 0 | PDO Field Property "Required" | /SAPSRM/C_FLG_3 | |
| 12 | POSTEDITABLE |
/SAPSRM/PDO_META_POSTEDITABLE | /SAPSRM/PDO_XFIELD_W_DEFAULTS | CHAR | 1 | 0 | PDO Field Property "Posteditable" when Ordered/Released | /SAPSRM/C_FLG_4 | |
| 13 | DYN_CONTROL_CLAS |
/SAPSRM/PDO_META_DYN_CLASS_NAM | SEOCLSNAME | CHAR | 30 | 0 | Name of Dynamic Control Class for Metadata Configuration | ||
| 14 | DYN_CONTROL_METH |
/SAPSRM/PDO_META_DYN_METH_NAME | CHAR61 | CHAR | 61 | 0 | Full Name of Dynamic Control Method for Metadata Config. | ||
| 15 | DYN_CTRL_CU_CLAS |
/SAPSRM/PDO_META_DYN_CLASS_CUS | SEOCLSNAME | CHAR | 30 | 0 | Name of Dynamic Customer Control Class for Metadata | ||
| 16 | DYN_CTRL_CU_METH |
/SAPSRM/PDO_META_DYN_METH_CUST | CHAR61 | CHAR | 61 | 0 | Full Name of Dynamic Customer Control Method for Metadata |
Foreign Keys
| |
Source Table | Source Column | Foreign Table | Foreign Column | Dependency Factor | Cardinality left | Cardinality right |
|---|---|---|---|---|---|---|---|
 |
|
|
|
|
|
|
|
| 1 | /SAPSRM/C_MDF_IB | ENABLED |  /SAPSRM/C_FLG_2 |
XFIELD2 |
REF | 1 | CN |
| 2 | /SAPSRM/C_MDF_IB | POSTEDITABLE | /SAPSRM/C_FLG_4 |
XFIELD4 |
REF | 1 | CN |
| 3 | /SAPSRM/C_MDF_IB | REQUIRED | /SAPSRM/C_FLG_3 |
XFIELD3 |
REF | 1 | CN |
| 4 | /SAPSRM/C_MDF_IB | VISIBLE | /SAPSRM/C_FLG_D |
XFIELD |
REF | 1 | CN |
History
| Last changed by/on | SAP | 20110913 |
| SAP Release Created in | 600 |
