SAP ABAP Table /SAPSRM/C_MDF_I1 (Meta Data Configuration for Business Object Item Fields)
Hierarchy
☛ SRM_SERVER (Software Component) SRM_SERVER
   ⤷ SRM-EBP-FW (Application Component) SRM Framework
     ⤷ /SAPSRM/PDO_SHARED_META (Package) Sub-Package: Utils for actions and fields meta data handling
Basic Data
Table Category TRANSP    Transparent table

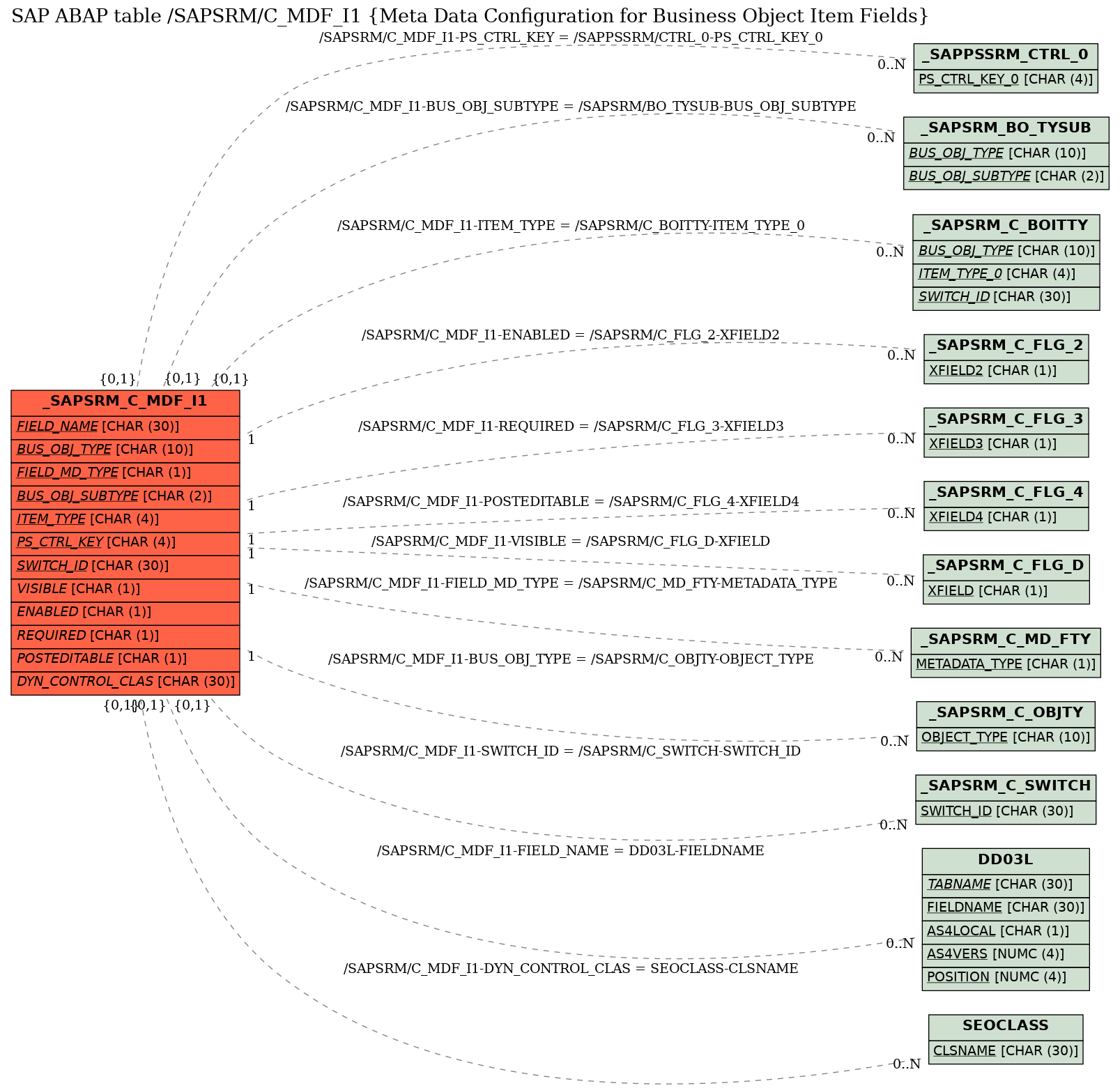

Transparent table /SAPSRM/C_MDF_I1   Table Relationship Diagram
Short Description Meta Data Configuration for Business Object Item Fields
Delivery and Maintenance
Pool/cluster
Delivery Class S   System table, maint. only by SAP, change = modification
Data Browser/Table View Maintenance     Display/Maintenance Allowed with Restrictions
Components

Field Key Data Element Domain Data
Type		 Length Decimal
Places		 Short Description Check
table
1 FIELD_NAME /SAPSRM/PDO_META_FIELD_NAME FDNAME CHAR 30   0   Structure Field Name for Metadata Handling in PDO layer DD03L
2 BUS_OBJ_TYPE /SAPSRM/OBJECT_TYPE_MD /SAPSRM/OBJECT_TYPE_MD CHAR 10   0   Type of an object used for metadata /SAPSRM/C_OBJTY
3 FIELD_MD_TYPE /SAPSRM/PDO_META_FIELD_MD_TYPE /SAPSRM/PDO_META_FIELD_MD_TYPE CHAR 1   0   Metadata Field Type /SAPSRM/C_MD_FTY
4 BUS_OBJ_SUBTYPE /SAPSRM/PDO_BO_SUBTYPE_0 /SAPSRM/PDO_BO_SUBTYPE_0 CHAR 2   0   Specification of a Purchasing Doc.(' ' replaced by '0') /SAPSRM/BO_TYSUB
5 ITEM_TYPE /SAPSRM/PDO_ITEM_TYPE_0 /SAPSRM/PDO_ITEM_TYPE_0 CHAR 4   0   Item Type of Purchasing Document with ' ' Replaced by '0' /SAPSRM/C_BOITTY
6 PS_CTRL_KEY /SAPPSSRM/_PS_CTRL_KEY_0 /SAPPSSRM/_PS_CTRL_KEY_0 CHAR 4   0   Item Process Type Control Key for Use in Metadata /SAPPSSRM/CTRL_0
7 SWITCH_ID /SAPSRM/CUSTMZ_SWITCH_ID /SAPSRM/CUSTMZ_SWITCH_ID CHAR 30   0   Customizing Switch ID /SAPSRM/C_SWITCH
8 SWITCH_PRIO /SAPSRM/CUSTMZ_SWITCH_PRIO NUM3 NUMC 3   0   Priority of Switched Table Entry
9 .INCLUDE       0   0   PDO internal Field Metadata including extended Attributes
10 .INCLUDE       0   0   Field Properties for PDO external metadata interfaces
11 VISIBLE /SAPSRM/PDO_META_VISIBLE /SAPSRM/PDO_XFIELD_W_DEFAULTS CHAR 1   0   PDO Field Property "Visible" /SAPSRM/C_FLG_D
12 ENABLED /SAPSRM/PDO_META_EDITABLE /SAPSRM/PDO_XFIELD_W_DEFAULTS CHAR 1   0   PDO Field Property "Editable" (Enabled) /SAPSRM/C_FLG_2
13 REQUIRED /SAPSRM/PDO_META_REQUIRED /SAPSRM/PDO_XFIELD_W_DEFAULTS CHAR 1   0   PDO Field Property "Required" /SAPSRM/C_FLG_3
14 POSTEDITABLE /SAPSRM/PDO_META_POSTEDITABLE /SAPSRM/PDO_XFIELD_W_DEFAULTS CHAR 1   0   PDO Field Property "Posteditable" when Ordered/Released /SAPSRM/C_FLG_4
15 .INCLUDE       0   0   Dynamic Control Method for Metadata
16 DYN_CONTROL_CLAS /SAPSRM/PDO_META_DYN_CLASS_NAM SEOCLSNAME CHAR 30   0   Name of Dynamic Control Class for Metadata Configuration SEOCLASS
17 DYN_CONTROL_METH /SAPSRM/PDO_META_DYN_METH_NAME CHAR61 CHAR 61   0   Full Name of Dynamic Control Method for Metadata Config.
Foreign Keys
Source Table Source Column Foreign Table Foreign Column Dependency Factor Cardinality left Cardinality right
1 /SAPSRM/C_MDF_I1 BUS_OBJ_SUBTYPE /SAPSRM/BO_TYSUB BUS_OBJ_SUBTYPE KEY C CN
2 /SAPSRM/C_MDF_I1 BUS_OBJ_TYPE /SAPSRM/C_OBJTY OBJECT_TYPE KEY 1 CN
3 /SAPSRM/C_MDF_I1 DYN_CONTROL_CLAS SEOCLASS CLSNAME REF C CN
4 /SAPSRM/C_MDF_I1 ENABLED /SAPSRM/C_FLG_2 XFIELD2 REF 1 CN
5 /SAPSRM/C_MDF_I1 FIELD_MD_TYPE /SAPSRM/C_MD_FTY METADATA_TYPE KEY 1 CN
6 /SAPSRM/C_MDF_I1 FIELD_NAME DD03L FIELDNAME KEY C CN
7 /SAPSRM/C_MDF_I1 ITEM_TYPE /SAPSRM/C_BOITTY ITEM_TYPE_0 KEY C CN
8 /SAPSRM/C_MDF_I1 POSTEDITABLE /SAPSRM/C_FLG_4 XFIELD4 REF 1 CN
9 /SAPSRM/C_MDF_I1 PS_CTRL_KEY /SAPPSSRM/CTRL_0 PS_CTRL_KEY_0 KEY C CN
10 /SAPSRM/C_MDF_I1 REQUIRED /SAPSRM/C_FLG_3 XFIELD3 REF 1 CN
11 /SAPSRM/C_MDF_I1 SWITCH_ID /SAPSRM/C_SWITCH SWITCH_ID KEY C CN
12 /SAPSRM/C_MDF_I1 VISIBLE /SAPSRM/C_FLG_D XFIELD REF 1 CN
History
Last changed by/on SAP  20110913
SAP Release Created in 702
