SAP ABAP Table /SAPSRM/C_MDF_HL (Look-Up Table for Meta Data Configuration for Header Fields)

Hierarchy

☛ SRM_SERVER (Software Component) SRM_SERVER
   ⤷ SRM-EBP-FW (Application Component) SRM Framework
     ⤷ /SAPSRM/PDO_SHARED_META (Package) Sub-Package: Utils for actions and fields meta data handling

Basic Data

Table Category	TRANSP	Transparent table

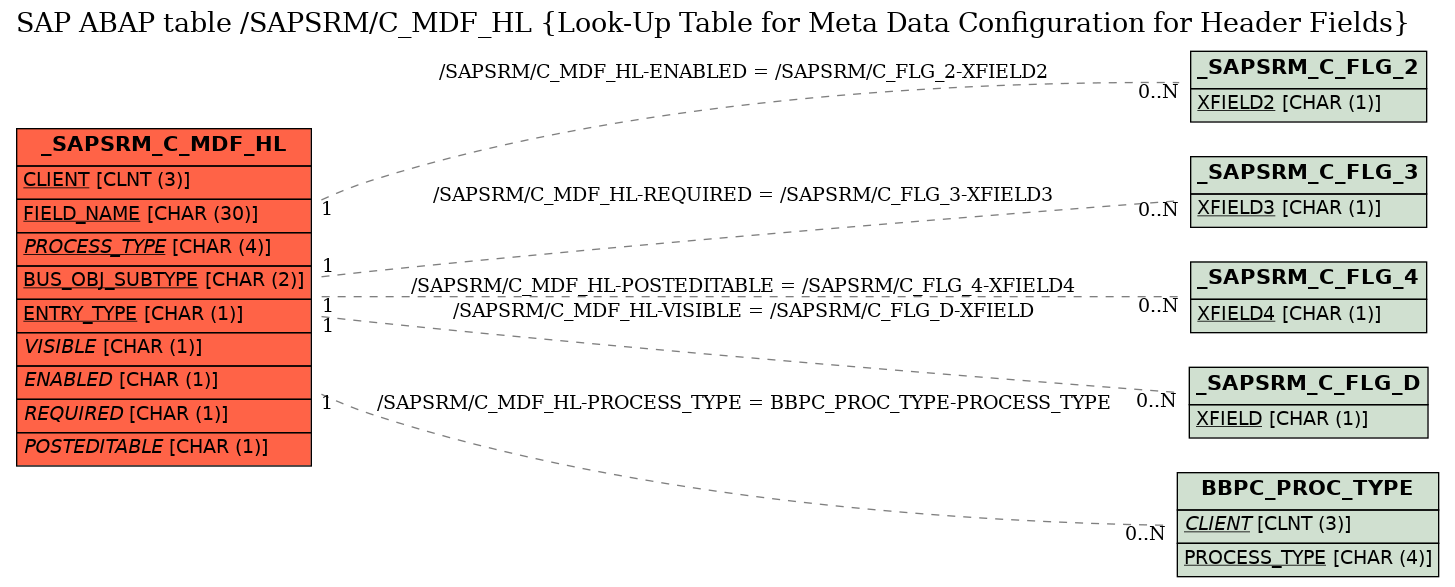

Transparent table	/SAPSRM/C_MDF_HL	Table Relationship Diagram
Short Description	Look-Up Table for Meta Data Configuration for Header Fields

Delivery and Maintenance

Pool/cluster
Delivery Class	S	System table, maint. only by SAP, change = modification
Data Browser/Table View Maintenance	X	Display/Maintenance Allowed

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	CLIENT	☑	EC_CLIENT	MANDT	CLNT	3	0	Client	*
2	FIELD_NAME	☑	/SAPSRM/PDO_META_FIELD_NAME	FDNAME	CHAR	30	0	Structure Field Name for Metadata Handling in PDO layer	*
3	PROCESS_TYPE	☑	BBP_PROC_TYPE	BBP_PROC_TYPE	CHAR	4	0	Business Transaction Type	BBPC_PROC_TYPE
4	BUS_OBJ_SUBTYPE	☑	/SAPSRM/PDO_BO_SUBTYPE_0	/SAPSRM/PDO_BO_SUBTYPE_0	CHAR	2	0	Specification of a Purchasing Doc.(' ' replaced by '0')	*
5	ENTRY_TYPE	☑	/SAPSRM/PDO_META_ENTRY_TYPE	/SAPSRM/PDO_META_ENTRY_TYPE	CHAR	1	0	Entry Type	*
6	.INCLUDE	☐				0	0	PDO internal Field Metadata including extended Attributes
7	.INCLUDE	☐				0	0	Field Properties for PDO external metadata interfaces
8	VISIBLE	☐	/SAPSRM/PDO_META_VISIBLE	/SAPSRM/PDO_XFIELD_W_DEFAULTS	CHAR	1	0	PDO Field Property "Visible"	/SAPSRM/C_FLG_D
9	ENABLED	☐	/SAPSRM/PDO_META_EDITABLE	/SAPSRM/PDO_XFIELD_W_DEFAULTS	CHAR	1	0	PDO Field Property "Editable" (Enabled)	/SAPSRM/C_FLG_2
10	REQUIRED	☐	/SAPSRM/PDO_META_REQUIRED	/SAPSRM/PDO_XFIELD_W_DEFAULTS	CHAR	1	0	PDO Field Property "Required"	/SAPSRM/C_FLG_3
11	POSTEDITABLE	☐	/SAPSRM/PDO_META_POSTEDITABLE	/SAPSRM/PDO_XFIELD_W_DEFAULTS	CHAR	1	0	PDO Field Property "Posteditable" when Ordered/Released	/SAPSRM/C_FLG_4
12	DYN_CONTROL_CLAS	☐	/SAPSRM/PDO_META_DYN_CLASS_NAM	SEOCLSNAME	CHAR	30	0	Name of Dynamic Control Class for Metadata Configuration
13	DYN_CONTROL_METH	☐	/SAPSRM/PDO_META_DYN_METH_NAME	CHAR61	CHAR	61	0	Full Name of Dynamic Control Method for Metadata Config.
14	VISIBLE_CU	☐	/SAPSRM/PDO_META_VISIBLE	/SAPSRM/PDO_XFIELD_W_DEFAULTS	CHAR	1	0	PDO Field Property "Visible"	*
15	ENABLED_CU	☐	/SAPSRM/PDO_META_ENABLED	/SAPSRM/PDO_XFIELD_W_DEFAULTS	CHAR	1	0	PDO Field Property "Enabled"	*
16	REQUIRED_CU	☐	/SAPSRM/PDO_META_REQUIRED	/SAPSRM/PDO_XFIELD_W_DEFAULTS	CHAR	1	0	PDO Field Property "Required"	*
17	DYN_CTRL_CU_CLAS	☐	/SAPSRM/PDO_META_DYN_CLASS_CUS	SEOCLSNAME	CHAR	30	0	Name of Dynamic Customer Control Class for Metadata
18	DYN_CTRL_CU_METH	☐	/SAPSRM/PDO_META_DYN_METH_CUST	CHAR61	CHAR	61	0	Full Name of Dynamic Customer Control Method for Metadata
19	SWITCH_DEPENDANT	☐	/SAPSRM/PDO_META_SWITCH_DEP	XFELD	CHAR	1	0	Switch-Dependent Object
20	.INCLUDE	☐				0	0	Generic dynamic metadata methods for look-up tables
21	DYN_CTRL_GEN_CLS	☐	/SAPSRM/PDO_META_DYN_CLASS_NAM	SEOCLSNAME	CHAR	30	0	Name of Dynamic Control Class for Metadata Configuration
22	DYN_CTRL_GEN_MTD	☐	/SAPSRM/PDO_META_DYN_METH_NAME	CHAR61	CHAR	61	0	Full Name of Dynamic Control Method for Metadata Config.
23	DYN_CTRL_G_CU_CL	☐	/SAPSRM/PDO_META_DYN_CLASS_CUS	SEOCLSNAME	CHAR	30	0	Name of Dynamic Customer Control Class for Metadata
24	DYN_CTRL_G_CU_MD	☐	/SAPSRM/PDO_META_DYN_METH_CUST	CHAR61	CHAR	61	0	Full Name of Dynamic Customer Control Method for Metadata

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	/SAPSRM/C_MDF_HL	ENABLED	/SAPSRM/C_FLG_2	XFIELD2	REF	1	CN
2	/SAPSRM/C_MDF_HL	POSTEDITABLE	/SAPSRM/C_FLG_4	XFIELD4	REF	1	CN
3	/SAPSRM/C_MDF_HL	PROCESS_TYPE	BBPC_PROC_TYPE	PROCESS_TYPE	KEY	1	CN
4	/SAPSRM/C_MDF_HL	REQUIRED	/SAPSRM/C_FLG_3	XFIELD3	REF	1	CN
5	/SAPSRM/C_MDF_HL	VISIBLE	/SAPSRM/C_FLG_D	XFIELD	REF	1	CN

History

Last changed by/on	SAP	20110913
SAP Release Created in	600
