SAP ABAP Table /SAPSRM/C_MDASBL (Look-Up Table BO specific Restriction of Set Field Metadata)

Hierarchy

☛ SRM_SERVER (Software Component) SRM_SERVER
   ⤷ SRM-EBP-FW (Application Component) SRM Framework
     ⤷ /SAPSRM/PDO_SHARED_META (Package) Sub-Package: Utils for actions and fields meta data handling

Basic Data

Table Category	TRANSP	Transparent table

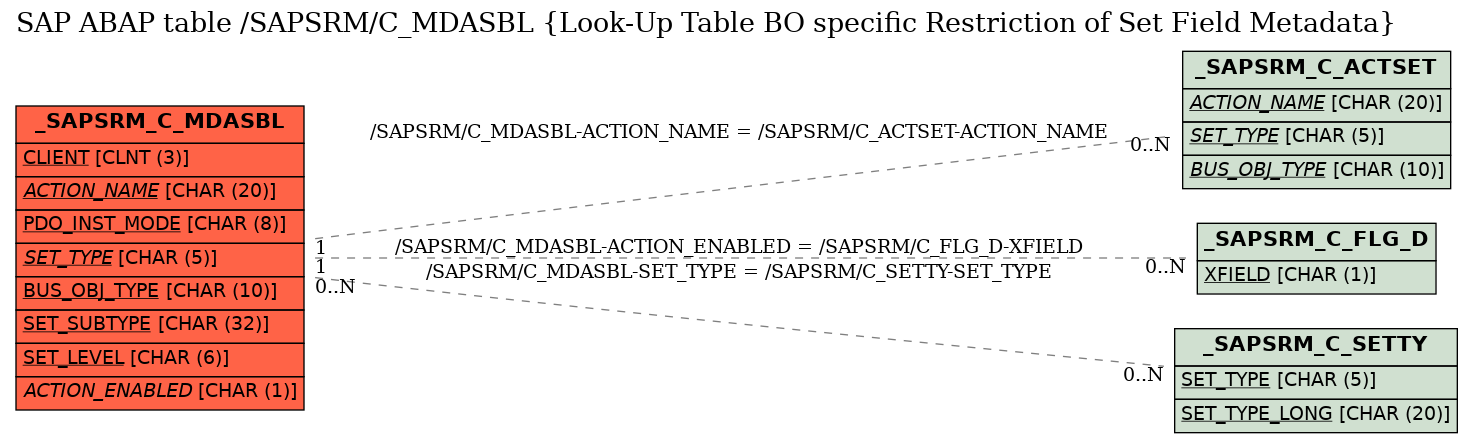

Transparent table	/SAPSRM/C_MDASBL	Table Relationship Diagram
Short Description	Look-Up Table BO specific Restriction of Set Field Metadata

Delivery and Maintenance

Pool/cluster
Delivery Class	S	System table, maint. only by SAP, change = modification
Data Browser/Table View Maintenance	X	Display/Maintenance Allowed

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	CLIENT	☑	EC_CLIENT	MANDT	CLNT	3	0	Client	*
2	ACTION_NAME	☑	/SAPSRM/PDO_ACTION_TYPE	/SAPSRM/PDO_ACTION_TYPE	CHAR	20	0	PDO Action Type	/SAPSRM/C_ACTSET
3	PDO_INST_MODE	☑	/SAPSRM/PDO_INST_MODE	/SAPSRM/PDO_INST_MODE	CHAR	8	0	Process Mode of PDO Object Instance	*
4	SET_TYPE	☑	/SAPSRM/PDO_SET_TYPE	/SAPSRM/PDO_SET_TYPE	CHAR	5	0	Business Object Set Type	/SAPSRM/C_SETTY
5	BUS_OBJ_TYPE	☑	/SAPSRM/PDO_BO_TYPE	CRM_OJ_NAME_PROCESS	CHAR	10	0	Business Object Type	*
6	SET_SUBTYPE	☑	CHAR32	CHAR32	CHAR	32	0	Character field, length 32
7	SET_LEVEL	☑	/SAPSRM/PDO_META_SET_LEVEL	/SAPSRM/PDO_META_SET_LEVEL	CHAR	6	0	Set Level	*
8	.INCLUDE	☐				0	0	Action Metadata
9	ACTION_ENABLED	☐	/SAPSRM/PDO_META_ACTION_ENABLD	/SAPSRM/PDO_XFIELD_W_DEFAULTS	CHAR	1	0	PDO Action Enabled	/SAPSRM/C_FLG_D
10	DYN_CONTROL_CLAS	☐	/SAPSRM/PDO_META_DYN_CLASS_NAM	SEOCLSNAME	CHAR	30	0	Name of Dynamic Control Class for Metadata Configuration
11	DYN_CONTROL_METH	☐	/SAPSRM/PDO_META_DYN_METH_NAME	CHAR61	CHAR	61	0	Full Name of Dynamic Control Method for Metadata Config.
12	ACTION_ENABLD_CU	☐	/SAPSRM/PDO_META_ACTION_ENABLD	/SAPSRM/PDO_XFIELD_W_DEFAULTS	CHAR	1	0	PDO Action Enabled	*
13	DYN_CTRL_CU_CLAS	☐	/SAPSRM/PDO_META_DYN_CLASS_CUS	SEOCLSNAME	CHAR	30	0	Name of Dynamic Customer Control Class for Metadata
14	DYN_CTRL_CU_METH	☐	/SAPSRM/PDO_META_DYN_METH_CUST	CHAR61	CHAR	61	0	Full Name of Dynamic Customer Control Method for Metadata
15	SWITCH_DEPENDANT	☐	/SAPSRM/PDO_META_SWITCH_DEP	XFELD	CHAR	1	0	Switch-Dependent Object
16	.INCLUDE	☐				0	0	Generic dynamic metadata methods for look-up tables
17	DYN_CTRL_GEN_CLS	☐	/SAPSRM/PDO_META_DYN_CLASS_NAM	SEOCLSNAME	CHAR	30	0	Name of Dynamic Control Class for Metadata Configuration
18	DYN_CTRL_GEN_MTD	☐	/SAPSRM/PDO_META_DYN_METH_NAME	CHAR61	CHAR	61	0	Full Name of Dynamic Control Method for Metadata Config.
19	DYN_CTRL_G_CU_CL	☐	/SAPSRM/PDO_META_DYN_CLASS_CUS	SEOCLSNAME	CHAR	30	0	Name of Dynamic Customer Control Class for Metadata
20	DYN_CTRL_G_CU_MD	☐	/SAPSRM/PDO_META_DYN_METH_CUST	CHAR61	CHAR	61	0	Full Name of Dynamic Customer Control Method for Metadata

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	/SAPSRM/C_MDASBL	ACTION_ENABLED	/SAPSRM/C_FLG_D	XFIELD		1	CN
2	/SAPSRM/C_MDASBL	ACTION_NAME	/SAPSRM/C_ACTSET	ACTION_NAME	KEY	1	CN
3	/SAPSRM/C_MDASBL	SET_TYPE	/SAPSRM/C_SETTY	SET_TYPE

History

Last changed by/on	SAP	20110913
SAP Release Created in	600
