SAP ABAP Table /MRSS/T_RM_ALERTS (To show alerts in UI)

Hierarchy

☛ MRSS_NW (Software Component) SAP Multiresource Scheduling for SAP Net
   ⤷ PM-WOC-CP (Application Component) Capacity and Resource Planning
     ⤷ /MRSS/RMS (Package) Resource Management Service Layer

Basic Data

Table Category	INTTAB	Structure
Structure	/MRSS/T_RM_ALERTS	Table Relationship Diagram
Short Description	To show alerts in UI

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	ICON	☐	/MRSS/T_RM_ICON		STRG	0	0	Alerts
2	.INCLUDE	☐				0	0	Return Parameter
3	TYPE	☐	BAPI_MTYPE	SYCHAR01	CHAR	1	0	Message type: S Success, E Error, W Warning, I Info, A Abort
4	ID	☐	SYMSGID	ARBGB	CHAR	20	0	Message Class	T100A
5	NUMBER	☐	SYMSGNO	SYMSGNO	NUMC	3	0	Message Number
6	MESSAGE	☐	BAPI_MSG	TEXT220	CHAR	220	0	Message Text
7	LOG_NO	☐	BALOGNR	BALOGNR	CHAR	20	0	Application log: log number	BALHDR
8	LOG_MSG_NO	☐	BALMNR	BALMNR	NUMC	6	0	Application log: Internal message serial number	BALM
9	MESSAGE_V1	☐	SYMSGV	SYCHAR50	CHAR	50	0	Message Variable
10	MESSAGE_V2	☐	SYMSGV	SYCHAR50	CHAR	50	0	Message Variable
11	MESSAGE_V3	☐	SYMSGV	SYCHAR50	CHAR	50	0	Message Variable
12	MESSAGE_V4	☐	SYMSGV	SYCHAR50	CHAR	50	0	Message Variable
13	PARAMETER	☐	BAPI_PARAM	SWC_ELEM	CHAR	32	0	Parameter Name
14	ROW	☐	BAPI_LINE	INT4	INT4	10	0	Lines in parameter
15	FIELD	☐	BAPI_FLD	FDNAME	CHAR	30	0	Field in parameter	*
16	SYSTEM	☐	BAPILOGSYS	LOGSYS	CHAR	10	0	Logical system from which message originates	*

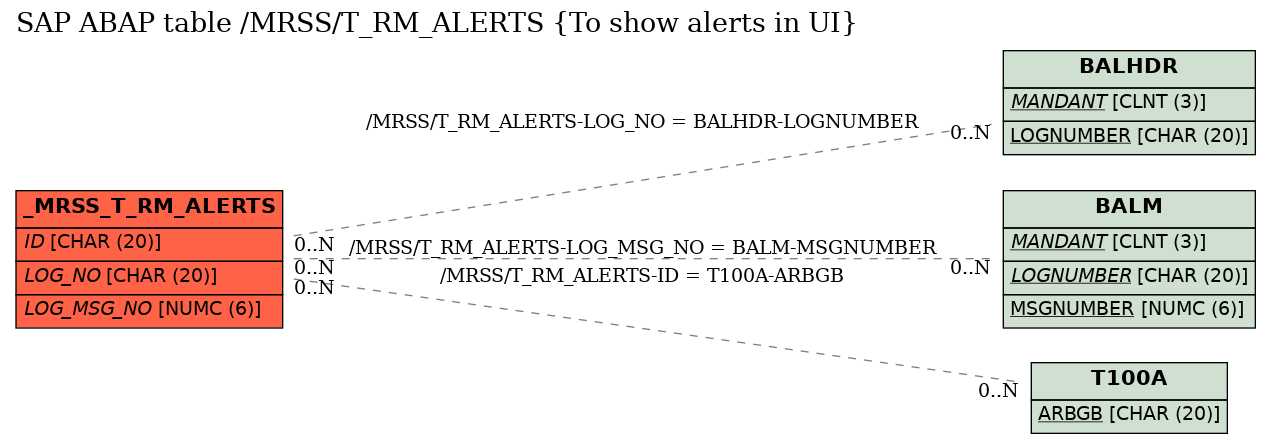

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	/MRSS/T_RM_ALERTS	ID	T100A	ARBGB
2	/MRSS/T_RM_ALERTS	LOG_MSG_NO	BALM	MSGNUMBER
3	/MRSS/T_RM_ALERTS	LOG_NO	BALHDR	LOGNUMBER

History

Last changed by/on	SAP	20141109
SAP Release Created in	610
