SAP ABAP Table /ISDFPS/MEPMIMPT (Generated Table for View)

Basic Data

Table Category	VIEW	General view structure

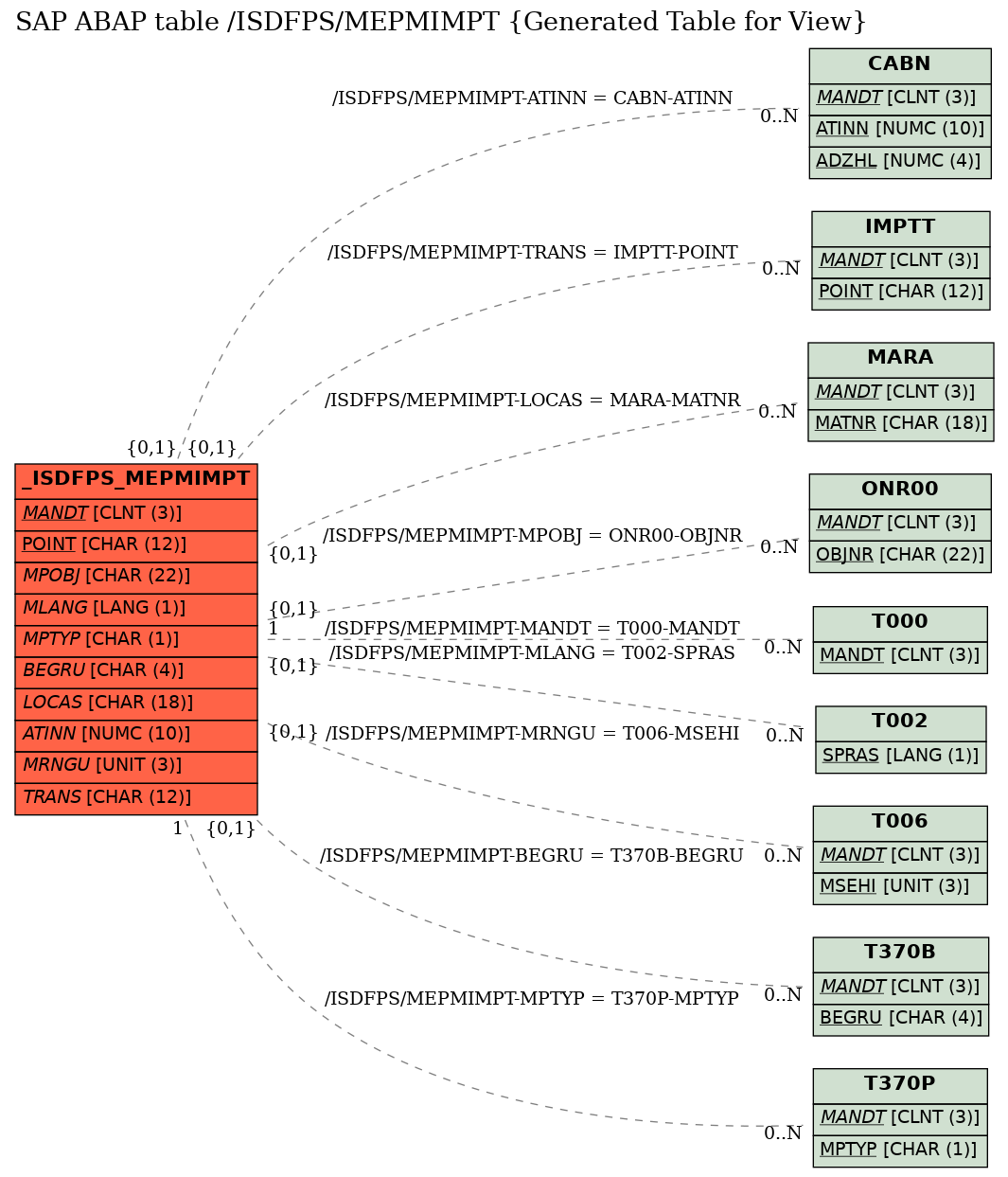

General view structure	/ISDFPS/MEPMIMPT	Table Relationship Diagram
Short Description	Generated Table for View

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	MANDT	☑	MANDT	MANDT	CLNT	3	0	Client	T000
2	POINT	☑	IMRC_POINT	IMRC_POINT	CHAR	12	0	Measuring Point
3	MPOBJ	☐	IMRC_MPOBJ	J_OBJNR	CHAR	22	0	Object Number for the Measuring Point Object	ONR00
4	PSORT	☐	IMRC_PSORT	CHAR20	CHAR	20	0	Position Number of the Object Measuring Point (Sort Field)
5	PTTXT	☐	IMRC_PTTXT	TEXT40	CHAR	40	0	Description of Measuring Point
6	MLANG	☐	SPRAS	SPRAS	LANG	1	0	Language Key	T002
7	KZLTX	☐	ILOM_KZLTX	X	CHAR	1	0	Indicator: Long text exists
8	MPTYP	☐	IMRC_MPTYP	IMRC_MPTYP	CHAR	1	0	Measuring Point Category	T370P
9	ERDAT	☐	ICRDT	DATUM	DATS	8	0	Date on Which Object Was Created
10	ERNAM	☐	ICRNA	USNAM	CHAR	12	0	Name of User Who Created the Object
11	AEDAT	☐	IUPDT	DATUM	DATS	8	0	Date on which the object was last changed
12	AENAM	☐	IUPNA	USNAM	CHAR	12	0	Name of the User Who Last Changed the Object
13	BEGRU	☐	IAUTG	IAUTG	CHAR	4	0	Authorization Group for Technical Object	T370B
14	INACT	☐	IMRC_INACT	X	CHAR	1	0	Indicator: Measuring Point Inactive
15	LOCAS	☐	IMRC_LOCAS	MATNR	CHAR	18	0	Assembly for Localization of Measuring Point	MARA
16	ATINN	☐	ATINN	ATINN	NUMC	10	0	Internal characteristic	CABN
17	EXPON	☐	IMRC_EXPON	IMRC_EXPON	INT2	5	0	Power of Ten Exponent for Floating Point Display
18	DECIM	☐	IMRC_DECIM	IMRC_DECIM	INT2	5	0	Number of Decimal Places for Number Display
19	DSTXT	☐	IMRC_DSTXT	TEXT40	CHAR	40	0	Aditional Short Text for Measuring Point
20	MRMIN	☐	IMRC_MRMIN	IMRC_FLTPS	FLTP	16	16	Lower Measurement Range Limit/Minimum Total Counter Reading
21	MRMAX	☐	IMRC_MRMAX	IMRC_FLTPS	FLTP	16	16	Upper Measurement Range Limit/Maximum Total Counter Reading
22	MRMAXI	☐	IVALU	X	CHAR	1	0	Indicator: Associated Number Field Contains a Value
23	MRNGU	☐	IMRC_MRNGU	MEINS	UNIT	3	0	Measurement Range Unit	T006
24	INDCT	☐	IMRC_INDCT	X	CHAR	1	0	Indicator to Show that Measuring Point Is a Counter
25	INDRV	☐	IMRC_INDRV	X	CHAR	1	0	Indicator: Counter Runs Backwards
26	INDTR	☐	IMRC_INDTR	X	CHAR	1	0	Indicator That Measurement Reading Transfer is Supported
27	TRANS	☐	IMRC_TRANS	IMRC_POINT	CHAR	12	0	Measuring Point from Which Meas. Reading Was Transferred	IMPTT
28	CJUMP	☐	IMRC_CJUMP	IMRC_FLTPS	FLTP	16	16	Counter Overflow Reading in SI Unit
29	CJUMPI	☐	IVALU	X	CHAR	1	0	Indicator: Associated Number Field Contains a Value
30	PYEAR	☐	IMRC_PYEAR	IMRC_FLTPS	FLTP	16	16	Annual Estimate in SI Unit
31	PYEARI	☐	IVALU	X	CHAR	1	0	Indicator: Associated Number Field Contains a Value
32	MODTR	☐	IMRC_MODTR	IMRC_MODTR	CHAR	1	0	Mode of Counter Reading Transfer

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	/ISDFPS/MEPMIMPT	ATINN	CABN	ATINN	REF	C	CN
2	/ISDFPS/MEPMIMPT	BEGRU	T370B	BEGRU	REF	C	CN
3	/ISDFPS/MEPMIMPT	LOCAS	MARA	MATNR	REF	C	CN
4	/ISDFPS/MEPMIMPT	MANDT	T000	MANDT	KEY	1	CN
5	/ISDFPS/MEPMIMPT	MLANG	T002	SPRAS	REF	C	CN
6	/ISDFPS/MEPMIMPT	MPOBJ	ONR00	OBJNR	REF	C	CN
7	/ISDFPS/MEPMIMPT	MPTYP	T370P	MPTYP	REF	1	CN
8	/ISDFPS/MEPMIMPT	MRNGU	T006	MSEHI	REF	C	CN
9	/ISDFPS/MEPMIMPT	TRANS	IMPTT	POINT	REF	C	CN

History

Last changed by/on	SAP	20130529
SAP Release Created in
