SAP ABAP Table /ECRS/UI_EDIT_POI_OVERVIEW_S (UI: Edit Providers of Information: Overview)
Hierarchy
☛
SLL-LEG (Software Component) SLL-LEG 901: Add-On Installation
⤷ SLL-ECR (Application Component) Electronic Compliance Reporting
⤷ /ECRS/UI_MD (Package) ECR: User Interface - Master Data
⤷ SLL-ECR (Application Component) Electronic Compliance Reporting
⤷ /ECRS/UI_MD (Package) ECR: User Interface - Master Data
Basic Data
Table Category | INTTAB | Structure |
Structure | /ECRS/UI_EDIT_POI_OVERVIEW_S | Table Relationship Diagram |
Short Description | UI: Edit Providers of Information: Overview |
Delivery and Maintenance
Pool/cluster | ||
Delivery Class | ||
Data Browser/Table View Maintenance | Display/Maintenance Allowed with Restrictions |
Components
Field | Key | Data Element | Domain | Data Type |
Length | Decimal Places |
Short Description | Check table |
|
---|---|---|---|---|---|---|---|---|---|
1 | POIID | /ECRS/POIID | /ECRS/POIID | CHAR | 10 | 0 | Provider of Information ID | * | |
2 | POINA | /ECRS/POINA | TEXT35 | CHAR | 35 | 0 | Name of Provider of Information | ||
3 | RPCTI | /ECRS/RPCTI | /ECRS/RPCTI | CHAR | 2 | 0 | Country of Declaration (ISO Code) | /ECRS/TRPC | |
4 | POIVA | /ECRS/POIVA | /ECRS/VATID | CHAR | 20 | 0 | VAT Registration Number of Provider of Information | ||
5 | POIAD | /ECRS/POIAD | /ECRS/ADDNR | CHAR | 5 | 0 | Additional Number of Provider of Information | ||
6 | RPCUR | /ECRS/RPCUR | WAERS | CUKY | 5 | 0 | Key of Declaration Currency | TCURC | |
7 | RPLE1_TXT | /ECRS/RPLT1 | TEXT40 | CHAR | 40 | 0 | Name of Received Declaration Level | ||
8 | RPLE2_TXT | /ECRS/RPLT2 | TEXT40 | CHAR | 40 | 0 | Name of Dispatch Declaration Level | ||
9 | CRTBY | /ECRS/CRTBY | XUBNAME | CHAR | 12 | 0 | Name of User Who Added Object | USR02 | |
10 | CRTTS_DATE | /ECRS/CRTON | DATS | DATS | 8 | 0 | Date When the Object Was Created | ||
11 | CRTTS_TIME | /ECRS/CRTAT | UZEIT | TIMS | 6 | 0 | Time Object Was Added | ||
12 | LCHBY | /ECRS/LCHBY | XUBNAME | CHAR | 12 | 0 | Name of User Who Changed Object | USR02 | |
13 | LCHTS_DATE | /ECRS/LCHON | DATS | DATS | 8 | 0 | Date When Object Was Changed | ||
14 | LCHTS_TIME | /ECRS/LCHAT | UZEIT | TIMS | 6 | 0 | Time When Object Was Changed |

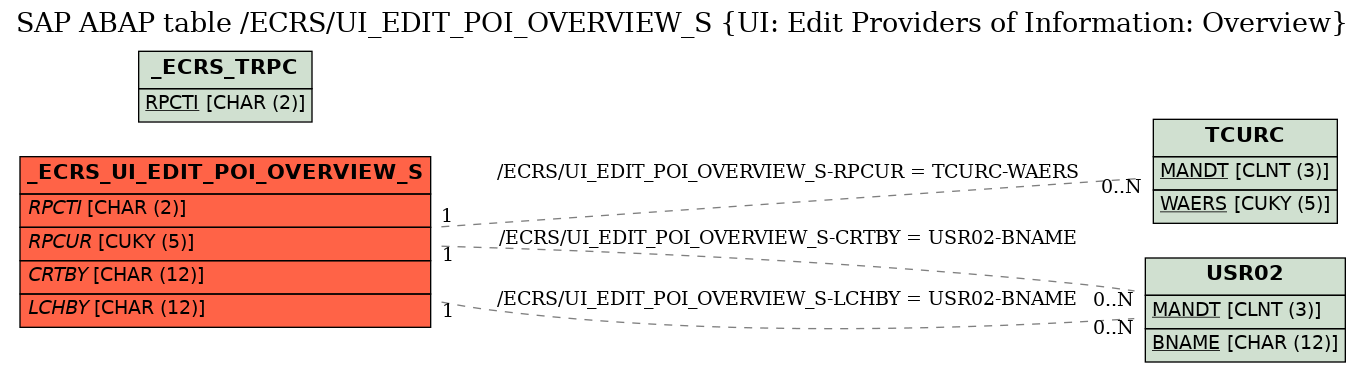

Foreign Keys
Source Table | Source Column | Foreign Table | Foreign Column | Dependency Factor | Cardinality left | Cardinality right | |
---|---|---|---|---|---|---|---|
1 | /ECRS/UI_EDIT_POI_OVERVIEW_S | CRTBY | USR02 | BNAME | KEY | 1 | CN |
2 | /ECRS/UI_EDIT_POI_OVERVIEW_S | LCHBY | USR02 | BNAME | KEY | 1 | CN |
3 | /ECRS/UI_EDIT_POI_OVERVIEW_S | RPCUR | TCURC | WAERS | KEY | 1 | CN |
History
Last changed by/on | SAP | 20141106 |
SAP Release Created in | 710 |
