SAP ABAP Table /CRYSTAL/CA_ROLE (Role to target system mappings)
Hierarchy
☛
SAP_BW (Software Component) SAP Business Warehouse
⤷
BW-BEX-ET (Application Component) End User Technology
⤷
/CRYSTAL/BC (Package) Business Objects Integrated Reporting
SAP_BW (Software Component) SAP Business Warehouse⤷
BW-BEX-ET (Application Component) End User Technology⤷
/CRYSTAL/BC (Package) Business Objects Integrated Reporting
Basic Data
| Table Category | TRANSP | Transparent table |
| Transparent table | /CRYSTAL/CA_ROLE |

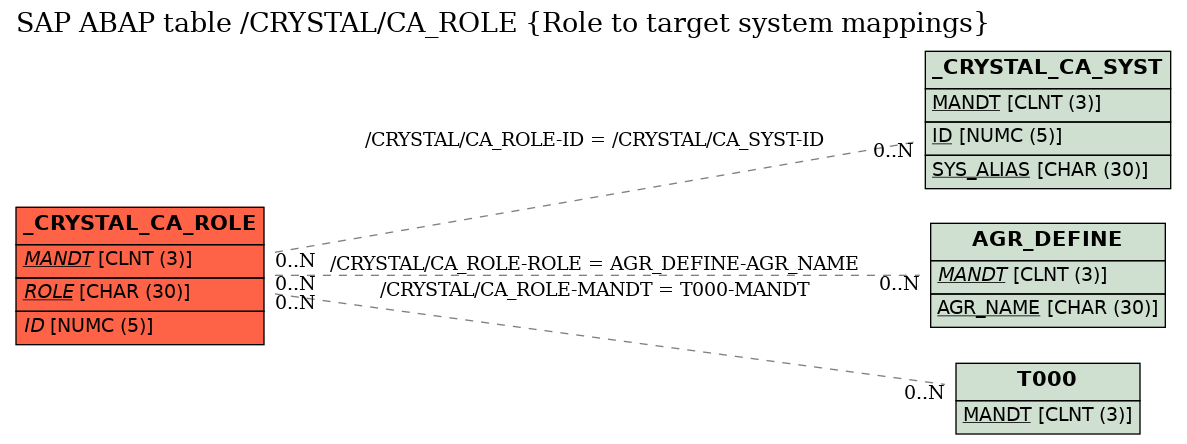

Table Relationship Diagram
|
| Short Description | Role to target system mappings |
Delivery and Maintenance
| Pool/cluster | ||
| Delivery Class | A | Application Table (Master- and Transaction Data) |
| Data Browser/Table View Maintenance | Display/Maintenance Allowed with Restrictions |
Components
 |
Field | Key | Data Element | Domain | Data Type |
Length | Decimal Places |
Short Description | Check table |
|---|---|---|---|---|---|---|---|---|---|
| 1 |  MANDT |
MANDT | MANDT | CLNT | 3 | 0 | Client | T000 | |
| 2 | ROLE |
AGR_NAME | AGR_NAME | CHAR | 30 | 0 | Role Name | AGR_DEFINE | |
| 3 | ID |
NUMC05 | NUMC5 | NUMC | 5 | 0 | Numeric field length 5 | /CRYSTAL/CA_SYST |
Foreign Keys
| |
Source Table | Source Column | Foreign Table | Foreign Column | Dependency Factor | Cardinality left | Cardinality right |
|---|---|---|---|---|---|---|---|
 |
|
|
|
|
|
|
|
| 1 | /CRYSTAL/CA_ROLE | ID |  /CRYSTAL/CA_SYST |
ID |
|||
| 2 | /CRYSTAL/CA_ROLE | MANDT | T000 |
MANDT |
|||
| 3 | /CRYSTAL/CA_ROLE | ROLE | AGR_DEFINE |
AGR_NAME |
History
| Last changed by/on | SAP | 20110908 |
| SAP Release Created in |
