SAP ABAP Table WSTN_MAP_COLOR_PLAN (MAP plan at the characteristic (color) level)
Hierarchy
☛
EA-RETAIL (Software Component) SAP Enterprise Extension Retail
⤷ LO-MD-MM (Application Component) Material Master
⤷ WSTRN (Package) Prepack Allocation Planning Dialog
⤷ LO-MD-MM (Application Component) Material Master
⤷ WSTRN (Package) Prepack Allocation Planning Dialog
Basic Data
Table Category | INTTAB | Structure |
Structure | WSTN_MAP_COLOR_PLAN | Table Relationship Diagram |
Short Description | MAP plan at the characteristic (color) level |
Delivery and Maintenance
Pool/cluster | ||
Delivery Class | ||
Data Browser/Table View Maintenance | Display/Maintenance Allowed with Restrictions |
Components
Field | Key | Data Element | Domain | Data Type |
Length | Decimal Places |
Short Description | Check table |
|
---|---|---|---|---|---|---|---|---|---|
1 | MATNR | MATNR | MATNR | CHAR | 18 | 0 | Material Number | MARA | |
2 | ATINN | ATINN | ATINN | NUMC | 10 | 0 | Internal characteristic | * | |
3 | ATZHL | ATZHL | ATZHL | NUMC | 4 | 0 | Int counter | ||
4 | PLAN_NB_VAR | WSTN_PLAN_NB_VAR | INT4 | INT4 | 10 | 0 | Planned Total Quantity of All Variants (MAP) | ||
5 | BASME | MEINS | MEINS | UNIT | 3 | 0 | Base Unit of Measure | T006 |

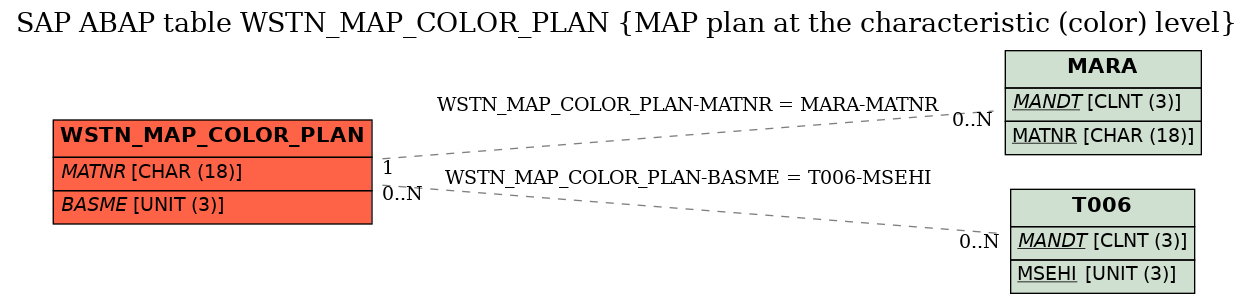

Foreign Keys
Source Table | Source Column | Foreign Table | Foreign Column | Dependency Factor | Cardinality left | Cardinality right | |
---|---|---|---|---|---|---|---|
1 | WSTN_MAP_COLOR_PLAN | BASME | T006 | MSEHI | |||
2 | WSTN_MAP_COLOR_PLAN | MATNR | MARA | MATNR | REF | 1 | CN |
History
Last changed by/on | SAP | 20020219 |
SAP Release Created in | 110 |
