SAP ABAP Table COSEQINF (Order: Additional fields for dialog table AFFLD)
Hierarchy
☛
BBPCRM (Software Component) BBPCRM
⤷ CRM-CIC (Application Component) Interaction Center WinClient
⤷ CO (Package) R/3 Application development: PP Production orders
⤷ CRM-CIC (Application Component) Interaction Center WinClient
⤷ CO (Package) R/3 Application development: PP Production orders
Basic Data
Table Category | INTTAB | Structure |

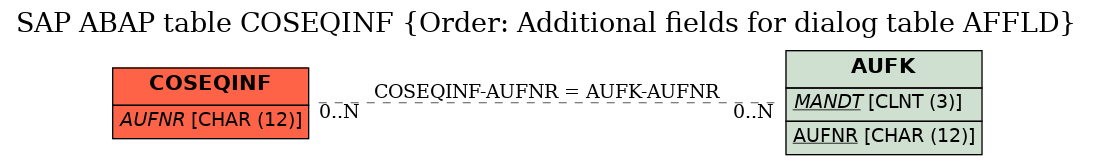

Structure | COSEQINF | Table Relationship Diagram |
Short Description | Order: Additional fields for dialog table AFFLD |
Delivery and Maintenance
Pool/cluster | ||
Delivery Class | ||
Data Browser/Table View Maintenance | Display/Maintenance Allowed with Restrictions |
Components
Field | Key | Data Element | Domain | Data Type |
Length | Decimal Places |
Short Description | Check table |
|
---|---|---|---|---|---|---|---|---|---|
1 | VORNR1 | VORNR1 | VORNR | CHAR | 4 | 0 | Number of the branch operation | ||
2 | VORNR2 | VORNR2 | VORNR | CHAR | 4 | 0 | Number of the return operation | ||
3 | TXTKZ | TXTKZ | FLAG | CHAR | 1 | 0 | Indicator: long text exists | ||
4 | INDBT | TABIX_D | TABIX | INT4 | 10 | 0 | Field defined as in SY-TABIX | ||
5 | AUFNR | AUFNR | AUFNR | CHAR | 12 | 0 | Order Number | AUFK | |
6 | FLG_LOE | FLG_SEQLOE | KREUZ | CHAR | 1 | 0 | Indicator: Sequence is deleted (printing) | ||
7 | COMP_RES | OCM_COMP_RES | OCM_COMP_RES | CHAR | 1 | 0 | OCM: Result of comparison of two order objects |
Foreign Keys
Source Table | Source Column | Foreign Table | Foreign Column | Dependency Factor | Cardinality left | Cardinality right | |
---|---|---|---|---|---|---|---|
1 | COSEQINF | AUFNR | AUFK | AUFNR |
History
Last changed by/on | SAP | 20130529 |
SAP Release Created in |
