SAP ABAP Table WBTR_ARROW (Arrwos beetwen nodes in ARS Transport landscape)
Hierarchy
☛
BBPCRM (Software Component) BBPCRM
⤷ CRM-MT-MAS-ARS (Application Component) Application Repository System
⤷ MAR_TM (Package) Mobile Application Repository TM
⤷ CRM-MT-MAS-ARS (Application Component) Application Repository System
⤷ MAR_TM (Package) Mobile Application Repository TM
Basic Data
Table Category | TRANSP | Transparent table |

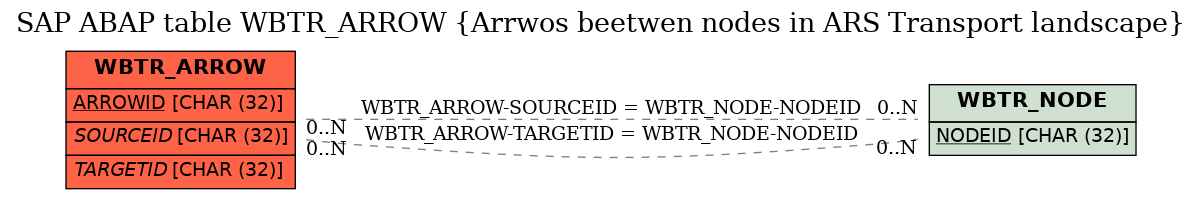

Transparent table | WBTR_ARROW | Table Relationship Diagram |
Short Description | Arrwos beetwen nodes in ARS Transport landscape |
Delivery and Maintenance
Pool/cluster | ||
Delivery Class | L | Table for storing temporary data, delivered empty |
Data Browser/Table View Maintenance | X | Display/Maintenance Allowed |
Components
Field | Key | Data Element | Domain | Data Type |
Length | Decimal Places |
Short Description | Check table |
|
---|---|---|---|---|---|---|---|---|---|
1 | ARROWID | WBARROWID | SYSUUID_C | CHAR | 32 | 0 | ID eines ARS Transportpfeils | ||
2 | NAME | WBLNAME | WBDNAME | CHAR | 80 | 0 | Name of ARS Transport Landscape Element (Long) | ||
3 | SOURCEID | WBARRSRC | SYSUUID_C | CHAR | 32 | 0 | Source Node of Transport Arrow (ARS TM) | WBTR_NODE | |
4 | TARGETID | WBARRTGT | SYSUUID_C | CHAR | 32 | 0 | Target Node of Transport Arrow in ARS Transport Landscape | WBTR_NODE | |
5 | ISACTIVE | WBACTFLAG | BOOLE | CHAR | 1 | 0 | Is Active ('X'= 'true,'' =false), ARS TM |
Foreign Keys
Source Table | Source Column | Foreign Table | Foreign Column | Dependency Factor | Cardinality left | Cardinality right | |
---|---|---|---|---|---|---|---|
1 | WBTR_ARROW | SOURCEID | WBTR_NODE | NODEID | |||
2 | WBTR_ARROW | TARGETID | WBTR_NODE | NODEID |
History
Last changed by/on | SAP | 20020829 |
SAP Release Created in | 30A |
