SAP ABAP Table USSDPHREPR (USS Documents: Attributes of Outgoing Relationships of PHIOs)
Hierarchy
☛
SEM-BW (Software Component) SEM-BW: Strategic Enterprise Management
⤷ FIN-SEM-SRM (Application Component) Stakeholder Relationship Management
⤷ USS (Package) SEM-SRM: Stakeholder Relationship Management
⤷ FIN-SEM-SRM (Application Component) Stakeholder Relationship Management
⤷ USS (Package) SEM-SRM: Stakeholder Relationship Management
Basic Data
Table Category | TRANSP | Transparent table |
Transparent table | USSDPHREPR | Table Relationship Diagram |
Short Description | USS Documents: Attributes of Outgoing Relationships of PHIOs |
Delivery and Maintenance
Pool/cluster | ||
Delivery Class | E | Control table, SAP and customer have separate key areas |
Data Browser/Table View Maintenance | Display/Maintenance Allowed with Restrictions |
Components
Field | Key | Data Element | Domain | Data Type |
Length | Decimal Places |
Short Description | Check table |
|
---|---|---|---|---|---|---|---|---|---|
1 | REP1_ID | SDOK_PHID | SDOK_DOCID | CHAR | 32 | 0 | Physical document | USSDPHRE | |
2 | OBJECT_ID | SDOK_REID | SDOK_DOCID | CHAR | 32 | 0 | Relationship between logical and physical documents | USSDPHRE | |
3 | PROP_NAME | SDOK_PROPN | SDOK_PROPN | CHAR | 25 | 0 | Attribute of a document or a relationship | SDOKPROP | |
4 | PROP_INDEX | SDOK_INDX | SYNUM05 | NUMC | 5 | 0 | KPro: General counter (uniqueness in DB) | ||
5 | REP1_CLASS | SDOK_CLASS | SDOK_CLASS | CHAR | 10 | 0 | Document class | SDOKPHCL | |
6 | IO_CLASS | SDOK_RECL | SDOK_CLASS | CHAR | 10 | 0 | Relationship class | SDOKRECL | |
7 | PROP_VALUE | SDOK_PROPV | SDOK_PROPV | CHAR | 64 | 0 | Attribute Value | ||
8 | PROP_SECI | SDOK_PROPI | SDOK_PROPI | CHAR | 12 | 0 | Attribute feature (shortened) |

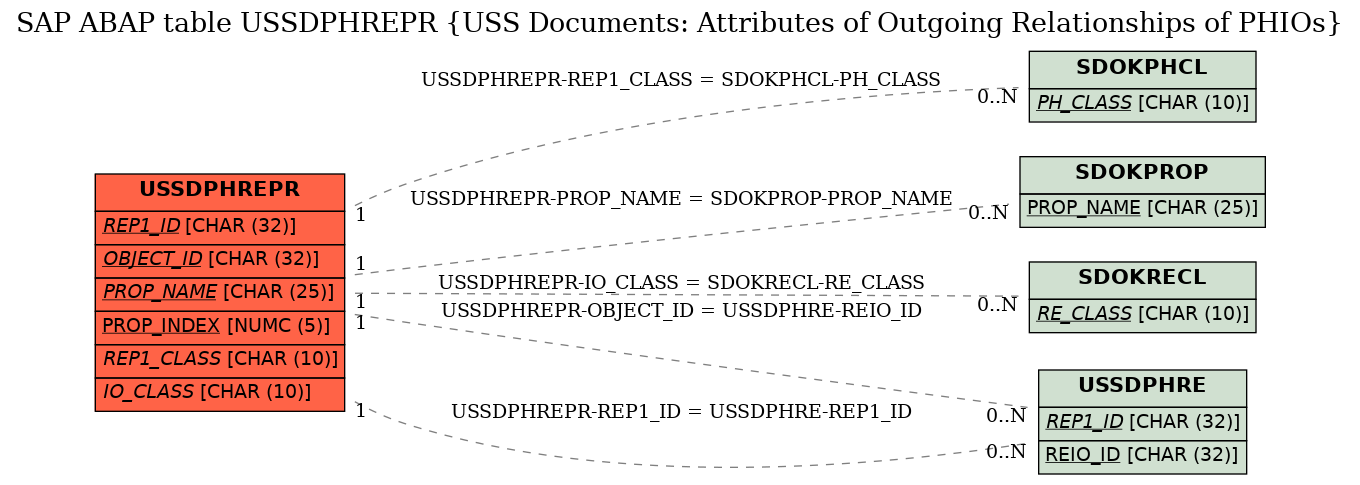

Foreign Keys
Source Table | Source Column | Foreign Table | Foreign Column | Dependency Factor | Cardinality left | Cardinality right | |
---|---|---|---|---|---|---|---|
1 | USSDPHREPR | IO_CLASS | SDOKRECL | RE_CLASS | REF | 1 | CN |
2 | USSDPHREPR | OBJECT_ID | USSDPHRE | REIO_ID | KEY | 1 | CN |
3 | USSDPHREPR | PROP_NAME | SDOKPROP | PROP_NAME | KEY | 1 | CN |
4 | USSDPHREPR | REP1_CLASS | SDOKPHCL | PH_CLASS | REF | 1 | CN |
5 | USSDPHREPR | REP1_ID | USSDPHRE | REP1_ID | KEY | 1 | CN |
History
Last changed by/on | SAP | 20041006 |
SAP Release Created in | 3.1A |
