SAP ABAP Table SWWVHEARET (Generated Table for View)

Basic Data

Table Category	VIEW	General view structure

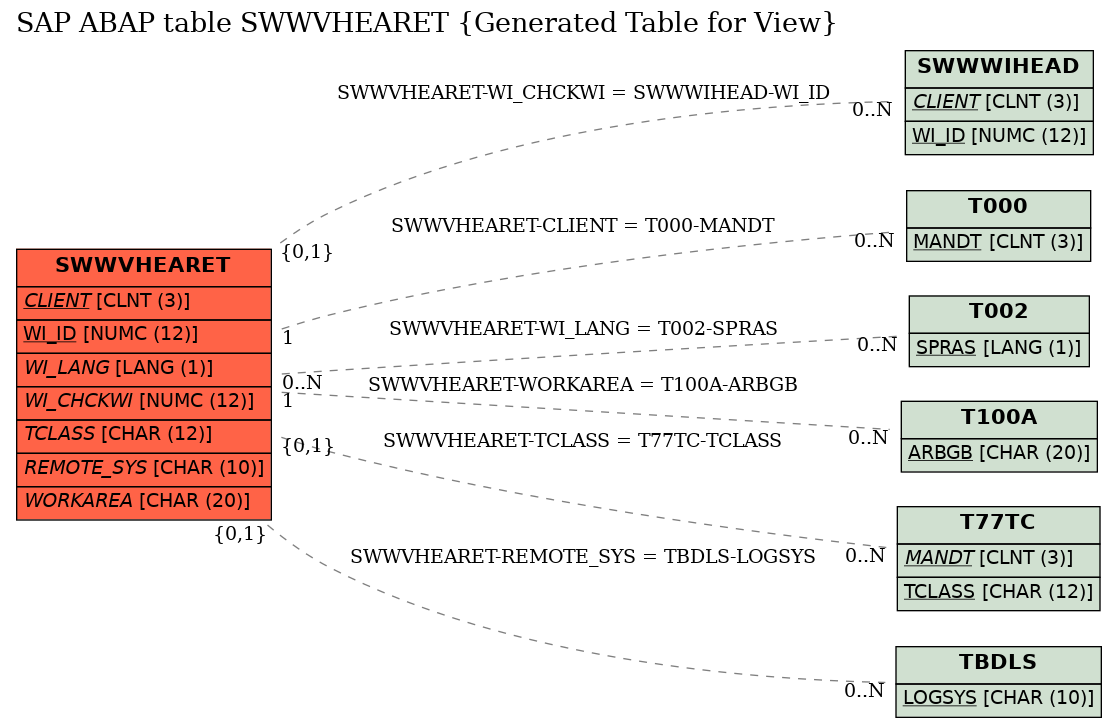

General view structure	SWWVHEARET	Table Relationship Diagram
Short Description	Generated Table for View

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	CLIENT	☑	MANDT	MANDT	CLNT	3	0	Client	T000
2	WI_ID	☑	SWW_WIID	SWW_WIID	NUMC	12	0	Work item ID
3	WI_TYPE	☐	SWW_WITYPE	SWW_WITYPE	CHAR	1	0	Work item type
4	WI_CREATOR	☐	SWW_OBJID	SWO_OBJID	CHAR	90	0	Creator of a work item
5	WI_LANG	☐	SWW_LANG	SPRAS	LANG	1	0	Language for Texts of a Work Item	T002
6	WI_TEXT	☐	SWW_WITEXT	TEXT120	CHAR	120	0	Work item text
7	WI_RHTEXT	☐	SWW_RHTEXT	CHAR40	CHAR	40	0	Short Text from Task
8	WI_STAT	☐	SWW_WISTAT	SWW_WISTAT	CHAR	12	0	Processing Status of a Work Item
9	WI_CD	☐	SWW_CD	SYDATS	DATS	8	0	Creation Date of Work Item
10	WI_CT	☐	SWW_CT	SYTIME	TIMS	6	0	Creation Time of Work Item
11	WI_AED	☐	SWW_AED	SYDATS	DATS	8	0	End Date of Work Item
12	WI_AAGENT	☐	SWW_AAGENT	SYCHAR12	CHAR	12	0	Actual Agent of Work Item
13	WI_AADDR	☐	SWWADDRESS	SYCHAR28	CHAR	28	0	Key for BOR Object of Type ADDRESS (SWWADDRKEY)
14	WI_CRUSER	☐	SWW_CRUSER	SYCHAR12	CHAR	12	0	User Who Created the Work Item
15	WI_CRADDR	☐	SWWADDRESS	SYCHAR28	CHAR	28	0	Key for BOR Object of Type ADDRESS (SWWADDRKEY)
16	WI_CHCKWI	☐	SWW_CHCKWI	SWW_WIID	NUMC	12	0	Superordinate Work Item	SWWWIHEAD
17	WI_CBFB	☐	SWW_CBFB	FUNCNAME	CHAR	30	0	Callback Function Module for Work Item Feedback
18	WI_RH_TASK	☐	SWW_TASK	HROBJEC_14	CHAR	14	0	Task ID
19	WI_PRIO	☐	SWW_PRIO	SWD_PRIORI	NUMC	1	0	Priority of a Work Item
20	WI_CONFIRM	☐	SWW_WICONF	XFELD	CHAR	1	0	Indicator showing that end of processing must be confirmed
21	WI_COMP_EV	☐	SWW_COMPEV	XFELD	CHAR	1	0	Indicator Denoting That Completion By Event Is Possible
22	WI_FORW_BY	☐	SWW_FORWBY	SYCHAR12	CHAR	12	0	(Last) forwarder of work item
23	WI_DISABLE	☐	SWW_DISABL	XFELD	CHAR	1	0	Flag: Work item is currently locked
24	WI_REJECT	☐	SWW_REJECT	XFELD	CHAR	1	0	Indicator Denoting that Work Item Can Be Rejected by Agent
25	TCLASS	☐	HR_TASK_CL	HR_TASK_CL	CHAR	12	0	Classification of Tasks	T77TC
26	NOTE_EXIST	☐	SWW_NOTEEX	XFELD	CHAR	1	0	Indicator Denoting that At Least One Note Exists for the WI
27	NOTIFY	☐	SWW_NOTIFY	XFELD	CHAR	1	0	Flag: Whether a Notification of Completion Is To Be Sent
28	RETRY_CNT	☐	SWW_RETCNT	SWW_COUNT2	NUMC	2	0	Retries for Work Items with Temporary Errors
29	MAX_RETRY	☐	SWW_RETCNT	SWW_COUNT2	NUMC	2	0	Retries for Work Items with Temporary Errors
30	RC_MODELED	☐	SWW_RCMODL	XFELD	CHAR	1	0	Indicator whether return code modeled in step definition
31	CB_DONE	☐	SWW_CBDONE	XFELD	CHAR	1	0	Status Transition for Executed Work Item Completed
32	HANDLE	☐	SWT_HANDL_	SWT_HANDLE	NUMC	12	0	ID of Workflow Trace
33	SYNCCHAIN	☐	SWW_CHAIN	XFELD	CHAR	1	0	Flag: WI Is Part of a Synchronous Processing Chain
34	NO_DEADL	☐	SWW_DEADFL	XFELD	CHAR	1	0	Flag Denoting Whether WI Contains Deadline Data
35	WI_DH_STAT	☐	SWW_WIDHST	SWW_WIDHST	NUMC	4	0	Deadline Status of a Work Item
36	WI_RELEASE	☐	SYSAPRL	SYCHAR04	CHAR	4	0	Release of SAP System
37	REMOTE_ID	☐	SWW_WIID	SWW_WIID	NUMC	12	0	Work item ID
38	REMOTE_SYS	☐	LOGSYS	LOGSYS	CHAR	10	0	Logical system	TBDLS
39	CODE	☐	SWO_RETURN	SWO_RETURN	NUMC	4	0	Exception for method
40	ERRORTYPE	☐	SWO_ERRTYP	SWO_ERRTYP	NUMC	1	0	Error type
41	NAME	☐	SWO_RCNAME	CHAR20	CHAR	20	0	Symbolic name for exception
42	WORKAREA	☐	ARBGB	ARBGB	CHAR	20	0	Application Area	T100A
43	MESSAGE	☐	SWO_MSGNR	NUMC3	NUMC	3	0	Message number
44	VARIABLE1	☐	SYMSGV	SYCHAR50	CHAR	50	0	Message Variable
45	VARIABLE2	☐	SYMSGV	SYCHAR50	CHAR	50	0	Message Variable
46	VARIABLE3	☐	SYMSGV	SYCHAR50	CHAR	50	0	Message Variable
47	VARIABLE4	☐	SYMSGV	SYCHAR50	CHAR	50	0	Message Variable
48	WI_ASD	☐	SWW_ASD	SYDATS	DATS	8	0	Current start date of work item
49	WI_AST	☐	SWW_AST	SYTIME	TIMS	6	0	Current start time of work item
50	WI_AET	☐	SWW_AET	SYTIME	TIMS	6	0	Current end time of work item
51	WLC_DISPL	☐	SWW_MODDIS	SWW_MODDIS	CHAR	1	0	Display of WI in WLC modeled in step definition

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	SWWVHEARET	CLIENT	T000	MANDT	KEY	1	CN
2	SWWVHEARET	REMOTE_SYS	TBDLS	LOGSYS	REF	C	CN
3	SWWVHEARET	TCLASS	T77TC	TCLASS	REF	C	CN
4	SWWVHEARET	WI_CHCKWI	SWWWIHEAD	WI_ID	REF	C	CN
5	SWWVHEARET	WI_LANG	T002	SPRAS
6	SWWVHEARET	WORKAREA	T100A	ARBGB	REF	1	CN

History

Last changed by/on	SAP	20130604
SAP Release Created in
