SAP ABAP Table SWFRXMPIHDR (XML Message Proxy: Instance Header Data)
Hierarchy
☛
SAP_BASIS (Software Component) SAP Basis Component
⤷ BC-XI-IS-BPE (Application Component) Business Process Engine
⤷ SWF_XMP (Package) Workflow: Proxies for XML Messages
⤷ BC-XI-IS-BPE (Application Component) Business Process Engine
⤷ SWF_XMP (Package) Workflow: Proxies for XML Messages
Basic Data
Table Category | TRANSP | Transparent table |

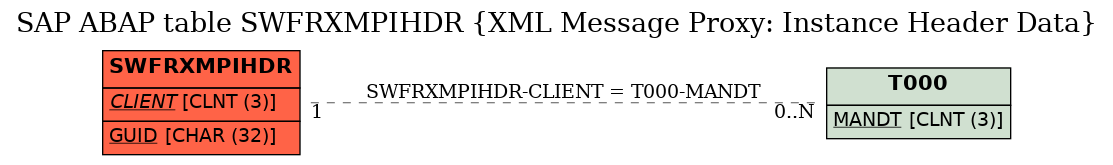

Transparent table | SWFRXMPIHDR | Table Relationship Diagram |
Short Description | XML Message Proxy: Instance Header Data |
Delivery and Maintenance
Pool/cluster | ||
Delivery Class | L | Table for storing temporary data, delivered empty |
Data Browser/Table View Maintenance | X | Display/Maintenance Allowed |
Components
Field | Key | Data Element | Domain | Data Type |
Length | Decimal Places |
Short Description | Check table |
|
---|---|---|---|---|---|---|---|---|---|
1 | CLIENT | MANDT | MANDT | CLNT | 3 | 0 | Client | T000 | |
2 | GUID | GUID_32 | SYSUUID_C | CHAR | 32 | 0 | GUID in 'CHAR' Format in Uppercase | ||
3 | .INCLUDE | 0 | 0 | XML Message Proxy: Definition Key | |||||
4 | XMP_NAME | SWFDXMPNAM | SWFDXMPNAM | CHAR | 30 | 0 | XML Object Type: Name | ||
5 | DELETED | XFELD | XFELD | CHAR | 1 | 0 | Checkbox |
Foreign Keys
Source Table | Source Column | Foreign Table | Foreign Column | Dependency Factor | Cardinality left | Cardinality right | |
---|---|---|---|---|---|---|---|
1 | SWFRXMPIHDR | CLIENT | T000 | MANDT | 1 | CN |
History
Last changed by/on | SAP | 20110908 |
SAP Release Created in | 700 |
