SAP ABAP Table SMW3FDBDOC (BDoc Type Specific Flow)
Hierarchy
☛
BBPCRM (Software Component) BBPCRM
⤷ CRM-MW-SRV (Application Component) Flow / Services
⤷ SMW3 (Package) CRM Flow II
⤷ CRM-MW-SRV (Application Component) Flow / Services
⤷ SMW3 (Package) CRM Flow II
Basic Data
Table Category | TRANSP | Transparent table |

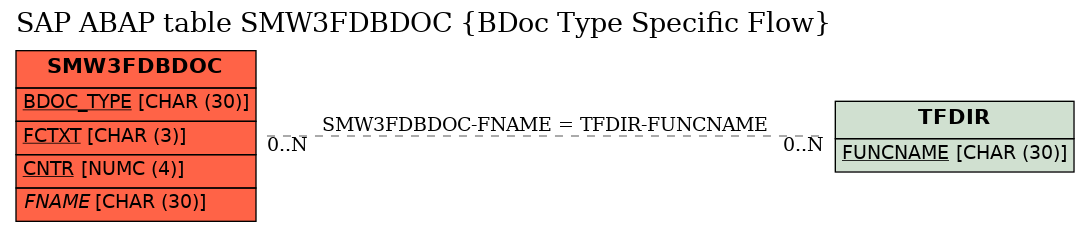

Transparent table | SMW3FDBDOC | Table Relationship Diagram |
Short Description | BDoc Type Specific Flow |
Delivery and Maintenance
Pool/cluster | ||
Delivery Class | E | Control table, SAP and customer have separate key areas |
Data Browser/Table View Maintenance | X | Display/Maintenance Allowed |
Components
Field | Key | Data Element | Domain | Data Type |
Length | Decimal Places |
Short Description | Check table |
|
---|---|---|---|---|---|---|---|---|---|
1 | BDOC_TYPE | SMOG_LNAME | SMOG_CHR30 | CHAR | 30 | 0 | Long name of Bdoc type | ||
2 | FCTXT | SMW3FCTXT | SMW3FCTXT | CHAR | 3 | 0 | Flow Context | ||
3 | CNTR | SMW3FDCNTR | NUMC4 | NUMC | 4 | 0 | Order Number for a Flow Service | ||
4 | SERVICE | SMOG_SRVID | SMOG_SRVID | CHAR | 32 | 0 | Service ID | * | |
5 | FNAME | SMW3SFUNC | FUNCNAME | CHAR | 30 | 0 | Flow Service Function Module | TFDIR |
Foreign Keys
Source Table | Source Column | Foreign Table | Foreign Column | Dependency Factor | Cardinality left | Cardinality right | |
---|---|---|---|---|---|---|---|
1 | SMW3FDBDOC | FNAME | TFDIR | FUNCNAME |
History
Last changed by/on | SAP | 20130604 |
SAP Release Created in | 30A |
