SAP ABAP Table SMOETROBJH (Administration console: Hierarchy definition of tree)

Hierarchy

☛ BBPCRM (Software Component) BBPCRM
   ⤷ CRM-MW-ADM (Application Component) Administration Console
     ⤷ SMOE (Package) AdminConsole

Basic Data

Table Category	TRANSP	Transparent table

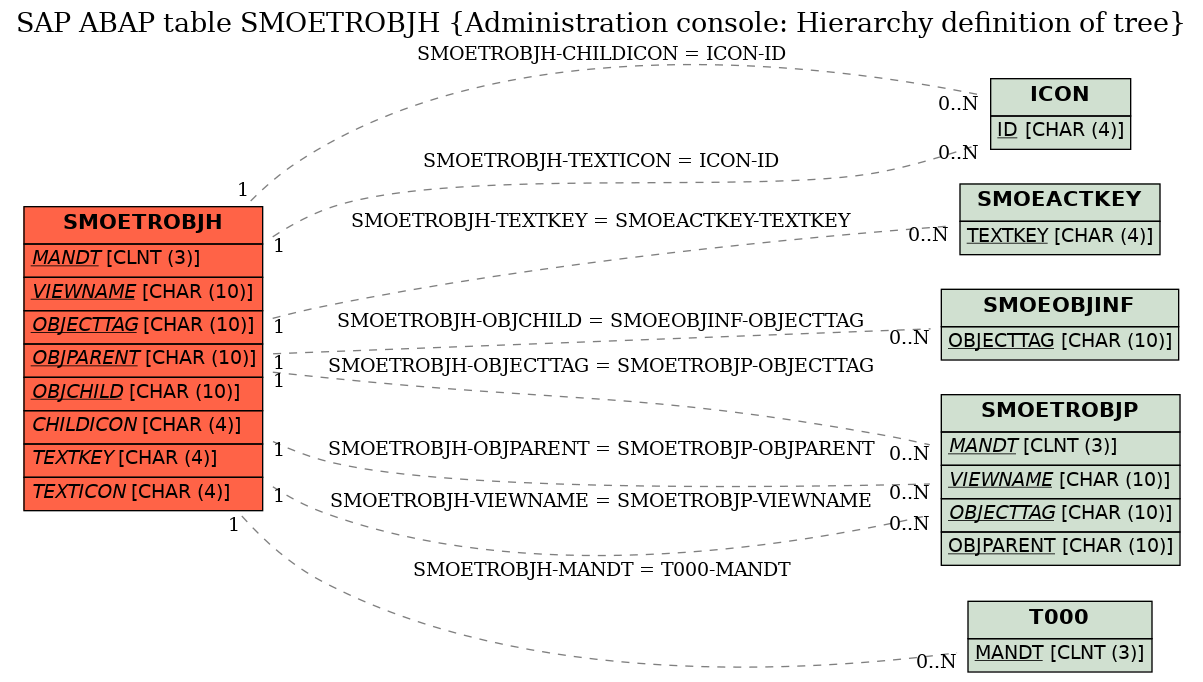

Transparent table	SMOETROBJH	Table Relationship Diagram
Short Description	Administration console: Hierarchy definition of tree

Delivery and Maintenance

Pool/cluster
Delivery Class	E	Control table, SAP and customer have separate key areas
Data Browser/Table View Maintenance	X	Display/Maintenance Allowed

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	MANDT	☑	MANDT	MANDT	CLNT	3	0	Client	T000
2	VIEWNAME	☑	SMO_TRVIEW	SMO_TRVIEW	CHAR	10	0	Administration console: Views of tree	SMOETROBJP
3	OBJECTTAG	☑	SMO_OBJROT	OBJTAGDOM	CHAR	10	0	Administration console: Root object for views of tree	SMOETROBJP
4	OBJPARENT	☑	SMO_OBJPAR	SMO_OBJPAR	CHAR	10	0	Administration console: Parent object for views of tree	SMOETROBJP
5	OBJCHILD	☑	SMO_OBJCHI	OBJTAGDOM	CHAR	10	0	Administration console: Child object for views of tree	SMOEOBJINF
6	CHILDICON	☐	ICNNAMEDE	ICON	CHAR	4	0	Admin Console: Icon Id for object of tree node	ICON
7	TEXTKEY	☐	SMOE_NKEY	SMOE_TKEY	CHAR	4	0	Admin Console: key for text of tree node	SMOEACTKEY
8	TEXTICON	☐	ICNNAMETX	ICON	CHAR	4	0	Admin Console: Icon Id for text of tree node	ICON

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	SMOETROBJH	CHILDICON	ICON	ID	REF	1	CN
2	SMOETROBJH	MANDT	T000	MANDT	KEY	1	CN
3	SMOETROBJH	OBJCHILD	SMOEOBJINF	OBJECTTAG	KEY	1	CN
4	SMOETROBJH	OBJECTTAG	SMOETROBJP	OBJECTTAG	KEY	1	CN
5	SMOETROBJH	OBJPARENT	SMOETROBJP	OBJPARENT	KEY	1	CN
6	SMOETROBJH	TEXTICON	ICON	ID	REF	1	CN
7	SMOETROBJH	TEXTKEY	SMOEACTKEY	TEXTKEY	KEY	1	CN
8	SMOETROBJH	VIEWNAME	SMOETROBJP	VIEWNAME	KEY	1	CN

History

Last changed by/on	SAP	20010619
SAP Release Created in	20C
