SAP ABAP Table SMO8_ATCH (Middleware Transaction Prsistent Attachements)
Hierarchy
☛
BBPCRM (Software Component) BBPCRM
⤷ CRM-MW-SRV (Application Component) Flow / Services
⤷ SMO8 (Package) Flow Control I
⤷ CRM-MW-SRV (Application Component) Flow / Services
⤷ SMO8 (Package) Flow Control I
Basic Data
Table Category | TRANSP | Transparent table |

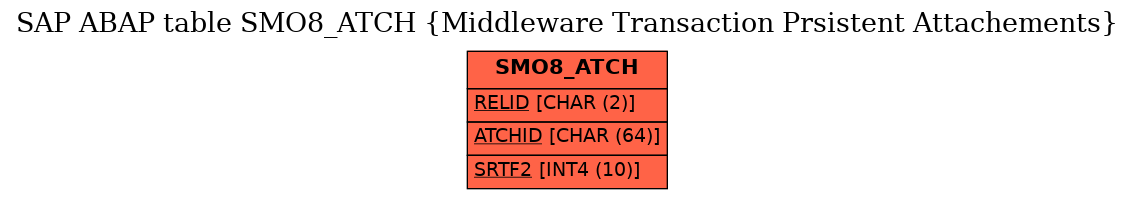

Transparent table | SMO8_ATCH | Table Relationship Diagram |
Short Description | Middleware Transaction Prsistent Attachements |
Delivery and Maintenance
Pool/cluster | ||
Delivery Class | L | Table for storing temporary data, delivered empty |
Data Browser/Table View Maintenance | Display/Maintenance Allowed with Restrictions |
Components
Field | Key | Data Element | Domain | Data Type |
Length | Decimal Places |
Short Description | Check table |
|
---|---|---|---|---|---|---|---|---|---|
1 | RELID | INDX_RELID | SYCHAR02 | CHAR | 2 | 0 | Region in IMPORT/EXPORT Data Table | ||
2 | ATCHID | SMO8_ATID | SMO8_ATID | CHAR | 64 | 0 | Attachment ID | ||
3 | SRTF2 | INDX_SRTF2 | SYBIN4 | INT4 | 10 | 0 | Next record counter in EXPORT/IMPORT data tables | ||
4 | TID | SMOG_TID | SMOG_GUID | CHAR | 32 | 0 | BDoc Message ID | ||
5 | CLUSTR | INDX_CLSTR | SYBIN2 | INT2 | 5 | 0 | Length field for user data in EXPORT/IMPORT tables | ||
6 | CLUSTD | INDX_CLUST | INDX_CLUST | LRAW | 2886 | 0 | Data field for IMPORT/EXPORT database tables |
History
Last changed by/on | SAP | 20010216 |
SAP Release Created in |
