SAP ABAP Table RSDDIM (Directory of dimensions)
Hierarchy
☛
SAP_BW (Software Component) SAP Business Warehouse
⤷ BW-WHM-MTD (Application Component) Metadata (Repository)
⤷ RSD (Package) BW: Data Basis InfoObjects and Core Services
⤷ BW-WHM-MTD (Application Component) Metadata (Repository)
⤷ RSD (Package) BW: Data Basis InfoObjects and Core Services
Basic Data
Table Category | TRANSP | Transparent table |
Transparent table | RSDDIM | Table Relationship Diagram |
Short Description | Directory of dimensions |
Delivery and Maintenance
Pool/cluster | ||
Delivery Class | E | Control table, SAP and customer have separate key areas |
Data Browser/Table View Maintenance | X | Display/Maintenance Allowed |
Components
Field | Key | Data Element | Domain | Data Type |
Length | Decimal Places |
Short Description | Check table |
|
---|---|---|---|---|---|---|---|---|---|
1 | DIMENSION | RSDIMENSION | RSDIMENSION | CHAR | 30 | 0 | Dimension | ||
2 | IOBJTP | RSIOBJTP | RSIOBJTP | CHAR | 3 | 0 | Type of an InfoObject | ||
3 | INFOAREA | RSINFOAREA | RSINFOAREA | CHAR | 30 | 0 | InfoArea | RSDAREA | |
4 | TABLNM | TABNAME | AS4TAB | CHAR | 30 | 0 | Table Name | DD02L | |
5 | NOBJECT | NROBJ | NROBJ | CHAR | 10 | 0 | Name of number range object | TNRO | |
6 | .INCLUDE | 0 | 0 | Include: Last changed by, time stamp in internal format | |||||
7 | TSTPNM | RSTSTPNM | XUBNAME | CHAR | 12 | 0 | Last changed by | USR02 | |
8 | TIMESTMP | RSTIMESTMP | TZNTSTMPS | DEC | 15 | 0 | UTC Time Stamp in Short Form (YYYYMMDDhhmmss) |

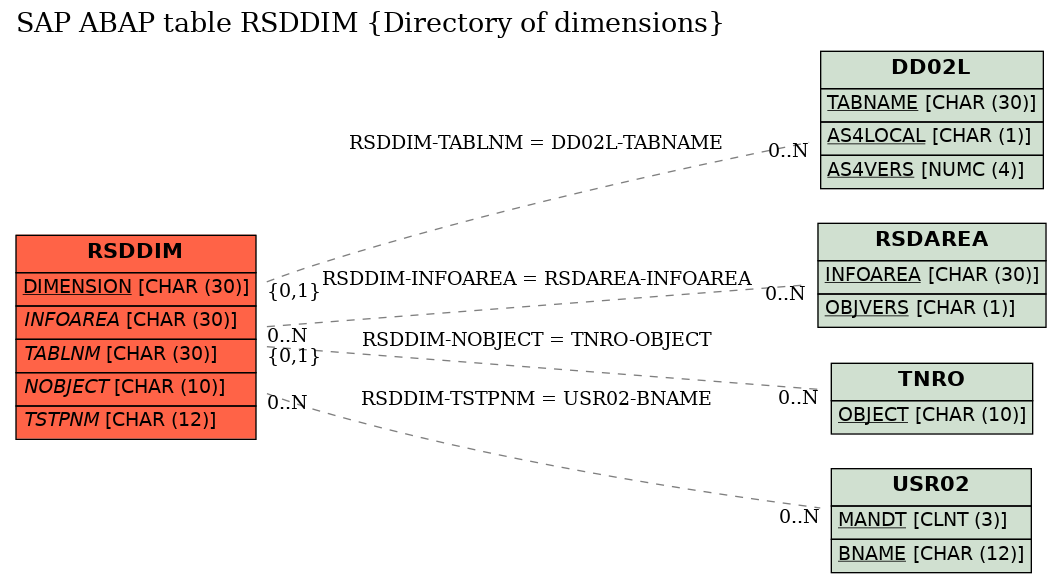

Foreign Keys
Source Table | Source Column | Foreign Table | Foreign Column | Dependency Factor | Cardinality left | Cardinality right | |
---|---|---|---|---|---|---|---|
1 | RSDDIM | INFOAREA | RSDAREA | INFOAREA | REF | CN | |
2 | RSDDIM | NOBJECT | TNRO | OBJECT | REF | C | |
3 | RSDDIM | TABLNM | DD02L | TABNAME | REF | C | |
4 | RSDDIM | TSTPNM | USR02 | BNAME | KEY | CN |
History
Last changed by/on | SAP | 20041216 |
SAP Release Created in |
