SAP ABAP Table RSD_S_IKYF_PRO (Data Target-specific Key Figure Properties)
Hierarchy
☛
SAP_BW (Software Component) SAP Business Warehouse
⤷ BW-WHM-MTD (Application Component) Metadata (Repository)
⤷ RSD (Package) BW: Data Basis InfoObjects and Core Services
⤷ BW-WHM-MTD (Application Component) Metadata (Repository)
⤷ RSD (Package) BW: Data Basis InfoObjects and Core Services
Basic Data
Table Category | INTTAB | Structure |

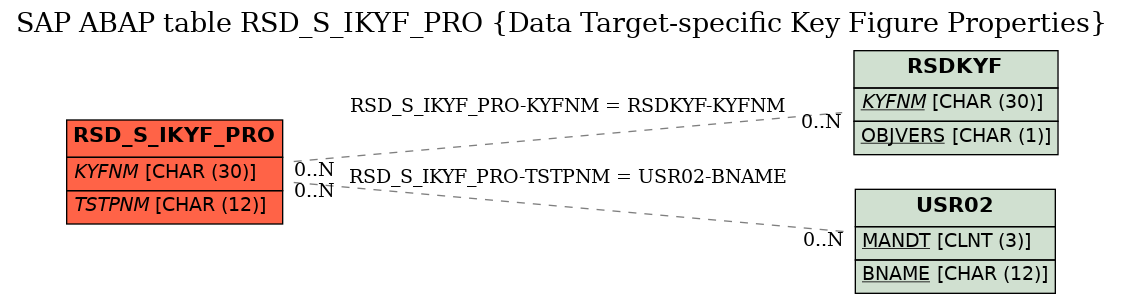

Structure | RSD_S_IKYF_PRO | Table Relationship Diagram |
Short Description | Data Target-specific Key Figure Properties |
Delivery and Maintenance
Pool/cluster | ||
Delivery Class | ||
Data Browser/Table View Maintenance | Display/Maintenance Allowed with Restrictions |
Components
Field | Key | Data Element | Domain | Data Type |
Length | Decimal Places |
Short Description | Check table |
|
---|---|---|---|---|---|---|---|---|---|
1 | INFOCUBE | RSINFOCUBE | RSINFOCUBE | CHAR | 30 | 0 | InfoCube | ||
2 | OBJVERS | RSOBJVERS | RSOBJVERS | CHAR | 1 | 0 | Object version | ||
3 | KYFNM | RSKYFNM | RSIOBJNM | CHAR | 30 | 0 | Key figure | RSDKYF | |
4 | HDBATTRNM | RSHDBATTRNM | RSHDBATTRNM | CHAR | 64 | 0 | SAP HANA DB Attribute Name | ||
5 | KYFDECIM | RSKYFDECIM | RSKYFDECIM | CHAR | 1 | 0 | Decimal places (of a key figure) | ||
6 | KYFPRSNT | RSKYFPRSNT | RSKYFPRSNT | CHAR | 1 | 0 | Display (of a key figure) | ||
7 | KYFNAV | RSKYFNAV | RSKYFNAV | CHAR | 1 | 0 | Navigation indicator for key figures | ||
8 | TSTPNM | RSTSTPNM | XUBNAME | CHAR | 12 | 0 | Last changed by | USR02 | |
9 | TIMESTMP | RSTIMESTMP | TZNTSTMPS | DEC | 15 | 0 | UTC Time Stamp in Short Form (YYYYMMDDhhmmss) | ||
10 | APPENDNM | RSAPPENDNM | ENHNAME | CHAR | 30 | 0 | Name of Append (Enhancement) |
Foreign Keys
Source Table | Source Column | Foreign Table | Foreign Column | Dependency Factor | Cardinality left | Cardinality right | |
---|---|---|---|---|---|---|---|
1 | RSD_S_IKYF_PRO | KYFNM | RSDKYF | KYFNM | KEY | CN | |
2 | RSD_S_IKYF_PRO | TSTPNM | USR02 | BNAME | KEY | CN |
History
Last changed by/on | SAP | 20130604 |
SAP Release Created in | 20B |
