SAP ABAP Table QMM_CONT1 (QMM: Table for Document Contents (Import/Export))
Hierarchy
☛
SAP_BASIS (Software Component) SAP Basis Component
⤷ KM-KW (Application Component) Knowledge Warehouse
⤷ SQM (Package) Temporary Development Class for QM Manuals
⤷ KM-KW (Application Component) Knowledge Warehouse
⤷ SQM (Package) Temporary Development Class for QM Manuals
Basic Data
Table Category | TRANSP | Transparent table |

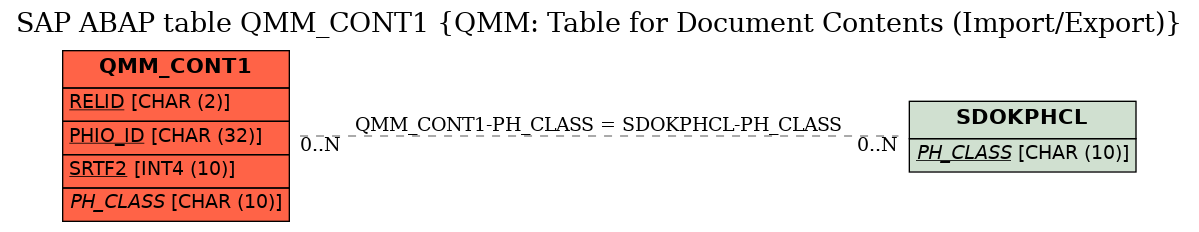

Transparent table | QMM_CONT1 | Table Relationship Diagram |
Short Description | QMM: Table for Document Contents (Import/Export) |
Delivery and Maintenance
Pool/cluster | ||
Delivery Class | E | Control table, SAP and customer have separate key areas |
Data Browser/Table View Maintenance | Display/Maintenance Allowed with Restrictions |
Components
Field | Key | Data Element | Domain | Data Type |
Length | Decimal Places |
Short Description | Check table |
|
---|---|---|---|---|---|---|---|---|---|
1 | RELID | INDX_RELID | SYCHAR02 | CHAR | 2 | 0 | Region in IMPORT/EXPORT Data Table | ||
2 | PHIO_ID | SDOK_PHID | SDOK_DOCID | CHAR | 32 | 0 | Physical document | ||
3 | SRTF2 | INDX_SRTF2 | SYBIN4 | INT4 | 10 | 0 | Next record counter in EXPORT/IMPORT data tables | ||
4 | PH_CLASS | SDOK_PHCL | SDOK_CLASS | CHAR | 10 | 0 | Physical document class | SDOKPHCL | |
5 | CLUSTR | INDX_CLSTR | SYBIN2 | INT2 | 5 | 0 | Length field for user data in EXPORT/IMPORT tables | ||
6 | CLUSTD | SDOK_DATAX | SDOK_DATAX | LRAW | 32000 | 0 | KPro: Document content (binary) |
Foreign Keys
Source Table | Source Column | Foreign Table | Foreign Column | Dependency Factor | Cardinality left | Cardinality right | |
---|---|---|---|---|---|---|---|
1 | QMM_CONT1 | PH_CLASS | SDOKPHCL | PH_CLASS | KEY | CN |
History
Last changed by/on | SAP | 20141013 |
SAP Release Created in | 50A |
