SAP ABAP Table FDT_CTLG_0000A (FDT: Catalog Structure)
Hierarchy
☛
SAP_BASIS (Software Component) SAP Basis Component
⤷ BC-SRV-BR (Application Component) BRFplus - ABAP-Based Business Rules
⤷ SFDT_CORE (Package) BRFplus: Core
⤷ BC-SRV-BR (Application Component) BRFplus - ABAP-Based Business Rules
⤷ SFDT_CORE (Package) BRFplus: Core
Basic Data
Table Category | TRANSP | Transparent table |

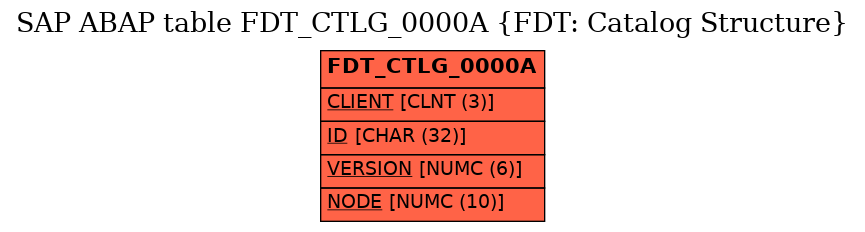

Transparent table | FDT_CTLG_0000A | Table Relationship Diagram |
Short Description | FDT: Catalog Structure |
Delivery and Maintenance
Pool/cluster | ||
Delivery Class | A | Application Table (Master- and Transaction Data) |
Data Browser/Table View Maintenance | Display/Maintenance Allowed with Restrictions |
Components
Field | Key | Data Element | Domain | Data Type |
Length | Decimal Places |
Short Description | Check table |
|
---|---|---|---|---|---|---|---|---|---|
1 | .INCLUDE | 0 | 0 | FDT: Key Structure for C-Tables with Version | |||||
2 | CLIENT | MANDT | MANDT | CLNT | 3 | 0 | Client | * | |
3 | .INCLUDE | 0 | 0 | FDT: Key Structure for S-Tables with Version | |||||
4 | ID | FDT_UUID | SYSUUID_C | CHAR | 32 | 0 | FDT: Universal Unique Identifier | ||
5 | VERSION | FDT_VERSION | NUMC | 6 | 0 | FDT: Version | |||
6 | .INCLUDE | 0 | 0 | FDT: Catalog Structure (Additional Key Include) | |||||
7 | NODE | FDT_NODE_ID | FDT_NUMERIC_ID | NUMC | 10 | 0 | FDT: ID of a node in a tree | ||
8 | .INCLUDE | 0 | 0 | FDT: Catalog Structure (Data Include) | |||||
9 | PARENT | FDT_NODE_ID | FDT_NUMERIC_ID | NUMC | 10 | 0 | FDT: ID of a node in a tree | ||
10 | SEQNR | INT4 | INT4 | INT4 | 10 | 0 | Natural number | ||
11 | NODE_TYPE | FDT_NODE_TYPE | FDT_NODE_TYPE | CHAR | 2 | 0 | FDT: Catalog Node Type | ||
12 | NODE_NAME | FDT_NODE_NAME | FDT_NODE_NAME | CHAR | 30 | 0 | FDT: Catalog Node Name | ||
13 | EXIT_CLASS | CLASSNAME | CLASSNAME | CHAR | 30 | 0 | Reference type | ||
14 | NODE_UUID | SYSUUID_C32 | SYSUUID_C32 | CHAR | 32 | 0 | 16 Byte UUID in 32 Characters (Hexadecimal Encoded) | ||
15 | NODE_ENH_TYPE | CHAR | 3 | 0 | |||||
16 | BIND_TEXT | BOOLE_D | BOOLE | CHAR | 1 | 0 | Data element for domain BOOLE: TRUE (='X') and FALSE (=' ') |
History
Last changed by/on | SAP | 20110908 |
SAP Release Created in | 711 |
