SAP ABAP Table DMCHP (Batch Record: Dialog Structure)
Hierarchy
☛
BBPCRM (Software Component) BBPCRM
⤷ PP-PI-PDO (Application Component) Process Data Documentation
⤷ VBP (Package) Batch record
⤷ PP-PI-PDO (Application Component) Process Data Documentation
⤷ VBP (Package) Batch record
Basic Data
Table Category | INTTAB | Structure |

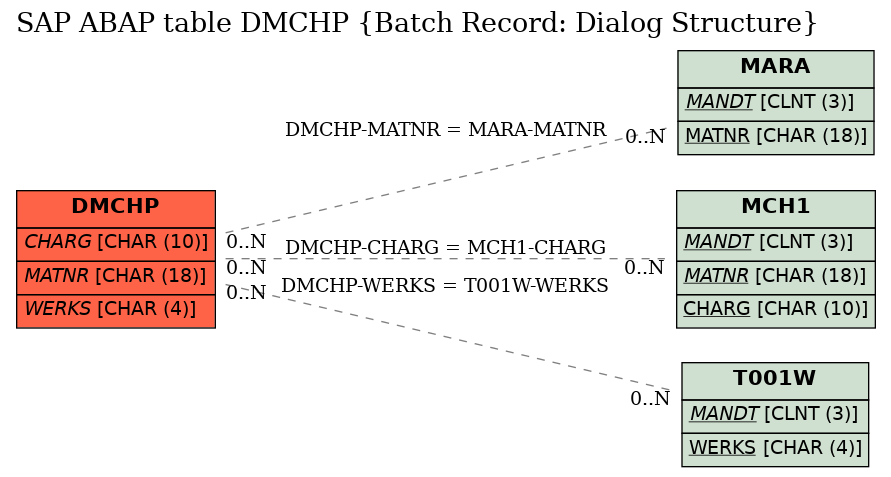

Structure | DMCHP | Table Relationship Diagram |
Short Description | Batch Record: Dialog Structure |
Delivery and Maintenance
Pool/cluster | ||
Delivery Class | ||
Data Browser/Table View Maintenance | Display/Maintenance Allowed with Restrictions |
Components
Field | Key | Data Element | Domain | Data Type |
Length | Decimal Places |
Short Description | Check table |
|
---|---|---|---|---|---|---|---|---|---|
1 | CHARG | CHARG_D | CHARG | CHAR | 10 | 0 | Batch Number | MCH1 | |
2 | MATNR | MATNR | MATNR | CHAR | 18 | 0 | Material Number | MARA | |
3 | WERKS | WERKS_D | WERKS | CHAR | 4 | 0 | Plant | T001W | |
4 | ACTIVITY | GUIFUNC | CUA_CODE | CHAR | 20 | 0 | GUI function |
Foreign Keys
Source Table | Source Column | Foreign Table | Foreign Column | Dependency Factor | Cardinality left | Cardinality right | |
---|---|---|---|---|---|---|---|
1 | DMCHP | CHARG | MCH1 | CHARG | |||
2 | DMCHP | MATNR | MARA | MATNR | |||
3 | DMCHP | WERKS | T001W | WERKS |
History
Last changed by/on | SAP | 20050411 |
SAP Release Created in |
