SAP ABAP Table CRMT_BUPA_IL_PARTNER (Buying Center Partner Attribute Structure)
Hierarchy
☛ BBPCRM (Software Component) BBPCRM
   ⤷ CRM-MD-BP-DAT (Application Component) CRM Specific Business Partner Data
     ⤷ CRM_BUPA_BOL (Package) Interaction Layer for Business Partner (From 5.1)
Basic Data
Table Category INTTAB    Structure

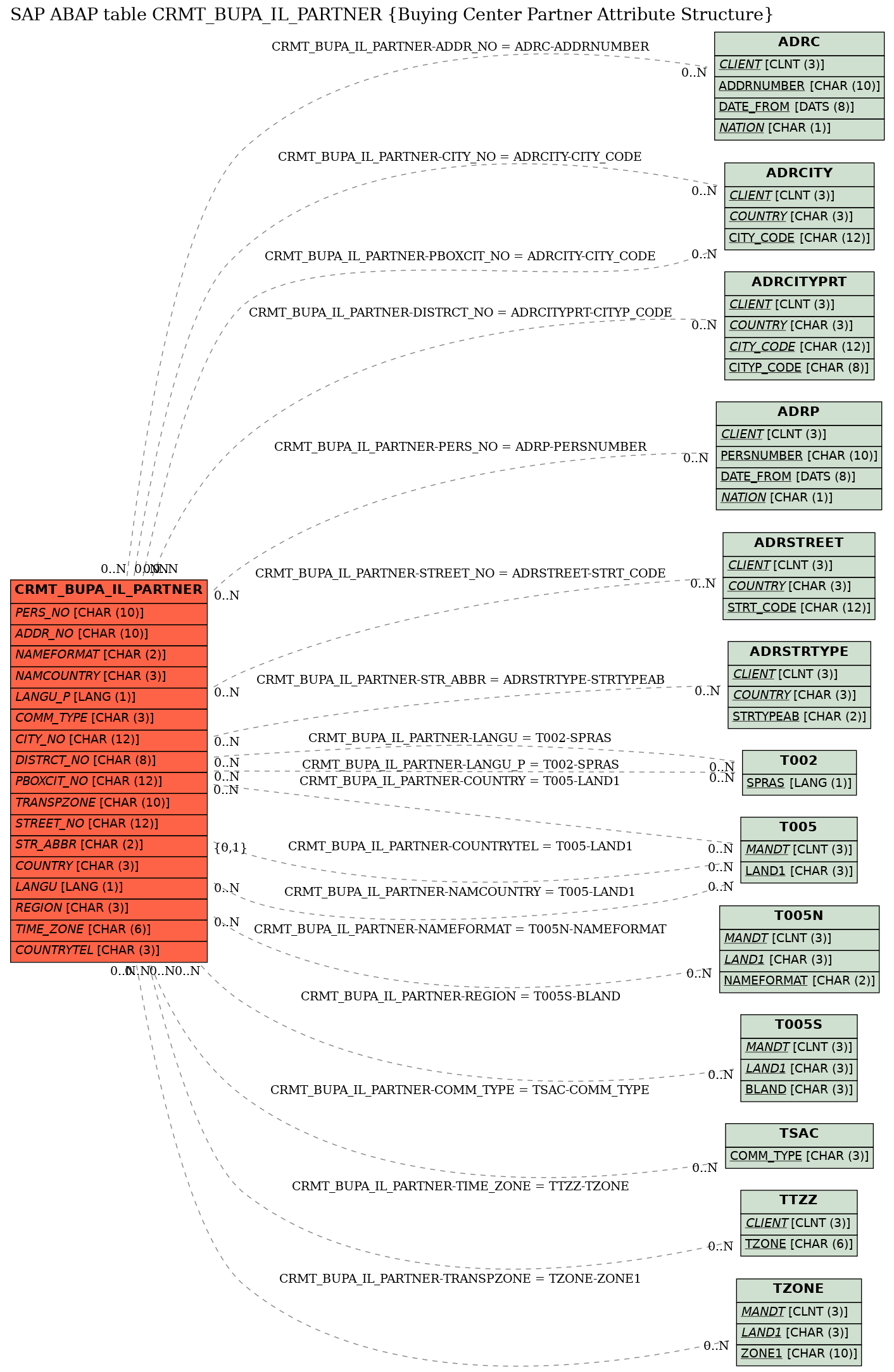

Structure CRMT_BUPA_IL_PARTNER   Table Relationship Diagram
Short Description Buying Center Partner Attribute Structure
Delivery and Maintenance
Pool/cluster
Delivery Class
Data Browser/Table View Maintenance     Display/Maintenance Allowed with Restrictions
Components

Field Key Data Element Domain Data
Type		 Length Decimal
Places		 Short Description Check
table
1 .INCLUDE       0   0   Transaction Partner - Fields
2 REF_GUID CRMT_OBJECT_GUID SYSUUID RAW 16   0   GUID of a CRM Order Object
3 REF_HANDLE CRMT_HANDLE   NUMC 10   0   Handle
4 REF_KIND CRMT_OBJECT_KIND CRM_OBJECTKIND CHAR 1   0   Object Type
5 .INCLUDE       0   0   Logical Key for Identifying a Partner
6 REF_PARTNER_HANDLE NUMC4 NUMC4 NUMC 4   0   Count parameters
7 REF_PARTNER_FCT CRMT_PARTNER_FCT COM_PARTNER_FCT CHAR 8   0   Partner Function
8 REF_PARTNER_NO CRMT_PARTNER_NUMBER CRM_PARTNER_NUMBER CHAR 20   0   Partner Number for Use Outside Partner Processing
9 REF_NO_TYPE CRMT_PARTNER_NO_TYPE COMT_PARTNER_NO_TYPE CHAR 2   0   Partner Number Type (e.g. GUID, Pers. No., ...), Internal
10 REF_DISPLAY_TYPE CRMT_PARTNER_DISPLAY_TYPE COMT_PARTNER_NO_TYPE CHAR 2   0   Object Type, for Which Partner Number is to be Shown
11 KIND_OF_ENTRY CRMT_PARTNER_KIND_OF_ENTRY CRM_PARTNER_KIND_OF_ENTRY CHAR 1   0   Source of a partner in a transaction
12 .INCLUDE       0   0   Externally Influenced Partner Data
13 .INCLUDE       0   0   Identification Data for a Partner
14 PARTNER_FCT CRMT_PARTNER_FCT COM_PARTNER_FCT CHAR 8   0   Partner Function
15 PARTNER_NO CRMT_PARTNER_NO CRM_PARTNER_NO CHAR 32   0   Partner Number
16 DISPLAY_TYPE CRMT_PARTNER_DISPLAY_TYPE COMT_PARTNER_NO_TYPE CHAR 2   0   Object Type, for Which Partner Number is to be Shown
17 NO_TYPE CRMT_PARTNER_NO_TYPE COMT_PARTNER_NO_TYPE CHAR 2   0   Partner Number Type (e.g. GUID, Pers. No., ...), Internal
18 MAINPARTNER CRMT_PARTNER_MAIN CRM_BOOLEAN CHAR 1   0   Main Partner (For Ambiguous Partner Functions)
19 RELATION_PARTNER BU_PARTNER_GUID SYSUUID RAW 16   0   Business Partner GUID
20 .INCLUDE       0   0   Address Data of a Partner
21 ADDR_NR AD_ADDRNUM AD_ADDRNUM CHAR 10   0   Address number *
22 ADDR_NP AD_PERSNUM AD_PERSNUM CHAR 10   0   Person number *
23 ADDR_TYPE AD_ADRTYPE AD_ADRTYPE CHAR 1   0   Address type (1=Organization, 2=Person, 3=Contact person)
24 ADDR_ORIGIN CRMT_ADDR_ORIGIN_MD CRM_ADDR_ORIGIN_MD CHAR 1   0   Origin of a Partner Address
25 STD_BP_ADDRESS CRMT_PARTNER_STD_BP_ADDRESS XFELD CHAR 1   0   Standard Business Partner Address (Depending on Addr.Type)
26 ADDR_OPERATION BU_OPERATION BU_OPERATION CHAR 6   0   Transaction for BP Address Determination *
27 .INCLUDE       0   0   Common Attributes for all Partner Functions
28 CALENDAR CRMT_PARTNER_CALENDAR CRM_BOOLEAN CHAR 1   0   Maintain Calendar for the Partner?
29 DISABLED CRMT_PARTNER_DISABLED CRM_BOOLEAN CHAR 1   0   No INBOX Selection for the Partner
30 ERROR_FLAG XFELD XFELD CHAR 1   0   Checkbox
31 PARTNER_SRC_SYS COMT_PARTNER_SRC_SYS LOGSYS CHAR 10   0   Logical System from Which Partner Originates *
32 .INCLU--AP       0   0   CRM Fields
33 .INCLUDE       0   0   EEW Include
34 PARTNER_DUMMY DUMMY DUMMY CHAR 1   0   Dummy function in length 1
35 COMP_PRD_DB CRMT_BOOLEAN CRM_BOOLEAN CHAR 1   0   Logical Variable
36 BP_PARTNER_GUID BU_PARTNER_GUID SYSUUID RAW 16   0   Business Partner GUID
37 PARTNER_PFT CRMT_PARTNER_PFT COM_PARTNER_PFT CHAR 4   0   Partner Function Category *
38 PFT_SUBTYPE CRMT_PARTNER_SUBTYPE CHAR4 CHAR 4   0   Partner Function Sub-Type
39 PARTNER_GUID COMT_PARTNER_GUID SYSUUID RAW 16   0   GUID for an Individual Partner
40 .INCLUDE       0   0   GUID Integration of the Partner Set
41 GUID CRMT_OBJECT_GUID SYSUUID RAW 16   0   GUID of a CRM Order Object
42 DELETE_FLAG CRMT_BOOLEAN CRM_BOOLEAN CHAR 1   0   Logical Variable
43 PARTN_FCT_DESCR TEXT30 TEXT30 CHAR 30   0   Text (30 Characters)
44 PARTN_PFT_DESCR TEXT30 TEXT30 CHAR 30   0   Text (30 Characters)
45 DESCRIPTION_NAME BU_DESCRIP BU_TEXT50 CHAR 50   0   Short name of business partner
46 ADDRESS_SHORT AD_LINE_S CHAR80 CHAR 80   0   One-line short form of formatted address
47 .INCLUDE       0   0   BAPI reference structure for addresses (contact person)
48 PERS_NO AD_PERSNUM AD_PERSNUM CHAR 10   0   Person number ADRP
49 ADDR_NO AD_ADDRNUM AD_ADDRNUM CHAR 10   0   Address number ADRC
50 TITLE_P AD_TITLETX TEXT30 CHAR 30   0   Title text
51 FIRSTNAME AD_NAMEFIR TEXT40 CHAR 40   0   First name
52 LASTNAME AD_NAMELAS TEXT40 CHAR 40   0   Last name
53 BIRTH_NAME AD_NAME2_P TEXT40 CHAR 40   0   Name of person at birth
54 MIDDLENAME AD_NAMEMID TEXT40 CHAR 40   0   Middle name or second forename of a person
55 SECONDNAME AD_NAMLAS2 TEXT40 CHAR 40   0   Second surname of a person
56 FULLNAME AD_NAMTEXT TEXT80 CHAR 80   0   Full Name of Person
57 FULLNAME_X AD_NAMCONV AD_NAMCONV CHAR 1   0   Status of Field 'Full Name' NAME_TEXT
58 TITLE_ACA1 AD_TITLE1T TEXT20 CHAR 20   0   Academic Title: Written Form
59 TITLE_ACA2 AD_TITLE2T TEXT20 CHAR 20   0   2nd academic title: written form
60 PREFIX1 AD_PREFIXT TEXT20 CHAR 20   0   Name prefix
61 PREFIX2 AD_PREFX2T TEXT20 CHAR 20   0   2nd name prefix
62 TITLE_SPPL AD_TITLEST TEXT20 CHAR 20   0   Name supplement, e.g. noble title (written form)
63 NICKNAME AD_NICKNAM TEXT40 CHAR 40   0   Nickname or name used
64 INITIALS AD_INITS CHAR10 CHAR 10   0   "Middle Initial" or personal initials
65 NAMEFORMAT AD_FORMAT AD_NAMFORM CHAR 2   0   Name format T005N
66 NAMCOUNTRY AD_NAMCTRY LAND1 CHAR 3   0   Country for name format rule T005
67 LANGU_P SPRAS SPRAS LANG 1   0   Language Key T002
68 LANGUP_ISO LAISO LAISO CHAR 2   0   2-Character SAP Language Code
69 SORT1_P AD_SORT1 CHAR20 CHAR 20   0   Search Term 1
70 SORT2_P AD_SORT2 CHAR20 CHAR 20   0   Search Term 2
71 DEPARTMENT AD_DPRTMNT TEXT40 CHAR 40   0   Department
72 FUNCTION AD_FNCTN TEXT40 CHAR 40   0   Function
73 BUILDING_P AD_BLDNG_P TEXT10 CHAR 10   0   Building (number or code)
74 FLOOR_P AD_FLOOR TEXT10 CHAR 10   0   Floor in building
75 ROOM_NO_P AD_ROOMNUM TEXT10 CHAR 10   0   Room or Appartment Number
76 INITS_SIG AD_ID_CODE TEXT10 CHAR 10   0   Short name for correspondence
77 INHOUSE_ML AD_IH_MAIL TEXT10 CHAR 10   0   Int. mail postal code
78 COMM_TYPE AD_COMM AD_COMM CHAR 3   0   Communication Method (Key) (Business Address Services) TSAC
79 TITLE AD_TITLETX TEXT30 CHAR 30   0   Title text
80 NAME AD_NAME1 TEXT40 CHAR 40   0   Name 1
81 NAME_2 AD_NAME2 TEXT40 CHAR 40   0   Name 2
82 NAME_3 AD_NAME3 TEXT40 CHAR 40   0   Name 3
83 NAME_4 AD_NAME4 TEXT40 CHAR 40   0   Name 4
84 C_O_NAME AD_NAME_CO TEXT40 CHAR 40   0   c/o name
85 CITY AD_CITY1 TEXT40 CHAR 40   0   City
86 DISTRICT AD_CITY2 TEXT40 CHAR 40   0   District
87 CITY_NO AD_CITYNUM CITY_CODE CHAR 12   0   City code for city/street file ADRCITY
88 DISTRCT_NO AD_CITYPNM CITYP_CODE CHAR 8   0   District code for City and Street file ADRCITYPRT
89 CHCKSTATUS AD_CHECKST AD_CHECKST CHAR 1   0   City file test status
90 POSTL_COD1 AD_PSTCD1 CHAR10 CHAR 10   0   City postal code
91 POSTL_COD2 AD_PSTCD2 CHAR10 CHAR 10   0   PO Box postal code
92 POSTL_COD3 AD_PSTCD3 CHAR10 CHAR 10   0   Company postal code (for large customers)
93 PO_BOX AD_POBX CHAR10 CHAR 10   0   PO Box
94 PO_BOX_CIT AD_POBXLOC TEXT40 CHAR 40   0   PO Box city
95 PBOXCIT_NO AD_CIT2NUM CITY_CODE CHAR 12   0   City PO box code (City file) ADRCITY
96 DELIV_DIS AD_PSTLAR TEXT15 CHAR 15   0   (Not Supported) Post Delivery District
97 TRANSPZONE LZONE ZONE CHAR 10   0   Transportation zone to or from which the goods are delivered TZONE
98 STREET AD_STREET TEXT60 CHAR 60   0   Street
99 STREET_NO AD_STRNUM STRT_CODE CHAR 12   0   Street Number for City/Street File ADRSTREET
100 STR_ABBR AD_STRABBR STRTYPEAB CHAR 2   0   (Not Supported) Abbreviation of Street Name ADRSTRTYPE
101 HOUSE_NO AD_HSNM1 TEXT10 CHAR 10   0   House Number
102 HOUSE_NO2 AD_HSNM2 TEXT10 CHAR 10   0   House number supplement
103 STR_SUPPL1 AD_STRSPP1 TEXT40 CHAR 40   0   Street 2
104 STR_SUPPL2 AD_STRSPP2 TEXT40 CHAR 40   0   Street 3
105 STR_SUPPL3 AD_STRSPP3 TEXT40 CHAR 40   0   Street 4
106 LOCATION AD_LCTN TEXT40 CHAR 40   0   Street 5
107 BUILDING AD_BLD_OLD TEXT10 CHAR 10   0   old: building (no. or abbreviation)
108 FLOOR AD_FLOOR TEXT10 CHAR 10   0   Floor in building
109 ROOM_NO AD_ROOMNUM TEXT10 CHAR 10   0   Room or Appartment Number
110 COUNTRY LAND1 LAND1 CHAR 3   0   Country Key T005
111 COUNTRYISO INTCA INTCA CHAR 2   0   Country ISO code
112 LANGU SPRAS SPRAS LANG 1   0   Language Key T002
113 LANGU_ISO LAISO LAISO CHAR 2   0   2-Character SAP Language Code
114 REGION REGIO REGIO CHAR 3   0   Region (State, Province, County) T005S
115 SORT1 AD_SORT1 CHAR20 CHAR 20   0   Search Term 1
116 SORT2 AD_SORT2 CHAR20 CHAR 20   0   Search Term 2
117 TIME_ZONE AD_TZONE TZNZONE CHAR 6   0   Address time zone TTZZ
118 TAXJURCODE AD_TXJCD AD_TXJCD CHAR 15   0   Tax Jurisdiction
119 ADR_NOTES AD_REMARK1 TEXT50 CHAR 50   0   Address notes
120 TEL1_NUMBR AD_TLNMBR1 CHAR30 CHAR 30   0   First telephone no.: dialling code+number
121 TEL1_EXT AD_TLXTNS1 CHAR10 CHAR 10   0   First Telephone No.: Extension
122 FAX_NUMBER AD_FXNMBR1 CHAR30 CHAR 30   0   First fax no.: dialling code+number
123 FAX_EXTENS AD_FXXTNS1 CHAR10 CHAR 10   0   First fax no.: extension
124 E_MAIL AD_SMTPADR AD_SMTPADR CHAR 241   0   E-Mail Address
125 BUILD_LONG AD_BLDNG TEXT20 CHAR 20   0   Building (Number or Code)
126 REGIOGROUP REGIOGROUP REGIOGROUP CHAR 8   0   Regional structure grouping *
127 HOME_CITY AD_CITY3 TEXT40 CHAR 40   0   City (different from postal city)
128 HOMECITYNO AD_CITYHNM CITY_CODE CHAR 12   0   Different city for city/street file *
129 PCODE1_EXT AD_PST1XT CHAR10 CHAR 10   0   (Not Supported)City Postal Code Extension, e.g. ZIP+4+2 Code
130 PCODE2_EXT AD_PST2XT CHAR10 CHAR 10   0   (Not Supported) PO Box Postal Code Extension
131 PCODE3_EXT AD_PST3XT CHAR10 CHAR 10   0   (Not Supported) Major Customer Postal Code Extension
132 PO_W_O_NO AD_POBXNUM XFELD CHAR 1   0   Flag: PO Box without number
133 PO_BOX_REG AD_POBXREG REGIO CHAR 3   0   Region for PO Box (Country, State, Province, ...) *
134 POBOX_CTRY AD_POBXCTY LAND1 CHAR 3   0   PO box country *
135 PO_CTRYISO INTCA INTCA CHAR 2   0   Country ISO code
136 DONT_USE_S AD_NO_USES AD_NO_USE CHAR 4   0   Street Address Undeliverable Flag *
137 DONT_USE_P AD_NO_USEP AD_NO_USE CHAR 4   0   PO Box Address Undeliverable Flag *
138 HOUSE_NO3 AD_HSNM3 TEXT10 CHAR 10   0   (Not supported) House Number Range
139 LANGU_CR_P AD_LANGUCR SPRAS LANG 1   0   Address record creation original language *
140 LANGUCPISO LAISO LAISO CHAR 2   0   2-Character SAP Language Code
141 PO_BOX_LOBBY AD_PO_BOX_LBY TEXT40 CHAR 40   0   PO Box Lobby
142 DELI_SERV_TYPE AD_DELIVERY_SERVICE_TYPE AD_DELIVERY_SERVICE_TYPE CHAR 4   0   Type of Delivery Service *
143 DELI_SERV_NUMBER AD_DELIVERY_SERVICE_NUMBER CHAR10 CHAR 10   0   Number of Delivery Service
144 COUNTY_CODE AD_CNTYNUM CNTY_CODE CHAR 8   0   County code for county *
145 COUNTY AD_COUNTY TEXT40 CHAR 40   0   County
146 TOWNSHIP_CODE AD_TWSHPNUM TWSHP_CODE CHAR 8   0   Township code for Township *
147 TOWNSHIP AD_TOWNSHIP TEXT40 CHAR 40   0   Township
148 .INCLU-TEL       0   0   BAPI Structure for Telephone Numbers (Bus. Address Services)
149 COUNTRYTEL AD_COMCTRY LAND1 CHAR 3   0   Country for telephone/fax number T005
150 COUNTRYISOTEL INTCA INTCA CHAR 2   0   Country ISO code
151 STD_NOTEL AD_FLGDFNR XFELD CHAR 1   0   Standard Sender Address in this Communication Type
152 TELEPHONETEL AD_TLNMBR CHAR30 CHAR 30   0   Telephone no.: dialling code+number
153 EXTENSIONTEL AD_TLXTNS CHAR10 CHAR 10   0   Telephone no.: Extension
154 TEL_NOTEL AD_TELNRLG CHAR30 CHAR 30   0   Complete number: dialling code+number+extension
155 CALLER_NOTEL AD_TELNRCL CHAR30 CHAR 30   0   Telephone number for determining caller
156 STD_RECIPTEL AD_FLGSMS AD_FLGSMS CHAR 1   0   Indicator: Telephone is SMS-Enabled
157 R_3_USERTEL AD_FLGMOB AD_FLGMOB CHAR 1   0   Indicator: Telephone is a Mobile Telephone
158 HOME_FLAGTEL AD_FLGHOME XFELD CHAR 1   0   Recipient address in this communication type (mail sys.grp)
159 CONSNUMBERTEL AD_CONSNUM NUMC3 NUMC 3   0   Sequence Number
160 ERRORFLAGTEL AD_ERRBAPI XFELD CHAR 1   0   Flag: Record not processed
161 FLG_NOUSETEL AD_FLNOUSE XFELD CHAR 1   0   Flag: This Communication Number is Not Used
162 VALID_FROMTEL AD_VALFROM TIMESTMP CHAR 14   0   Communication Data: Valid From (YYYYMMDDHHMMSS)
163 VALID_TOTEL AD_VALTO TIMESTAMP CHAR 14   0   Communication Data: Valid To (YYYYMMDDHHMMSS)
Foreign Keys
Source Table Source Column Foreign Table Foreign Column Dependency Factor Cardinality left Cardinality right
1 CRMT_BUPA_IL_PARTNER ADDR_NO ADRC ADDRNUMBER
2 CRMT_BUPA_IL_PARTNER CITY_NO ADRCITY CITY_CODE
3 CRMT_BUPA_IL_PARTNER COMM_TYPE TSAC COMM_TYPE
4 CRMT_BUPA_IL_PARTNER COUNTRY T005 LAND1
5 CRMT_BUPA_IL_PARTNER COUNTRYTEL T005 LAND1 REF C CN
6 CRMT_BUPA_IL_PARTNER DISTRCT_NO ADRCITYPRT CITYP_CODE
7 CRMT_BUPA_IL_PARTNER LANGU T002 SPRAS
8 CRMT_BUPA_IL_PARTNER LANGU_P T002 SPRAS
9 CRMT_BUPA_IL_PARTNER NAMCOUNTRY T005 LAND1
10 CRMT_BUPA_IL_PARTNER NAMEFORMAT T005N NAMEFORMAT
11 CRMT_BUPA_IL_PARTNER PBOXCIT_NO ADRCITY CITY_CODE
12 CRMT_BUPA_IL_PARTNER PERS_NO ADRP PERSNUMBER
13 CRMT_BUPA_IL_PARTNER REGION T005S BLAND
14 CRMT_BUPA_IL_PARTNER STREET_NO ADRSTREET STRT_CODE
15 CRMT_BUPA_IL_PARTNER STR_ABBR ADRSTRTYPE STRTYPEAB
16 CRMT_BUPA_IL_PARTNER TIME_ZONE TTZZ TZONE
17 CRMT_BUPA_IL_PARTNER TRANSPZONE TZONE ZONE1
History
Last changed by/on SAP  20141013
SAP Release Created in 510
