SAP ABAP Table CRMC_FS_LAYOUT (Description of view layout)

Hierarchy

☛ BBPCRM (Software Component) BBPCRM
   ⤷ CRM-PCC-FCT (Application Component) Fact Sheet
     ⤷ CRM_FACT_SHEET_FRAMEWORK (Package) Supporting Package for PCUI Fact Sheet Framework

Basic Data

Table Category	TRANSP	Transparent table

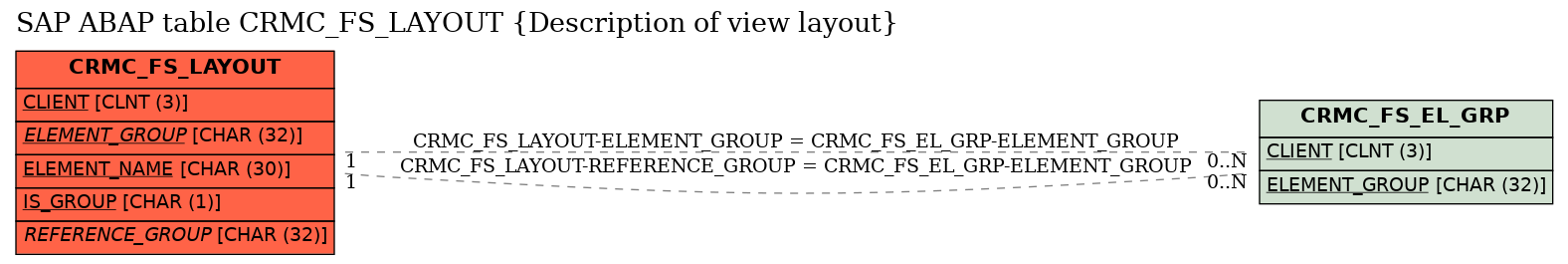

Transparent table	CRMC_FS_LAYOUT	Table Relationship Diagram
Short Description	Description of view layout

Delivery and Maintenance

Pool/cluster
Delivery Class	E	Control table, SAP and customer have separate key areas
Data Browser/Table View Maintenance	X	Display/Maintenance Allowed

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	CLIENT	☑	MANDT	MANDT	CLNT	3	0	Client	*
2	ELEMENT_GROUP	☑	CRMT_FS_ELEMENT_GROUP	CRM_FS_ELEMENT_GROUP	CHAR	32	0	Element group	CRMC_FS_EL_GRP
3	ELEMENT_NAME	☑	CRMT_FS_ELEMENT_NAME	FDNAME	CHAR	30	0	Element name	*
4	IS_GROUP	☑	CRMT_IS_GROUP	BOOLE	CHAR	1	0	Element is group or no group
5	REFERENCE_GROUP	☐	CRMT_FS_REFERENCE_GROUP	CRM_FS_ELEMENT_GROUP	CHAR	32	0	Referenced element group	CRMC_FS_EL_GRP
6	ORDER_NUMBER	☐	CRMT_FS_ORDER_NUMBER	CRM_FS_ORDER_NUMBER	NUMC	3	0	Order of element in layout
7	ELEMENT_PROPERTY	☐	CRMT_FS_ELEMENT_PROPERTY	CRM_FS_ELEMENT_PROPERTY	CHAR	2	0	Element property
8	LABEL_PROPERTY	☐	CRMT_FS_LABEL_PROPERTY	CRM_FS_LABEL_PROPERTY	CHAR	2	0	Label property
9	USE_DDIC_LABEL	☐	CRMT_FS_USE_DDIC_LABEL	CRM_FS_LABEL_TYPE	CHAR	1	0	Select DDIC label length or choose dynamic label
10	LAYOUT_TYPE	☐	CRMT_FS_LAYOUT_TYPE	CRM_FS_LAYOUT_TYPE	CHAR	1	0	Information visualization type
11	NEW_LINE	☐	CRMT_FS_NEW_LINE	BOOLE	CHAR	1	0	Element starts in new line
12	ALONE_IN_LINE	☐	CRMT_FS_ALONE_IN_LINE	BOOLE	CHAR	1	0	Element is the only one in line
13	WIDTH	☐	CRMT_FS_WIDTH	CRM_FS_WIDTH	CHAR	10	0	Element width
14	HEIGHT	☐	CRMT_FS_HEIGHT	CRM_FS_HEIGHT	CHAR	10	0	Element height
15	SUPPRESSHYPERLNK	☐	CRMT_FS_SUPRESS_HYPERLINK	BOOLE	CHAR	1	0	Suppress hyperlink
16	USED_FOR_SORTING	☐	CRMT_FS_USED_FOR_SORTING	BOOLE	CHAR	1	0	Element used for sorting
17	URL_OBJECT_TYPE	☐	CRMT_PRT_OTYPE	CRMT_PRT_OTYPE	CHAR	20	0	Object Type for Navigation	*
18	URL_METHOD	☐	CRMT_PRT_MTD	CRMT_PRT_MTD	CHAR	20	0	Method for Navigation	*
19	URL_ENTRYPOINT	☐	CRMT_FS_URL_ENTRYPOINT	CRM_BSP_EVENT	CHAR	20	0	Name of tab in ODP as target for navigation	*
20	URL_FIELDNAMEID	☐	CRMT_FS_URL_FIELDNAMEID	FDNAME	CHAR	30	0	Contains field name of field containing CRM object ID	*
21	URL_FIELDNAMEOT	☐	CRMT_FS_URL_FIELDNAMEOT	FDNAME	CHAR	30	0	Contains fields name of field containing CRM object type	*
22	URL_FIELDNAMEMD	☐	CRMT_FS_URL_FIELDNAMEMD	FDNAME	CHAR	30	0	Contains field name of field containing CRM method	*
23	URL_FIELDNAMEEP	☐	CRMT_FS_URL_FIELDNAMEEP	FDNAME	CHAR	30	0	Contains name of field containing entry point (tab name)	*
24	URL_FNOTISBOR	☐	CRMT_FS_URL_FNOTISBOR	BOOLE	CHAR	1	0	Object type field contains BOR type, else CRM object type
25	TEXT_KEY	☐	CRMT_FS_TEXT_KEY		CHAR	32	0	Key in text table

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	CRMC_FS_LAYOUT	ELEMENT_GROUP	CRMC_FS_EL_GRP	ELEMENT_GROUP	KEY	1	CN
2	CRMC_FS_LAYOUT	REFERENCE_GROUP	CRMC_FS_EL_GRP	ELEMENT_GROUP	KEY	1	CN

History

Last changed by/on	SAP	20050115
SAP Release Created in	500
