SAP ABAP Table CHIP_PFCG_MAP (Assignment of Page to PFCG Menu Entry)
Hierarchy
☛
SAP_UI (Software Component) User Interface Technology
⤷ BC-WD-ABA-PB (Application Component) WD ABAP Page Builder
⤷ SWDP_CCP_WD_PFCG_UI (Package) Web Dynpro ABAP: CCP PFCG Integration
⤷ BC-WD-ABA-PB (Application Component) WD ABAP Page Builder
⤷ SWDP_CCP_WD_PFCG_UI (Package) Web Dynpro ABAP: CCP PFCG Integration
Basic Data
Table Category | TRANSP | Transparent table |

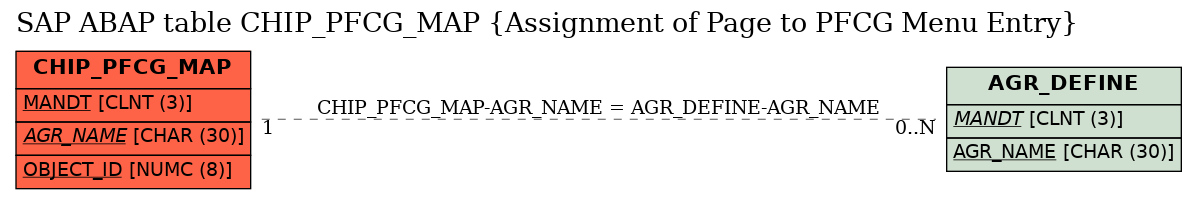

Transparent table | CHIP_PFCG_MAP | Table Relationship Diagram |
Short Description | Assignment of Page to PFCG Menu Entry |
Delivery and Maintenance
Pool/cluster | ||
Delivery Class | E | Control table, SAP and customer have separate key areas |
Data Browser/Table View Maintenance | Display/Maintenance Allowed with Restrictions |
Components
Field | Key | Data Element | Domain | Data Type |
Length | Decimal Places |
Short Description | Check table |
|
---|---|---|---|---|---|---|---|---|---|
1 | MANDT | MANDT | MANDT | CLNT | 3 | 0 | Client | * | |
2 | AGR_NAME | AGR_NAME | AGR_NAME | CHAR | 30 | 0 | Role Name | AGR_DEFINE | |
3 | OBJECT_ID | MENU_NUM_8 | NUM08 | NUMC | 8 | 0 | Counter for Menu ID | ||
4 | CONFIG_ID | WDY_CONFIG_ID | WDY_CONFIG_ID | CHAR | 32 | 0 | Configuration Identification | ||
5 | CONFIG_TYPE | WDY_CONFIG_TYPE | WDY_CONFIG_TYPE | NUMC | 2 | 0 | Type of Web Dynpro Configuration | ||
6 | CONFIG_VAR | WDY_CONFIG_VAR | WDY_CONFIG_VAR | CHAR | 6 | 0 | Web Dynpro: Configuration of Additional Variant | ||
7 | PERS_SCOPE | WDR_PERS_SCOPE | WDR_PERS_SCOPE | INT1 | 3 | 0 | Web Dynpro: Personalization Range | ||
8 | TO_BE_DELETED | WDY_BOOLEAN | WDY_BOOLEAN | CHAR | 1 | 0 | Replacement for Real Boolean Type: 'X' == True '' == False |
Foreign Keys
Source Table | Source Column | Foreign Table | Foreign Column | Dependency Factor | Cardinality left | Cardinality right | |
---|---|---|---|---|---|---|---|
1 | CHIP_PFCG_MAP | AGR_NAME | AGR_DEFINE | AGR_NAME | KEY | 1 | CN |
History
Last changed by/on | SAP | 20130604 |
SAP Release Created in | 703 |
